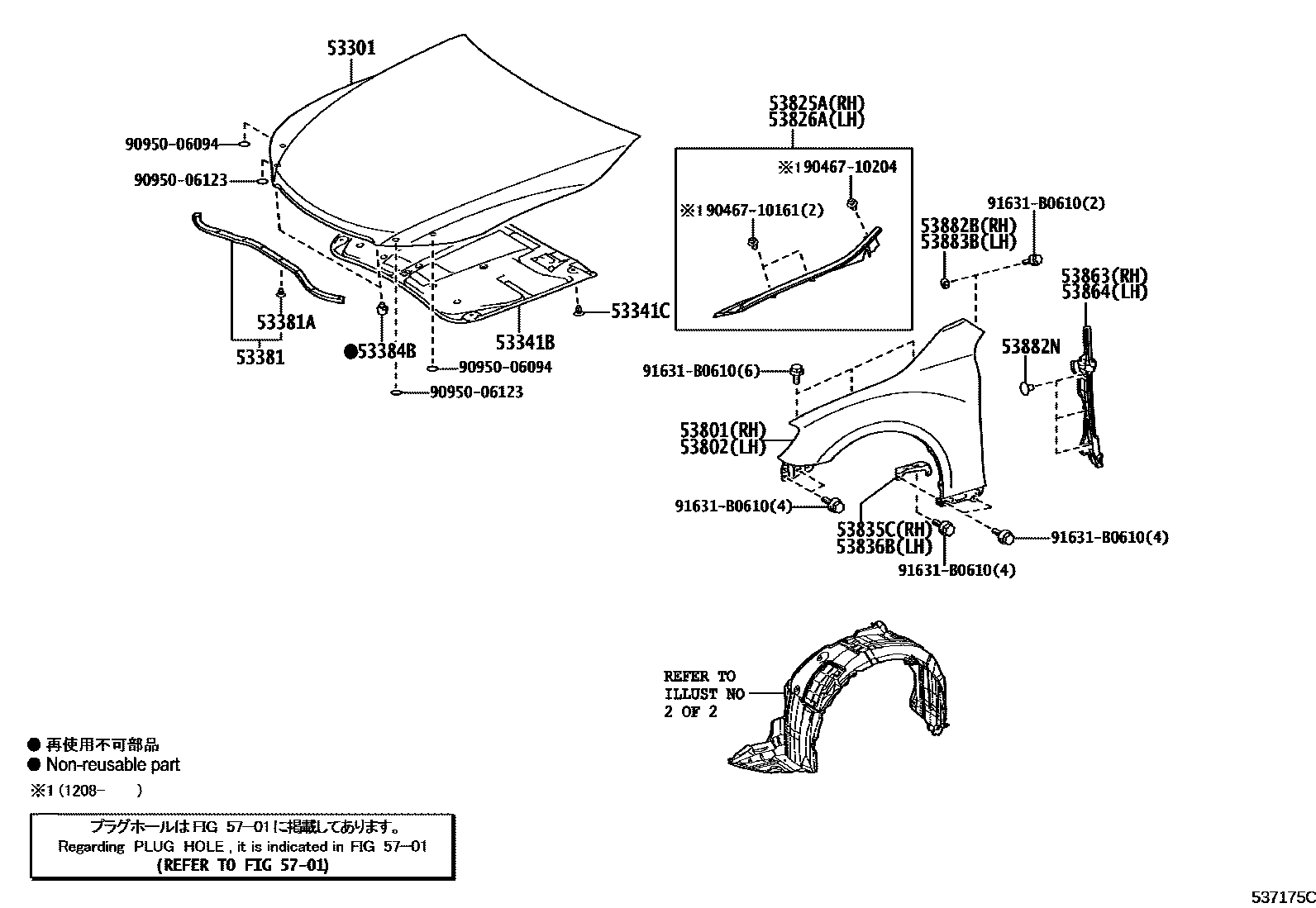

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-22430iGRX130201112-201208

53341BINSULATOR, HOOD

main53341-22190iGRX130201112-201208

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iGRX130201112-201208

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22200iGRX130201112-201208

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iGRX130201112-201208

53384BCUSHION, HOOD, CENTER

main53384-22080×2iGRX130201112-201208

53801FENDER SUB-ASSY, FRONT RH

main53811-22A20iGRX130201112-201208

53802FENDER SUB-ASSY, FRONT LH

main53812-22A20iGRX130201112-201208

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-22080iGRX130201112-201208

main53807-22081iGRX130201605

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-22080iGRX130201112-201208

main53808-22081iGRX130201605

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-22090iGRX130201112-201208

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-22070iGRX130201112-201208

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-22060iGRX130201112-201208

53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH

main53864-22060iGRX130201112-201208

53882BSEAL, FRONT FENDER, RH

main53882-30030iGRX130201112-201208

53882NCLIP(FOR FRONT FENDER SEAL)

main53857-47011×6iGRX130201112-201208

53883BSEAL, FRONT FENDER, LH

main53882-30030iGRX130201112-201208

5701

9046710161

main90467-10161

9046710204

main90467-10204

9095006094

main90950-06094

9095006123

main90950-06123

91631B0610

main91631-B0610

23 parts on this diagram · 2 diagrams in section
