RADIATOR GRILLE

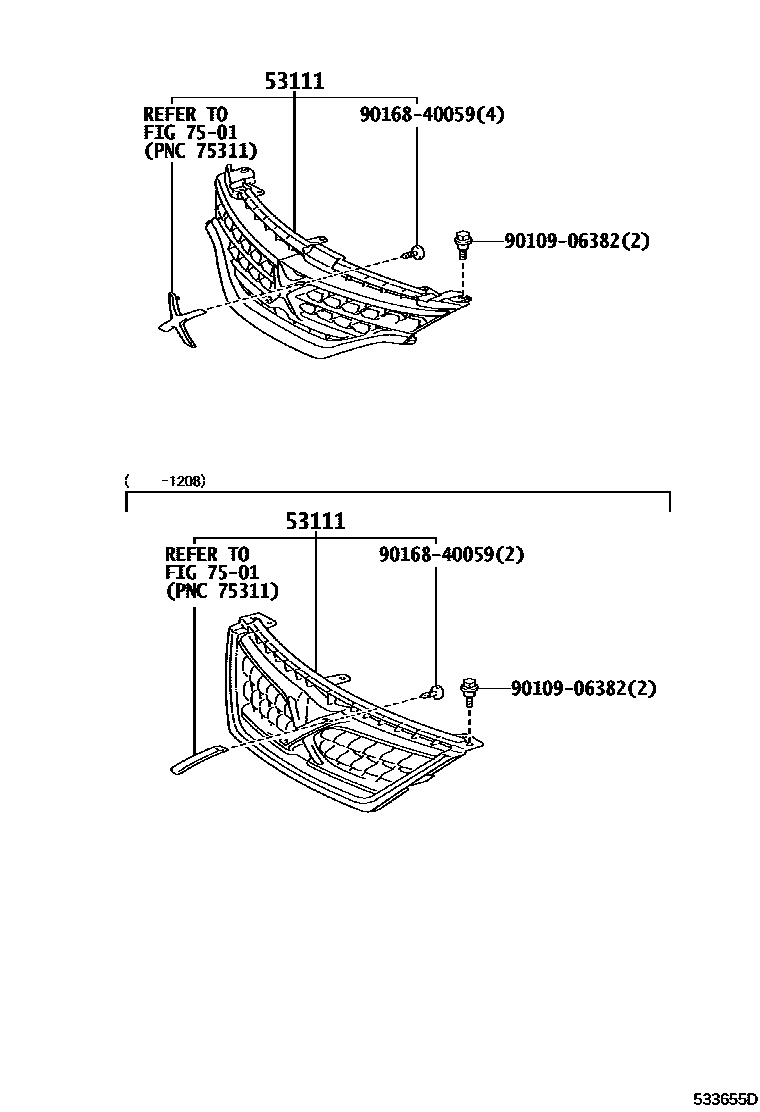

Parts diagram

53111GRILLE, RADIATOR

main53101-22670i201112-201208

PLATED

main53101-22730i201208-201611

PLATED

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906382

main90109-06382

9016840059

main90168-40059

4 parts on this diagram · 1 diagram in section
