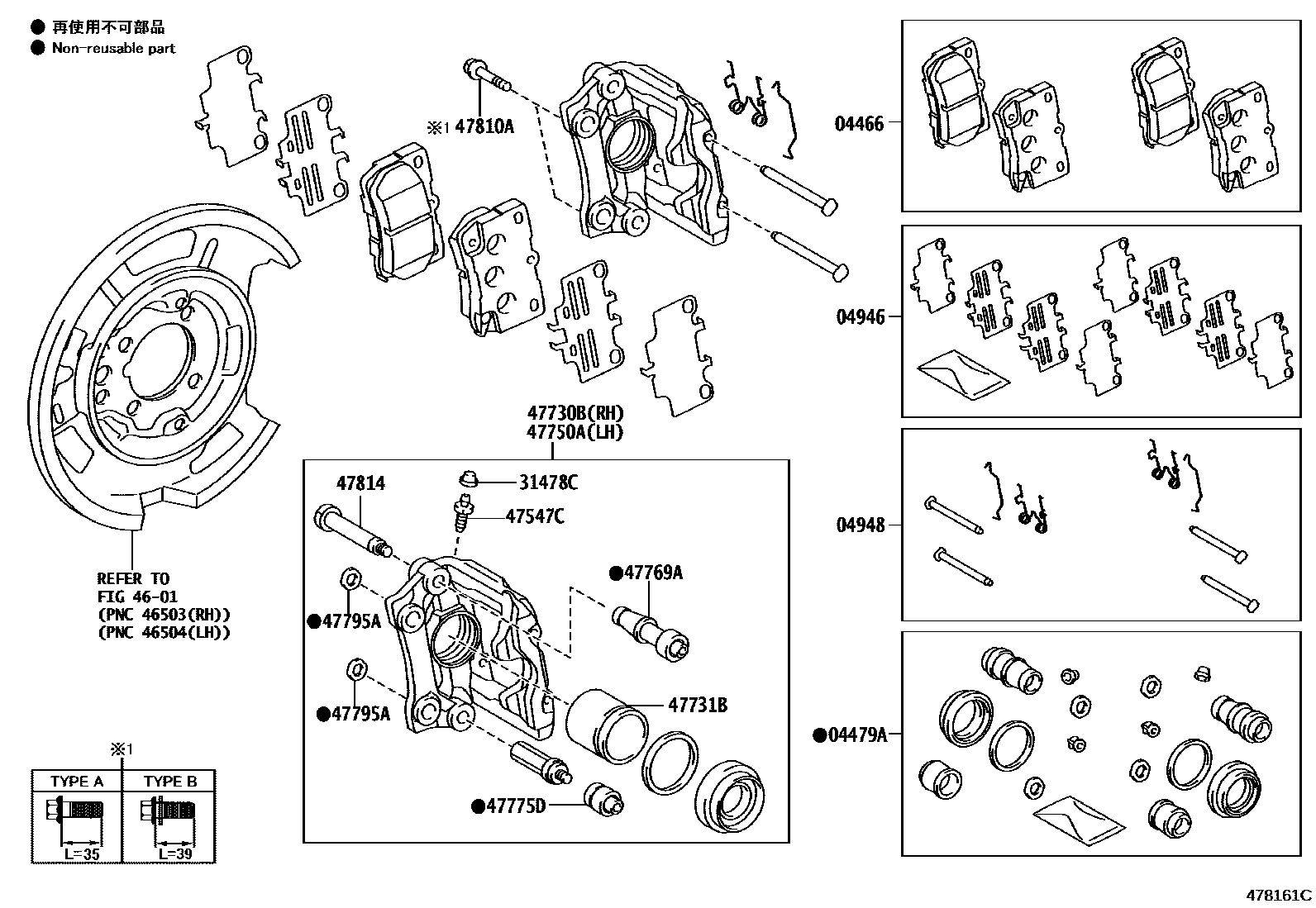

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30230iGRX130201112-201406

MARK AK NS254

main04466-30330iGRX130201406-201611

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-53070iGRX130201112-201406

main04479-53090iGRX130201406-201611

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30110iGRX130201112-201406

main04946-47080iGRX130201406-201611

04948FITTING KIT, DISC BRAKE, REAR

main04948-30220iGRX130201112-201406

main04948-30240iGRX130201406-201611

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGRX130201112-201611

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGRX130201406-201611

main47547-27030iGRX130201112-201406

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-30370iGRX130201212-201406

PNC 47810A=TYPE B

main47830-30420iGRX130201406-201611

main47830-53051iGRX130201112-201208

main47830-53051iGRX130201208-201212

PNC 47810A=TYPE A

47731BPISTON, REAR DISC BRAKE

main47831-30300iGRX130201112-201611

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30370iGRX130201212-201406

PNC 47810A=TYPE B

main47850-30420iGRX130201406-201611

main47850-53051iGRX130201208-201212

PNC 47810A=TYPE A

main47850-53051iGRX130201112-201208

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300iGRX130201112-201406

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341iGRX130201112-201406

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300iGRX130201112-201611

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525iGRX130201112-201208

main90105-10525iGRX130201208-201212

TYPE A:REFER ILLUST.

main90119-12416iGRX130201212-201611

TYPE B:REFER ILLUST.

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300iGRX130201112-201406

main47814-33240iGRX130201406-201611

15 parts on this diagram · 2 diagrams in section
