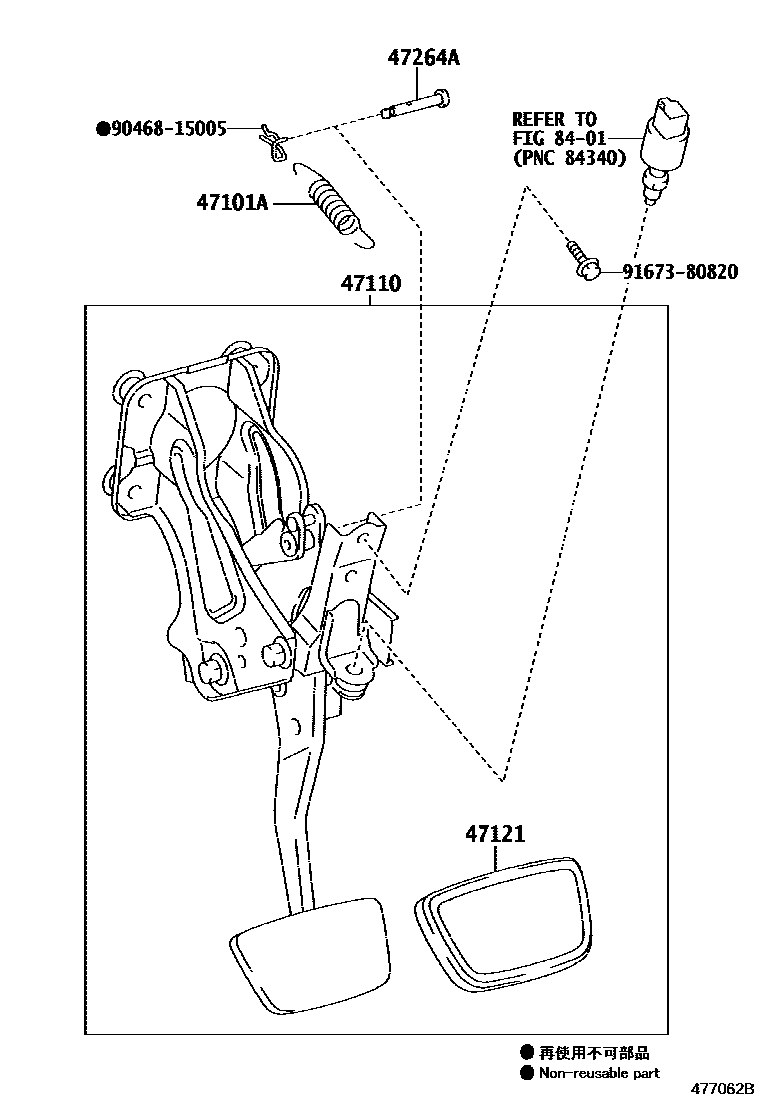

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iGRX130201112-201208

47110SUPPORT ASSY, BRAKE PEDAL

main47110-22451supersedes 47110-30453iGRX130201112-201208

S PACKAGE

47121PAD, BRAKE PEDAL

main47121-22040supersedes 47121-50020iGRX130201112-201208

S PACKAGE

47264APIN(FOR PUSH ROD)

main90249-06180iGRX130201112-201208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9167380820

main91673-80820

7 parts on this diagram · 1 diagram in section
