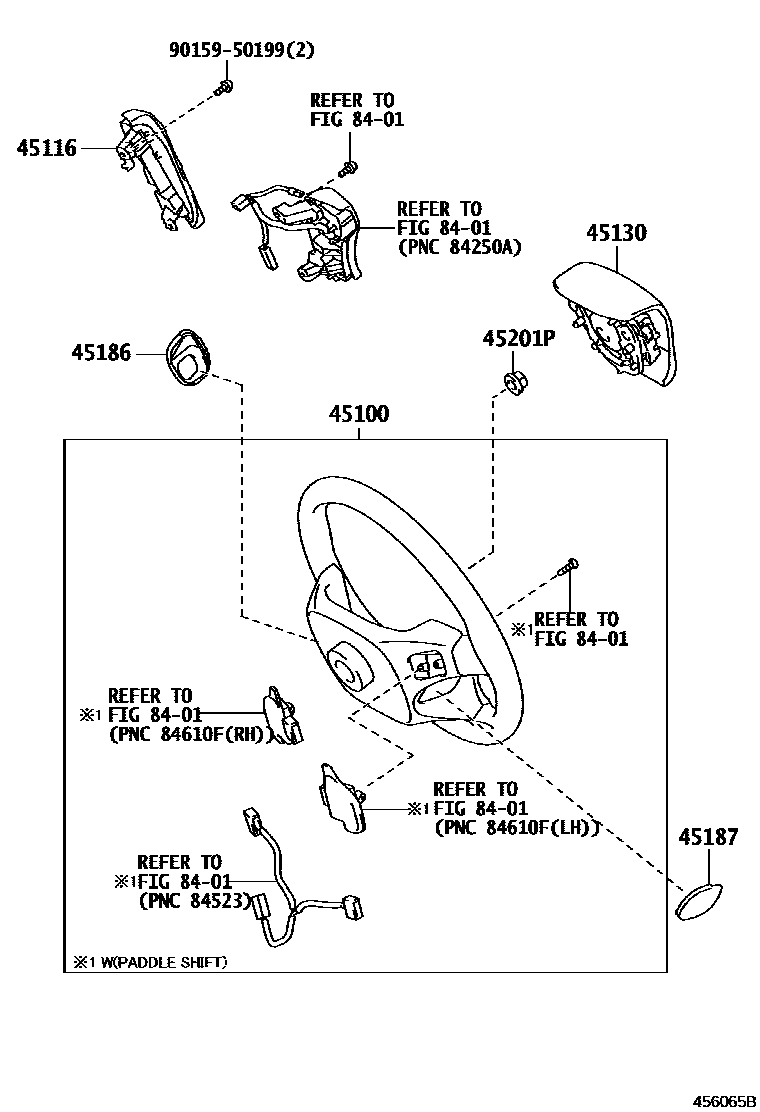

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-22A70-C0supersedes 45100-75010-C0iGRX130201112-201208

4-SPOKE,LEATHER,S PACKAGE,BLACK,TRIM2#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-22090iGRX130201112-201208

45130BUTTON ASSY, HORN

main45130-22560-C0iGRX130201208-201611

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-22070-C0iGRX130201112-201208

BLACK,TRIM2#

main45186-75010-C0iGRX130201208-201611

BLACK,TRIM2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-75010-C0iGRX130201112-201208

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iGRX130201112-201208

8401

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section
