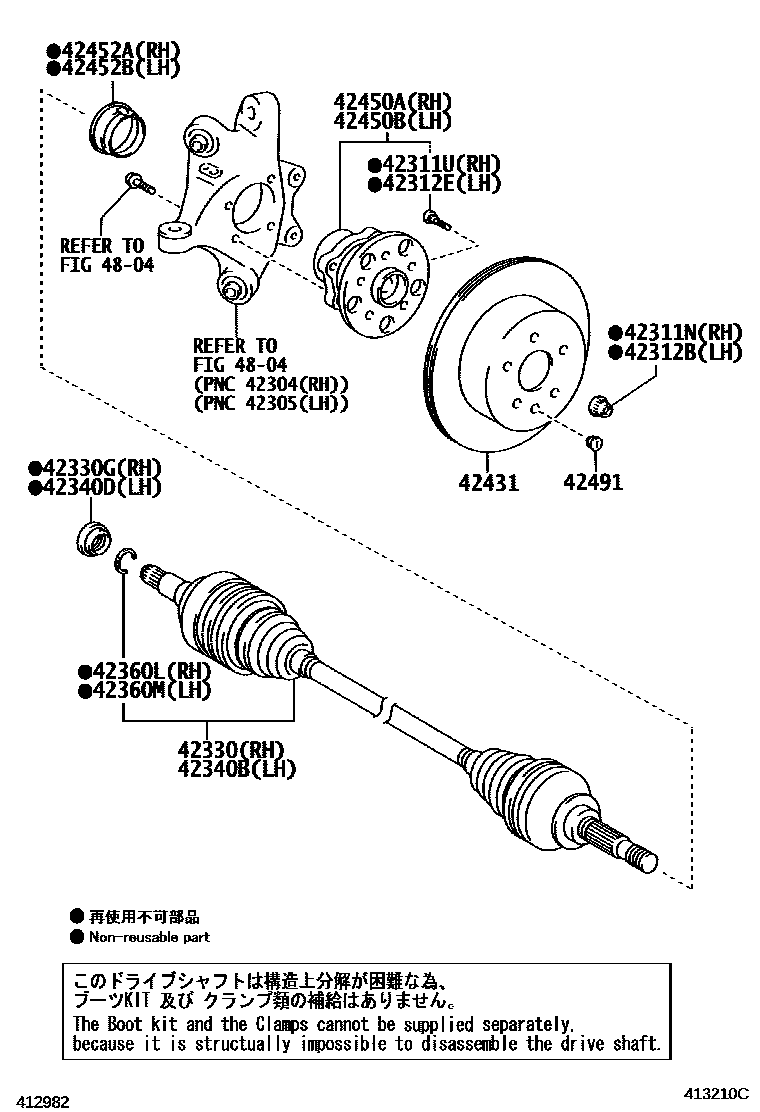

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iGRX130201208

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iGRX130201505

main90942-02070×5iGRX130201208-201504

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iGRX130201112-201208

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iGRX130201505

main90942-02070×5iGRX130201208-201504

42330SHAFT ASSY, REAR DRIVE, RH

main42330-22091iGRX130201112-201208

main42330-30151iGRX130201511

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-43009iGRX130201112-201208

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-22181iGRX130201112-201208

main42340-30151iGRX130201511

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-43009iGRX130201208-201611

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGRX130201112-201208

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGRX130201112-201208

42431DISC, REAR

main42431-30280×2iGRX130201112-201208

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30020iGRX130201112-201208

main42410-30021iGRX130201505

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30020iGRX130201112-201208

main42410-30021iGRX130201505

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iGRX130201112-201208

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iGRX130201112-201208

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iGRX130201112-201208

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

17 parts on this diagram · 1 diagram in section
