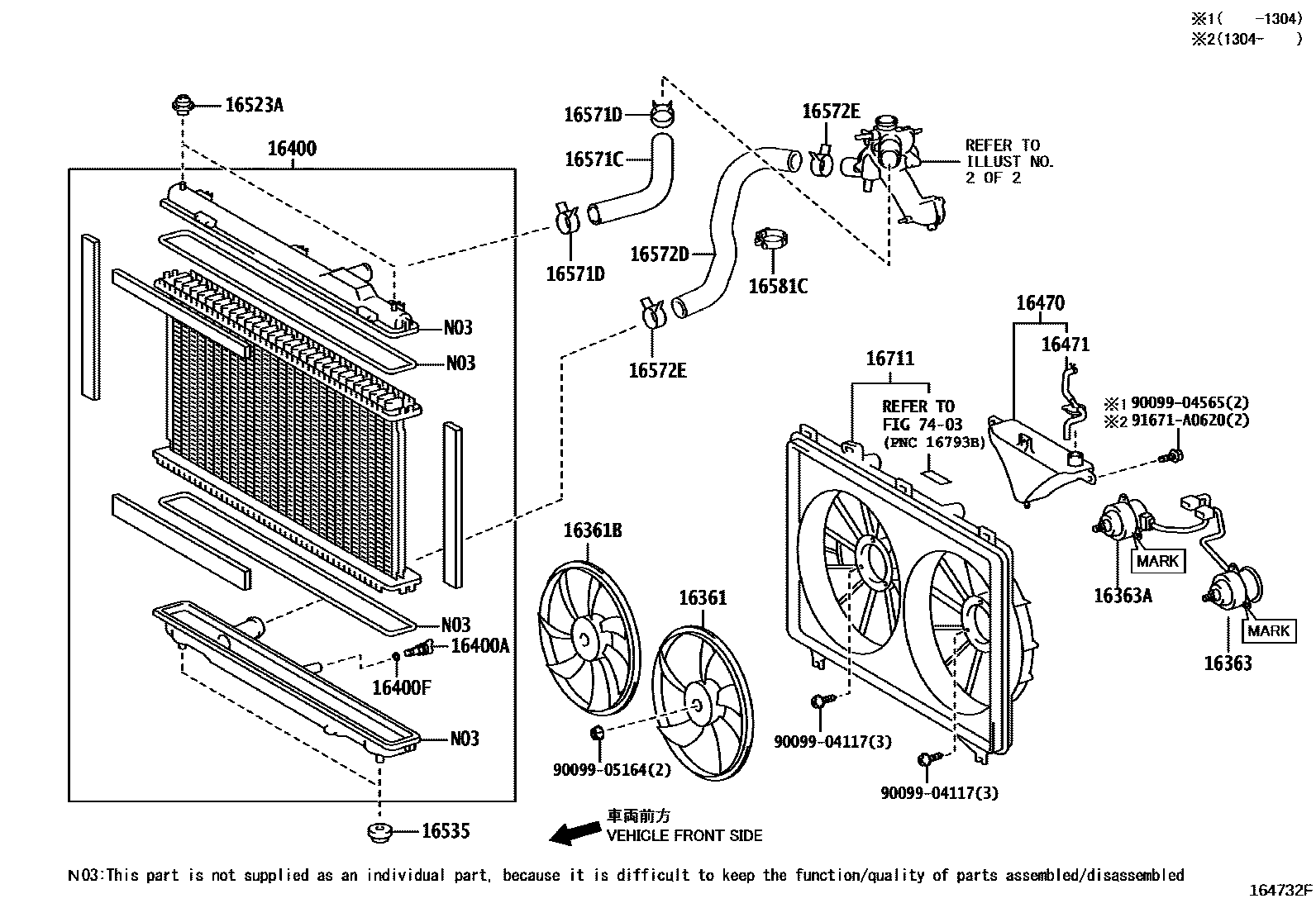

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
MARK 16363-31560
MARK 16363-74340
16363AMOTOR, COOLING FAN, NO.2
MARK 16363-31040
MARK 16363-31550
16400RADIATOR ASSY
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16711SHROUD, FAN
7403
9009904117
main90099-04117
9009904565
main90099-04565
9009905164
main90099-05164
91671A0620
main91671-A0620
23 parts on this diagram · 2 diagrams in section
