8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-0P030i201309-201310

AISIN AW,ID=B9051; AISIN AW,ID=B9051,SPORT & W(*MR & *NS); AISIN AW,ID=B9051,WITH(*MR & *NS)

main86100-0P031i201310-201404

AISIN AW,ID=B9051; AISIN AW,ID=B9051,SPORT & W(*MR & *NS); AISIN AW,ID=B9051,WITH(*MR & *NS)

main86100-0P032i201405-201411

AISIN AW,ID=B9051; AISIN AW,ID=B9051,SPORT & W(*MR & *NS); AISIN AW,ID=B9051,WITH(*MR & *NS)

main86100-0P033i201412-201506

AISIN AW; AISIN AW,SPORT & W(*MR & *NS); AISIN AW,WITH(*MR & *NS)

main86100-0P034i201507-201511

AISIN AW; AISIN AW,SPORT & W(*MR & *NS); AISIN AW,WITH(*MR & *NS)

main86100-0P035i201512-201606

AISIN AW; AISIN AW,SPORT & W(*MR & *NS); AISIN AW,WITH(*MR & *NS)

main86100-0P036i201607-201609

AISIN AW,ID=B9051

main86100-0P037i201612-201707

SPORT & W(*MR & *NS); WITH(*MR & *NS)

main86120-0P060i201009-201309

DENSO,ID=E8023,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); DENSO,ID=E8023,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); DENSO,ID=E8023,SPORT & WITH(*MR&*NS); DENSO,ID=E8023,WITH(*MR&*NS)

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90010-24146×2i201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030i201309-201406

SPORT & W(*MR & *NS); SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)

86271DISC, DISC PLAYER

main86807-0W027i201009-201010

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86807-0W028i201010-201104

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86807-0W029i201105-201109

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86807-0W190i201110-201204

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86807-0W191i201205-201209

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86807-0W192i201210-201304

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86807-0W193i201305-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

86730AMICROPHONE ASSY, TELEPHONE

main86730-06020i201406-201609

main86730-20050i201309-201405

SPORT & W(*MR & *NS); SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)

86860ANTENNA ASSY, NAVIGATION

main86860-0P010i201309-201609

main86860-0P020i201209-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

main86860-22090i201009-201208

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); WITH(*MR&*NS)

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

90153C0001

main90153-C0001

9015950327

main90159-50327

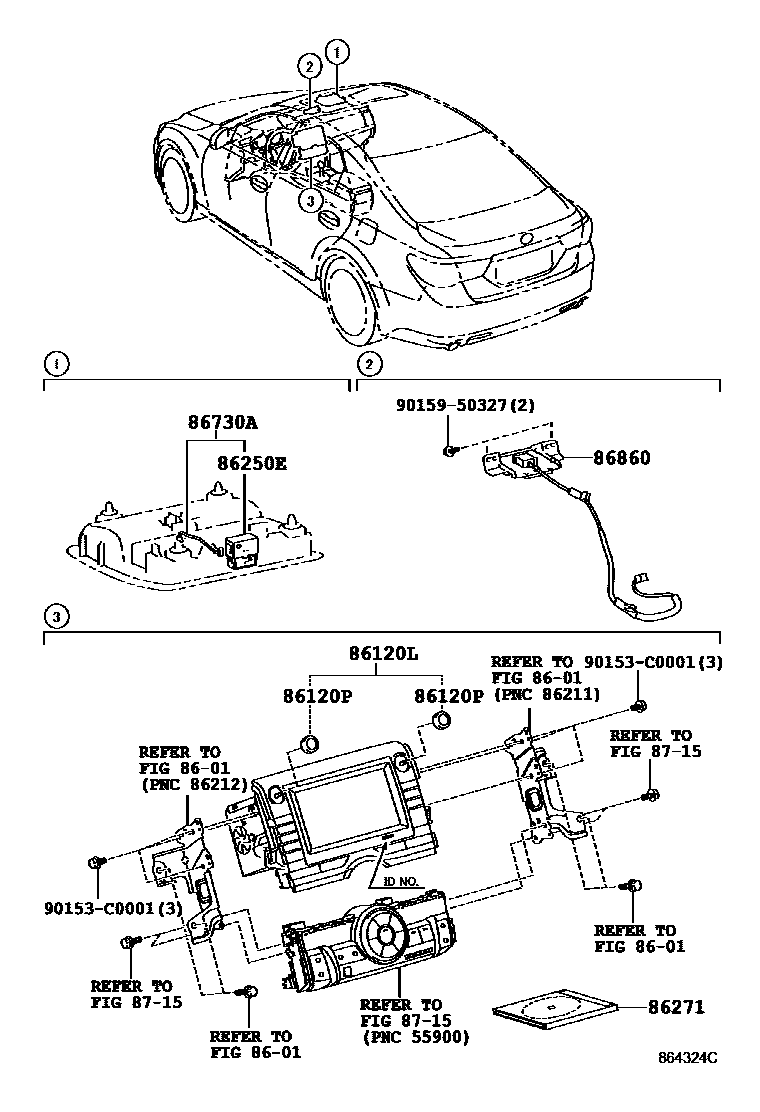

NAVIGATION & FRONT MONITOR DISPLAY
