WINDSHIELD WIPER

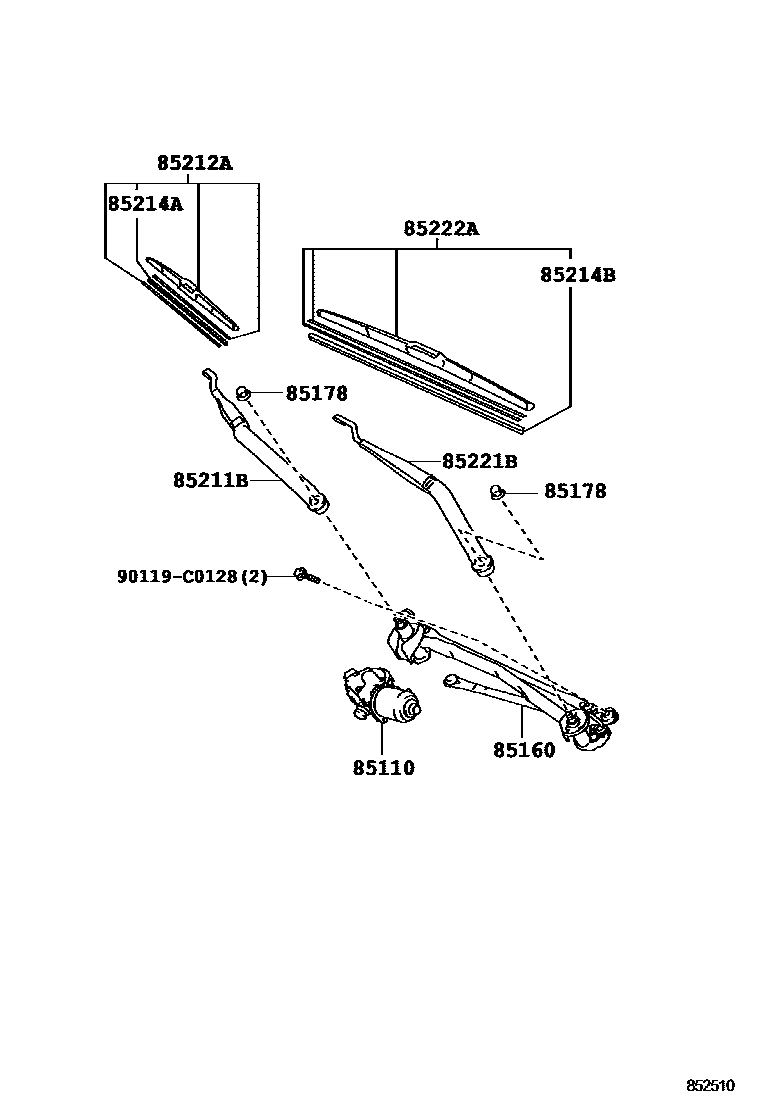

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0N020i201009-201309

85160LINK ASSY, WINDSHIELD WIPER

main85150-0P020i201009-201309

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2i201009-201309

85211BARM, FRONT WIPER, RH

main85211-0P030i201009-201309

85212ABLADE, FR WIPER, RH

main85212-0P030i201009-201309

85214ARUBBER, WIPER, RH

main85214-28090i201009-201309

85214BRUBBER, WIPER, LH

main85214-30380i201009-201309

85221BARM, FRONT WIPER, LH

main85221-0P030i201009-201309

85222ABLADE, FR WIPER, LH

main85222-0P030i201009-201309

90119C0128

main90119-C0128

10 parts on this diagram · 1 diagram in section
