ABS & VSC

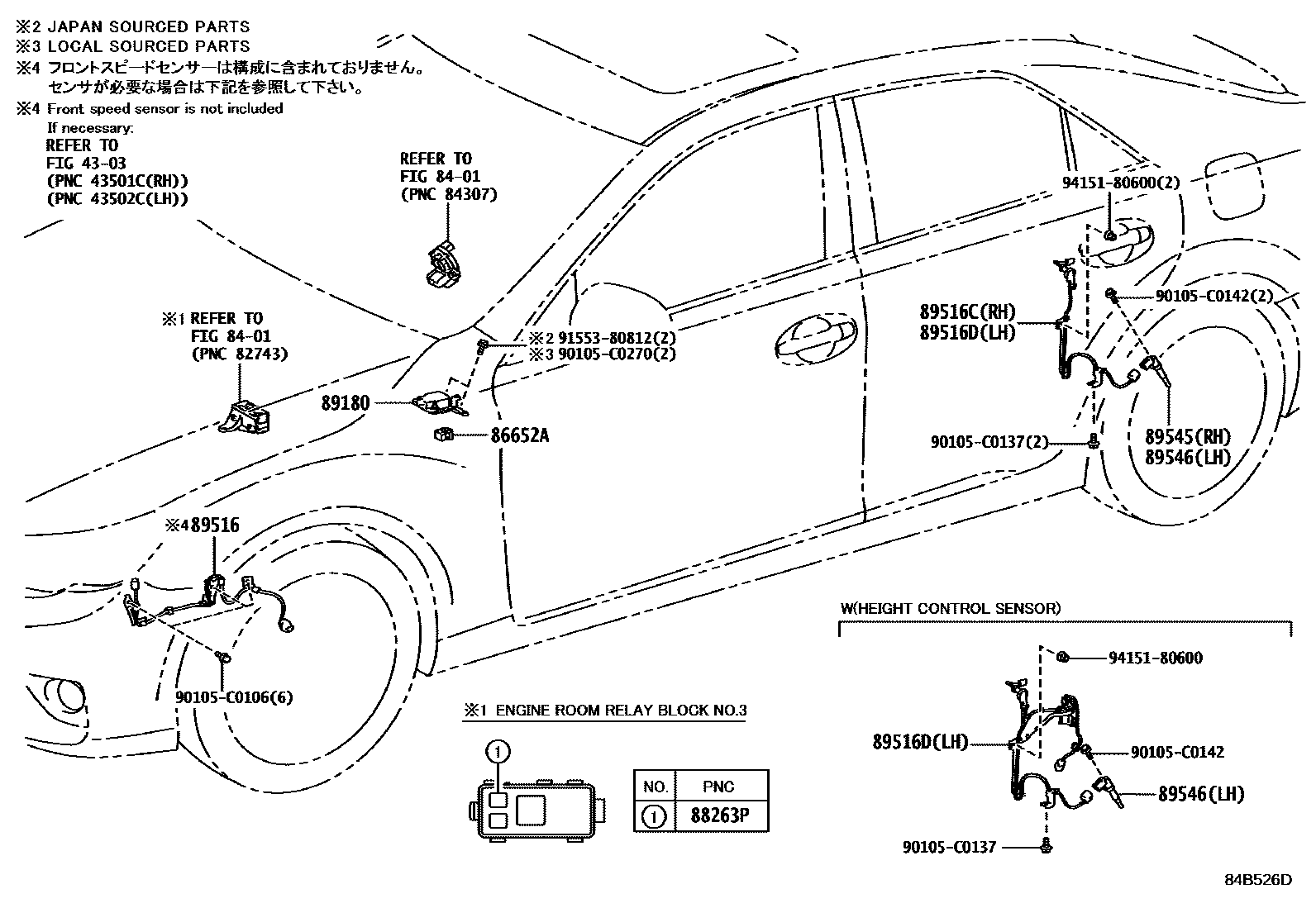

Parts diagram

4303FRONT AXLE HUB

→ Go to FIG 43-03

86652ABUZZER ASSY, SKID CONTROL

main86652-50010i201309-201609

88263PRELAY, STOP LAMP CONTROL

main90987-04004i201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

89180SENSOR ASSY, YAWRATE

main89180-30090i201309

89516WIRE, SKID CONTROL SENSOR

main89516-0N010i201309-201408

RH

main89516-0N011i201409

RH

main89516-0N020i201309

LH

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0P020i201009-201309

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0P010i201009-201309

main89516-0P030i201309

89545SENSOR, SPEED, REAR RH

main89545-0N010i201210-201309

main89545-30070i201009-201210

89546SENSOR, SPEED, REAR LH

main89546-0N010i201210-201309

main89546-30070i201009-201210

90105C0106

main90105-C0106

90105C0137

main90105-C0137

90105C0142

main90105-C0142

90105C0270

main90105-C0270

9155380812

main91553-80812

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
