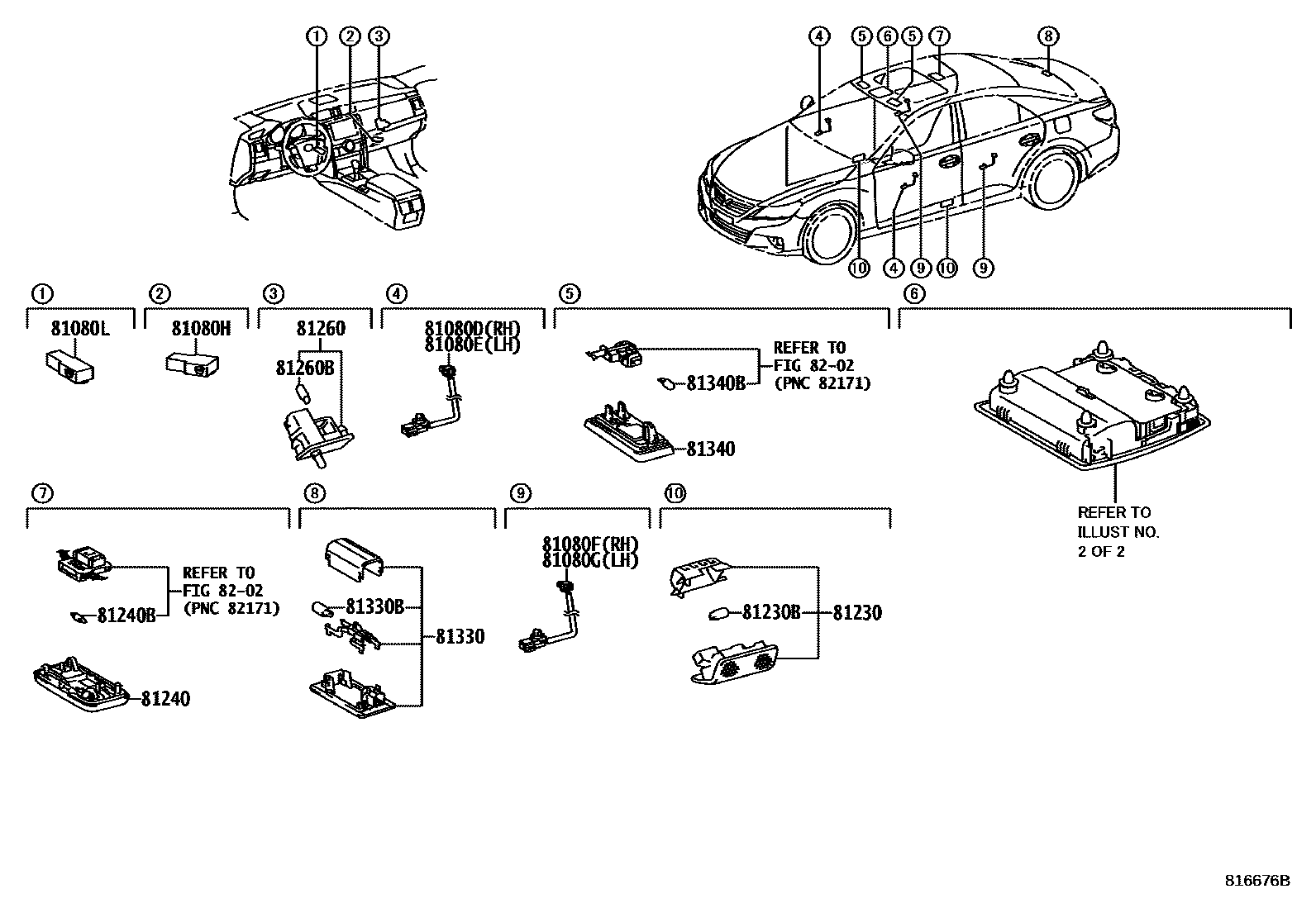

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
SPORT & WITH(*MR)
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
SPORT & WITH(*MR)
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
SPORT & WITH(*MR)
SPORT & WITH(*MR)
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
SHELL,TRIM0#
FLAXEN,TRIM20
LT.GRAY,TRIM24
81240BBULB, ROOM LAMP, NO.1
12V 8W
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#; WITH(*MR),SHELL,TRIM0#
LT.GRAY,TRIM2#; SPORT & WITH(*MR),LT.GRAY,TRIM2#; WITH(*MR),LT.GRAY,TRIM2#
81340BBULB (FOR VANITY LAMP)
12V 8W; 12V 8W,SPORT & WITH(*MR); 12V 8W,WITH(*MR)
8202WIRING & CLAMP
17 parts on this diagram · 2 diagrams in section
