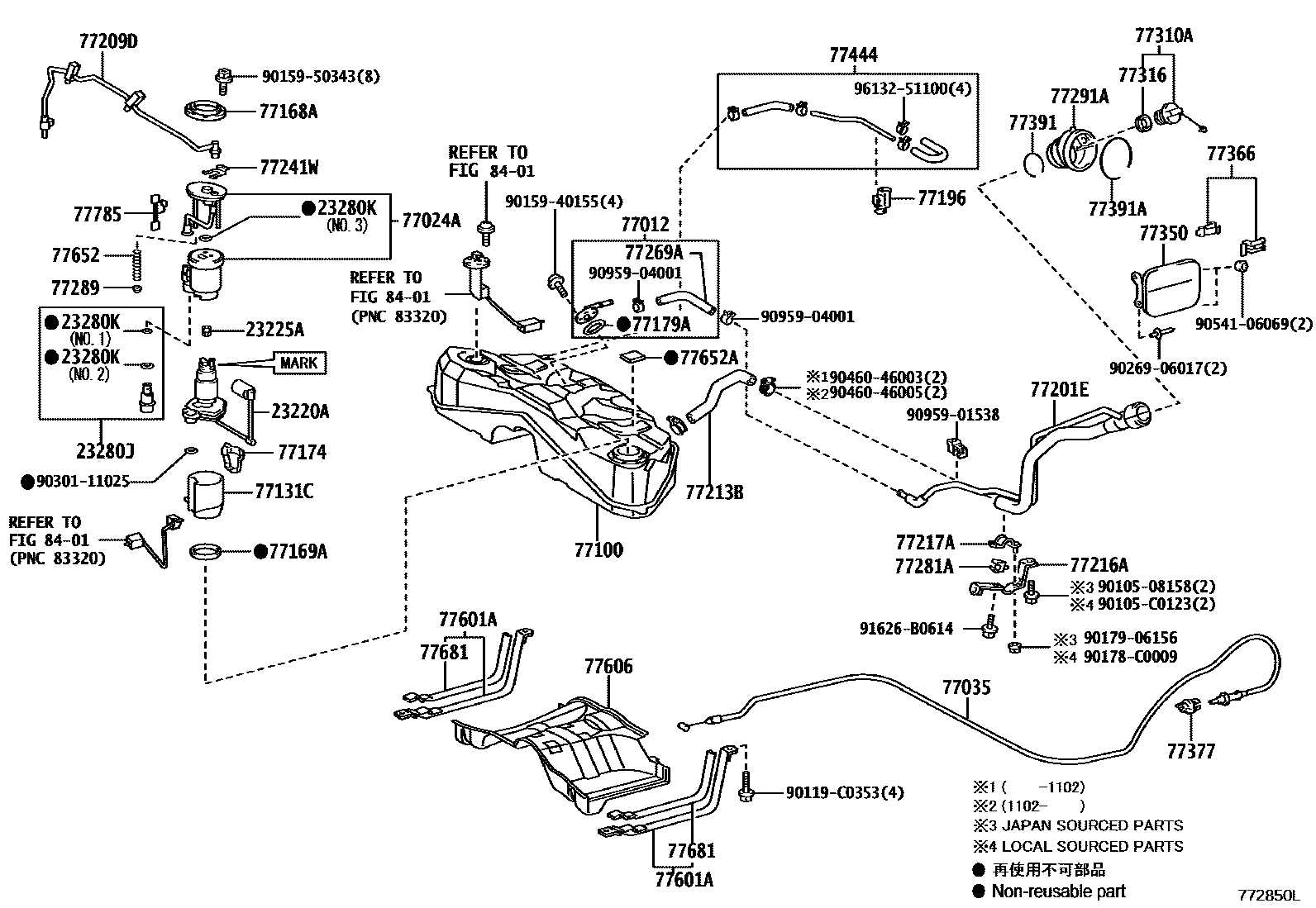

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE

23220APUMP ASSY, FUEL W/FILTER

main23220-0P140i3GRFE,5GRFE..GRX13#201009-201203

MARK 04

main23220-0P141i3GRFE,5GRFE..GRX13#201309

MARK 14

23225ASPACER, FUEL PUMP

main23225-0H020i3GRFE,5GRFE..GRX13#201309

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i3GRFE,5GRFE..GRX13#201009-201309

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i3GRFE,5GRFE..GRX13#201309

NO.1

main90301-08020i3GRFE,5GRFE..GRX13#201009-201309

NO.3

main90301-15024i3GRFE,5GRFE..GRX13#201309

NO.2

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-0N010iGRX13#201505

main77012-22030iGRX13#201309-201504

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0N040iGRX13#201009-201309

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0P020iGRX13#201009-201309

77100TANK ASSY, FUEL

main77001-0N011iGRX13#201009-201309

main77001-0N012iGRX13#201605

77131CSUB-TANK, FUEL, NO.1

main77131-0N012iGRX13#201009-201309

77168APLATE, FUEL TANK VENT TUBE SET

main77168-0N010iGRX13#201505

main77168-52020iGRX13#201009-201309

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGRX13#201309

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0N011iGRX13#201309

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGRX13#201009-201309

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-30050iGRX13#201009-201309

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0P010iGRX13#201009-201309

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0N020iGRX13#201009-201309

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0N010iGRX13#201505

main77213-22100iGRX13#201009-201309

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0N010iGRX13#201309

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0N010iGRX13#201009-201309

77241WCLIP, TUBE JOINT

main77241-33011iGRX13#201009-201309

77269AHOSE, FUEL TANK BREATHER

main77269-0N010iGRX13#201505

main77269-22010iGRX13#201009-201309

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iGRX13#201009-201309

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGRX13#201009-201309

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0P020iGRX13#201009-201309

77310ACAP ASSY, FUEL TANK

main77300-0F010iGRX13#201201-201309

main77300-52030iGRX13#201009-201112

77316GASKET, FUEL TANK CAP

main77316-0F020iGRX13#201201-201309

main77316-52040iGRX13#201009-201201

77350LID ASSY, FUEL FILLER OPENING

main77350-22220iGRX13#201009-201309

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iGRX13#201009-201309

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iGRX13#201009-201309

77391RING, FUEL INLET BOX

main77391-0R030iGRX13#201402

(L)

main77391-12020iGRX13#201309-201402

77391ARING, FUEL INLET BOX

main77391-46010iGRX13#201009-201309

77444HOSE, FUEL TANK VENT

main77404-0N010iGRX13#201009-201309

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-22120×2iGRX13#201009-201309

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0N010iGRX13#201009-201309

77652CUSHION, FUEL TANK, NO.1

main77652-0N010iGRX13#201009-201309

77652ACUSHION, FUEL TANK, NO.2

main77652-12100×13iGRX13#201009-201309

77681SEAT, FUEL TANK BAND, RH

main77681-22020×2iGRX13#201009-201309

77785HARNESS, FUEL PUMP

main77785-0N010iGRX13#201009-201203

PNC 23220A=MARK 04

main77785-0N020iGRX13#201203-201309

PNC 23220A=MARK 14

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

90105C0123

main90105-C0123

90119C0353

main90119-C0353

9015940155

main90159-40155

9015950343

main90159-50343

90178C0009

main90178-C0009

9017906156

main90179-06156

9026906017

main90269-06017

9030111025

main90301-11025

9046046003

main90460-46003

9046046005

main90460-46005

9054106069

main90541-06069

9095901538

main90959-01538

9095904001

main90959-04001

91626B0614

main91626-B0614

9613251100

main96132-51100
