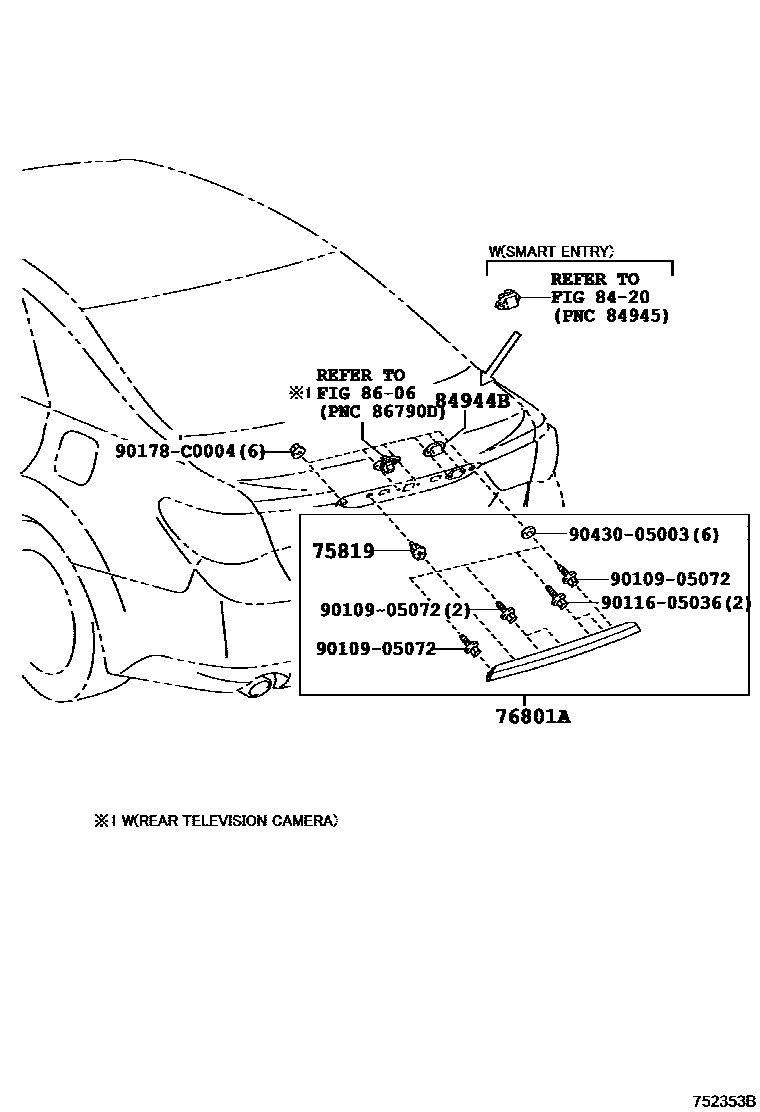

REAR MOULDING

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010iGRX13#201009-201309

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-0P080iGRX132201309-201709

PLATED

main76801-0P090iGRX131201309-201609

PLATED

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

84944BCOVER, LUGGAGE ELECTRICAL KEY SWITCH

main84944-0P020iGRX132201009-201309

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010905072

main90109-05072

9011605036

main90116-05036

90178C0004

main90178-C0004

9043005003

main90430-05003

9 parts on this diagram · 1 diagram in section
