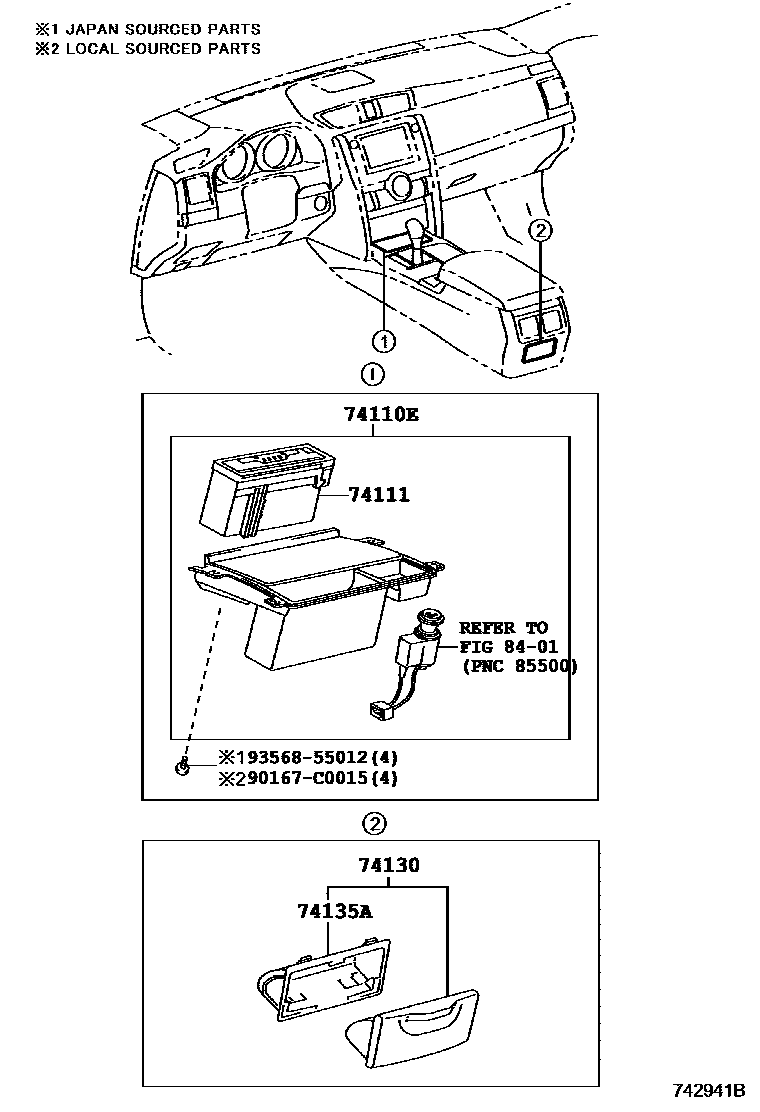

ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-22260-B0iGRX13#201009-201309

GRAY,TRIM2#

main74110-22260-E0iGRX13#201009-201309

BROWN,TRIM0#

main74110-22270-B0iGRX13#201309-201709

BITTERBLACK,TRIM24

main74110-22270-E0iGRX13#201309-201709

IVORY,TRIM20

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iGRX13#201009-201309

74130RECEPTACLE ASSY, REAR ASH

main74130-0P010-A1iGRX13#201009-201309

SHELL,TRIM0#

main74130-0P010-C0iGRX13#201009-201709

BLACK,TRIM2#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-0P010iGRX13#201009-201309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90167C0015

main90167-C0015

9356855012

main93568-55012

7 parts on this diagram · 1 diagram in section
