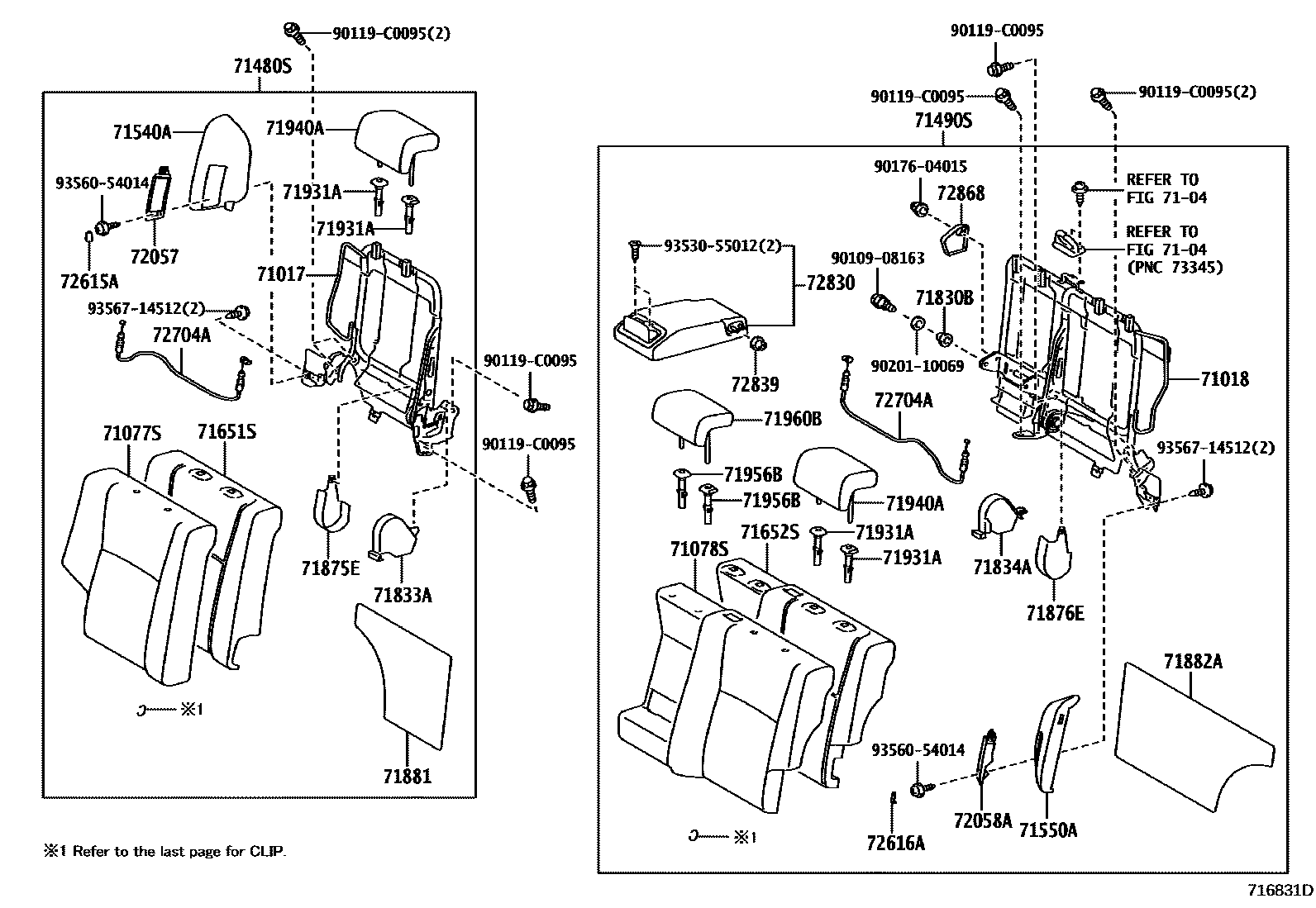

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0P020i201009-201309

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0P020i201309

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0P070-A3i201309-201709

IVORY BLACK,TRIM20

main71077-0P070-C3i201309-201709

BITTER BLACK,TRIM24

main71077-0P080-A2supersedes 71077-0P070-A2i201009-201309

SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#; SPORT & WITH(*MR&*NS),SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#

main71077-0P080-C2supersedes 71077-0P070-C2i201009-201309

BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#; SPORT & WITH(*MR&*NS),BLACK,TRIM2#; SPORT & WITH(*MR),BLACK,TRIM2#

main71077-0P100-A0i201309-201709

IVORY BLACK,TRIM20

main71077-0P100-C0i201309-201709

BITTER BLACK,TRIM24

main71077-0P060-A2supersedes 71077-0P050-A2i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71077-0P060-C2supersedes 71077-0P050-C2i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71077-0P090-A0i201309-201709

WITH(*MR & *NS),IVORY,TRIM20; WITH(*MR),IVORY,TRIM20

main71077-0P090-C0i201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0P070-A4i201309-201709

IVORY BLACK,TRIM20

main71078-0P070-C3i201309-201709

BITTER BLACK,TRIM24

main71078-0P080-A2supersedes 71078-0P070-A2i201009-201309

SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#; SPORT & WITH(*MR&*NS),SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#

main71078-0P080-C2supersedes 71078-0P070-C2i201009-201309

BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#; SPORT & WITH(*MR&*NS),BLACK,TRIM2#; SPORT & WITH(*MR),BLACK,TRIM2#

main71078-0P100-A0i201309-201709

IVORY BLACK,TRIM20

main71078-0P100-C0i201309-201709

BITTER BLACK,TRIM24

main71078-0P060-A2supersedes 71078-0P050-A2i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71078-0P060-C2supersedes 71078-0P050-C2i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71078-0P090-A2i201309-201709

WITH(*MR & *NS),IVORY,TRIM20; WITH(*MR),IVORY,TRIM20

main71078-0P090-C0i201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-0P050-C4i201309-201709

IVORY BLACK,TRIM20

main71480-0P050-C5i201309-201709

BITTER BLACK,TRIM24

main71480-0P060-A3supersedes 71480-0P050-A3i201009-201309

SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#; SPORT & WITH(*MR&*NS),SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#

main71480-0P060-C3supersedes 71480-0P050-C3i201009-201309

BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#; SPORT & WITH(*MR&*NS),BLACK,TRIM2#; SPORT & WITH(*MR),BLACK,TRIM2#

main71480-0P100-C0i201309-201709

IVORY BLACK,TRIM20

main71480-0P100-C1i201309-201709

BITTER BLACK,TRIM24

main71480-0P080-A3supersedes 71480-0P070-A3i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71480-0P080-C3supersedes 71480-0P070-C3i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71480-0P090-C0i201309-201709

WITH(*MR & *NS),IVORY,TRIM20; WITH(*MR),IVORY,TRIM20

main71480-0P090-C1i201309-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-0P050-21i201309-201709

IVORY BLACK,TRIM20

main71490-0P050-C9i201309-201709

BITTER BLACK,TRIM24

main71490-0P060-A4supersedes 71490-0P050-A5i201009-201303

SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#; SPORT & WITH(*MR&*NS),SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#

main71490-0P060-A5i201303-201309

SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#; SPORT & WITH(*MR&*NS),SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#

main71490-0P060-C4supersedes 71490-0P050-C4i201009-201303

BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#; SPORT & WITH(*MR&*NS),BLACK,TRIM2#; SPORT & WITH(*MR),BLACK,TRIM2#

main71490-0P060-C5i201303-201309

BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#; SPORT & WITH(*MR&*NS),BLACK,TRIM2#; SPORT & WITH(*MR),BLACK,TRIM2#

main71490-0P100-C2i201309-201709

IVORY BLACK,TRIM20

main71490-0P100-C3i201309-201709

BITTER BLACK,TRIM24

main71490-0P080-A4supersedes 71490-0P070-A5i201009-201303

SPORT & WITH(*MR),SHELL,TRIM0#

main71490-0P080-A5supersedes 71490-0P070-A5i201303-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71490-0P080-C4supersedes 71490-0P070-C5i201009-201303

SPORT & WITH(*MR),BLACK,TRIM2#

main71490-0P080-C5supersedes 71490-0P070-C5i201303-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71490-0P090-C5i201309-201508

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

main71490-0P090-C6i201309-201508

WITH(*MR & *NS),IVORY BLACK,TRIM20; WITH(*MR),IVORY BLACK,TRIM20

main71490-0P090-C7i201508-201709

WITH(*MR & *NS),IVORY BLACK,TRIM20; WITH(*MR),IVORY BLACK,TRIM20

main71490-0P090-C8i201508-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-0P040-C0i201309-201709

IVORY BLACK,TRIM20

main71540-0P040-C1i201309-201709

BITTER BLACK,TRIM24

main71540-0P050-A0i201009-201309

SHELL,TRIM0#

main71540-0P050-C0i201009-201309

BLACK,TRIM2#

main71540-0P050-C1i201309-201709

IVORY BLACK,TRIM20

main71540-0P050-C2i201309-201709

BITTER BLACK,TRIM24

main71540-0P070-A0supersedes 71540-0P060-A0i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71540-0P070-C0supersedes 71540-0P060-C0i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-0P030-C0i201309-201709

IVORY BLACK,TRIM20

main71550-0P030-C1i201309-201709

BITTER BLACK,TRIM24

main71550-0P060-A0i201009-201309

SHELL,TRIM0#

main71550-0P060-C0i201009-201309

BLACK,TRIM2#

main71550-0P060-C1i201309-201709

BITTER BLACK,TRIM20

main71550-0P060-C2i201309-201709

IVORY BLACK,TRIM24

main71550-0P080-A0supersedes 71550-0P070-A0i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71550-0P080-C0supersedes 71550-0P070-C0i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0P020i201009-201309

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0P020i201009-201309

71830BBUSH(FOR REAR SEAT ARMREST)

main90386-10033i201309

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0P010-A1i201009-201309

SHELL,TRIM0#

main71833-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main71833-0P010-C0i201309-201709

BLACK,TRIM24

71834ACOVER, REAR SEAT RECLINING, NO.1 LH

main71834-0P010-A1i201009-201309

SHELL,TRIM0#

main71834-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main71834-0P010-C0i201309-201709

BLACK,TRIM24

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-0P010i201009-201309

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0P010i201009-201309

71881BOARD, REAR SEATBACK, RH

main71881-0P010i201009-201309

71882ABOARD, REAR SEATBACK, LH

main71882-0P010i201009-201309

71931ASUPPORT, REAR SEAT HEADREST

main71930-52030-A2×2i201009-201309

W(LOCK)&W(BUTTON),SHELL,TRIM0#

main71930-52030-A8×2i201309-201709

W(LOCK)&W(BUTTON),FLAXEN,TRIM20

main71930-52030-C0×2i201309-201709

W(LOCK)&W(BUTTON),BLACK,TRIM24

main71931-42020-A5×2i201009-201309

W(LOCK)&W/O(BUTTON),SHELL,TRIM0#

main71931-42020-A9×2i201309-201709

W(LOCK)&W/O(BUTTON),FLAXEN,TRIM20

main71931-42020-C0×2i201309-201709

W(LOCK)&W/O(BUTTON),BLACK,TRIM24

71940AHEADREST ASSY, REAR SEAT

main71940-0P060-A2×2i201309-201411

IVORY BLACK,TRIM20

main71940-0P060-C2×2i201309-201411

BITTER BLACK,TRIM24

main71940-0P061-A2×2i201412-201709

IVORY BLACK,TRIM20

main71940-0P061-C2×2i201412-201709

BITTER BLACK,TRIM24

main71940-0P070-A1×2supersedes 71940-0P060-A1i201009-201309

SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SHELL,TRIM0#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SHELL,TRIM0#; SPORT & WITH(*MR&*NS),SHELL,TRIM0#; SPORT & WITH(*MR),SHELL,TRIM0#

main71940-0P070-C1×2supersedes 71940-0P060-C1i201009-201309

BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,TRIM2#; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,TRIM2#; SPORT & WITH(*MR&*NS),BLACK,TRIM2#; SPORT & WITH(*MR),BLACK,TRIM2#

main71940-0P090-A0×2i201309-201411

IVORY BLACK,TRIM20

main71940-0P090-C0×2i201309-201411

BITTER BLACK,TRIM24

main71940-0P091-A0×2i201412-201709

IVORYBLACK,TRIM20

main71940-0P091-C0×2i201412-201709

BITTER BLACK,TRIM24

main71940-0P050-A1×2supersedes 71940-0P040-A1i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71940-0P050-C1×2supersedes 71940-0P040-C1i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

main71940-0P080-A0×2i201309-201411

WITH(*MR & *NS),IVORY BLACK,TRIM20; WITH(*MR),IVORY BLACK,TRIM20

main71940-0P080-C0×2i201309-201411

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

main71940-0P081-A0×2i201412-201709

WITH(*MR & *NS),IVORY BLACK,TRIM20; WITH(*MR),IVORY BLACK,TRIM20

main71940-0P081-C0×2i201412-201709

WITH(*MR & *NS),BITTER BLACK,TRIM24; WITH(*MR),BITTER BLACK,TRIM24

71956BSUPPORT, REAR SEAT HEADREST

main71930-52030-A2i201009-201309

W(LOCK)&W(BUTTON),SHELL,TRIM0#

main71930-52030-A8i201309-201709

W(LOCK)&W(BUTTON),FLAXEN,TRIM20

main71930-52030-C0i201309-201709

W(LOCK)&W(BUTTON),BLACK,TRIM24

main71931-42020-A5i201009-201309

W(LOCK)&W/O(BUTTON),SHELL,TRIM0#

main71931-42020-A9i201309-201709

W(LOCK)&W/O(BUTTON),FLAXEN,TRIM20

main71931-42020-C0i201009-201309

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0P050-A1i201009-201309

SHELL,TRIM0#

main71960-0P050-A3i201309-201411

IVORYBLACK,TRIM20

main71960-0P050-A4i201309-201411

IVORY BLACK,TRIM20

main71960-0P050-C1i201009-201309

BLACK,TRIM2#

main71960-0P050-C2i201309-201411

BITTER BLACK,TRIM24,TRIM = LB**

main71960-0P050-C3i201309-201411

BITTER BLACK,TRIM24,TRIM = LA**

main71960-0P051-A4i201412-201709

IVORY BLACK,TRIM20

main71960-0P051-C3i201412-201709

BITTER BLACK,TRIM24

main71960-0P060-A0i201309-201411

IVORYBLACK,TRIM20

main71960-0P060-C0i201309-201411

BITTER BLACK,TRIM24

main71960-0P061-A0i201412-201709

IVORYBLACK,TRIM20

main71960-0P061-C0i201412-201709

BITTER BLACK,TRIM24

main71960-0P040-A1supersedes 71960-0P030-A1i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main71960-0P040-C1supersedes 71960-0P030-C1i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-0P010-A1i201009-201309

SHELL,TRIM0#

main72057-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main72057-0P010-C0i201309-201709

BLACK,TRIM24

72058ALEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

main72058-0P010-A1i201009-201309

SHELL,TRIM0#

main72058-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main72058-0P010-C0i201309-201709

BLACK,TRIM24

72615ACOVER, REAR SEATBACK LOCK STRIKER, RH

main72615-0P010-A1i201009-201309

SHELL,TRIM0#

main72615-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main72615-0P010-C0i201309-201709

BLACK,TRIM24

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-0P010-A1i201009-201309

SHELL,TRIM0#

main72615-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main72615-0P010-C0i201309-201709

BLACK,TRIM24

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-0P010×2i201009-201309

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-0P050-A1i201009-201309

SHELL,TRIM0#

main72830-0P050-C1i201009-201309

BLACK,TRIM2#

main72830-0P050-C2i201309-201709

IVORY BLACK,TRIM20

main72830-0P050-C3i201309-201709

BITTER BLACK,TRIM24

main72830-0P060-C0i201309-201709

IVORY BLACK,TRIM20

main72830-0P060-C1i201309-201709

BITTER BLACK,TRIM24

main72830-0P040-A1supersedes 72830-0P030-A1i201009-201309

SPORT & WITH(*MR),SHELL,TRIM0#

main72830-0P040-C1supersedes 72830-0P030-C1i201009-201309

SPORT & WITH(*MR),BLACK,TRIM2#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010i201309-201709

72868COVER, CENTER ARMREST HINGE, RH

main72868-0P010-A1×2i201009-201303

SHELL,TRIM0#

main72868-0P010-A2i201309-201709

IVORYBLACK,TRIM20

main72868-0P010-C0i201309-201709

BLACK,TRIM24

9010908163

main90109-08163

90119C0095

main90119-C0095

9017604015

main90176-04015

9020110069

main90201-10069

9353055012

main93530-55012

9356054014

main93560-54014

9356714512

main93567-14512

REAR SEAT & SEAT TRACK
