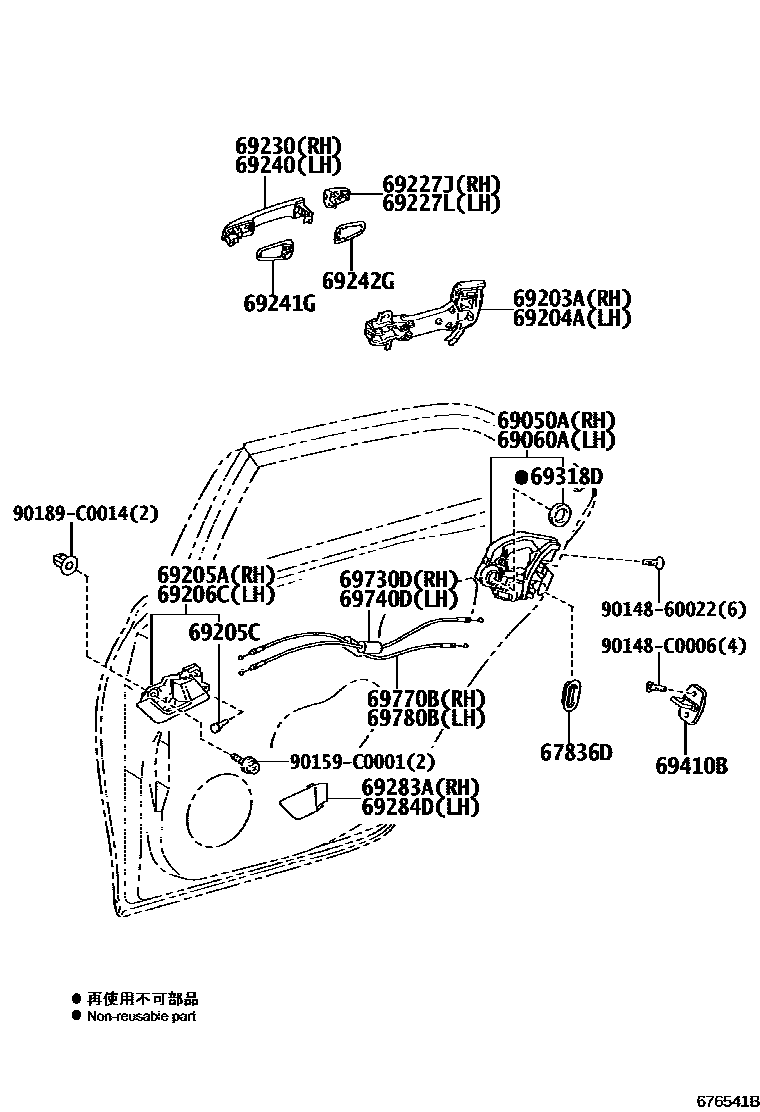

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#,2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7; SPORT & WITH(*MR&*NS),SILVER ME.,1F7; SPORT & WITH(*MR),SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3; SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3; SPORT & WITH(*MR),DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),WHITE PEARL CS.,062; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),WHITE PEARL CS.,062; SPORT & WITH(*MR&*NS),WHITE PEARL CS.,062; SPORT & WITH(*MR),WHITE PEARL CS.,062; WHITE PEARL CS.,062
SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),SILVER ME.,1F7; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),SILVER ME.,1F7; SPORT & WITH(*MR&*NS),SILVER ME.,1F7; SPORT & WITH(*MR),SILVER ME.,1F7
ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),ICE TITANIUM M.M.,1H4; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR&*NS),ICE TITANIUM M.M.,1H4; SPORT & WITH(*MR),ICE TITANIUM M.M.,1H4
BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),BLACK,202; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),BLACK,202; SPORT & WITH(*MR&*NS),BLACK,202; SPORT & WITH(*MR),BLACK,202
DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. RED M.M.,3Q3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. RED M.M.,3Q3; SPORT & WITH(*MR&*NS),DK. RED M.M.,3Q3; SPORT & WITH(*MR),DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK. BROWN M.M.,4U3; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK. BROWN M.M.,4U3; SPORT & WITH(*MR&*NS),DK. BROWN M.M.,4U3; SPORT & WITH(*MR),DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),DK.BLUE MC.,8S6; SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),DK.BLUE MC.,8S6; SPORT & WITH(*MR&*NS),DK.BLUE MC.,8S6; SPORT & WITH(*MR),DK.BLUE MC.,8S6
BLUE ME.,8T7
WHITE PEARL CS.,062
SILVER ME.,1F7
ICE TITANIUM M.M.,1H4
BLACK,202
DK. RED M.M.,3Q3
DK. BROWN M.M.,4U3
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM0#,2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
9014860022
main90148-60022
90148C0006
main90148-C0006
90159C0001
main90159-C0001
90189C0014
main90189-C0014
26 parts on this diagram · 1 diagram in section
