EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

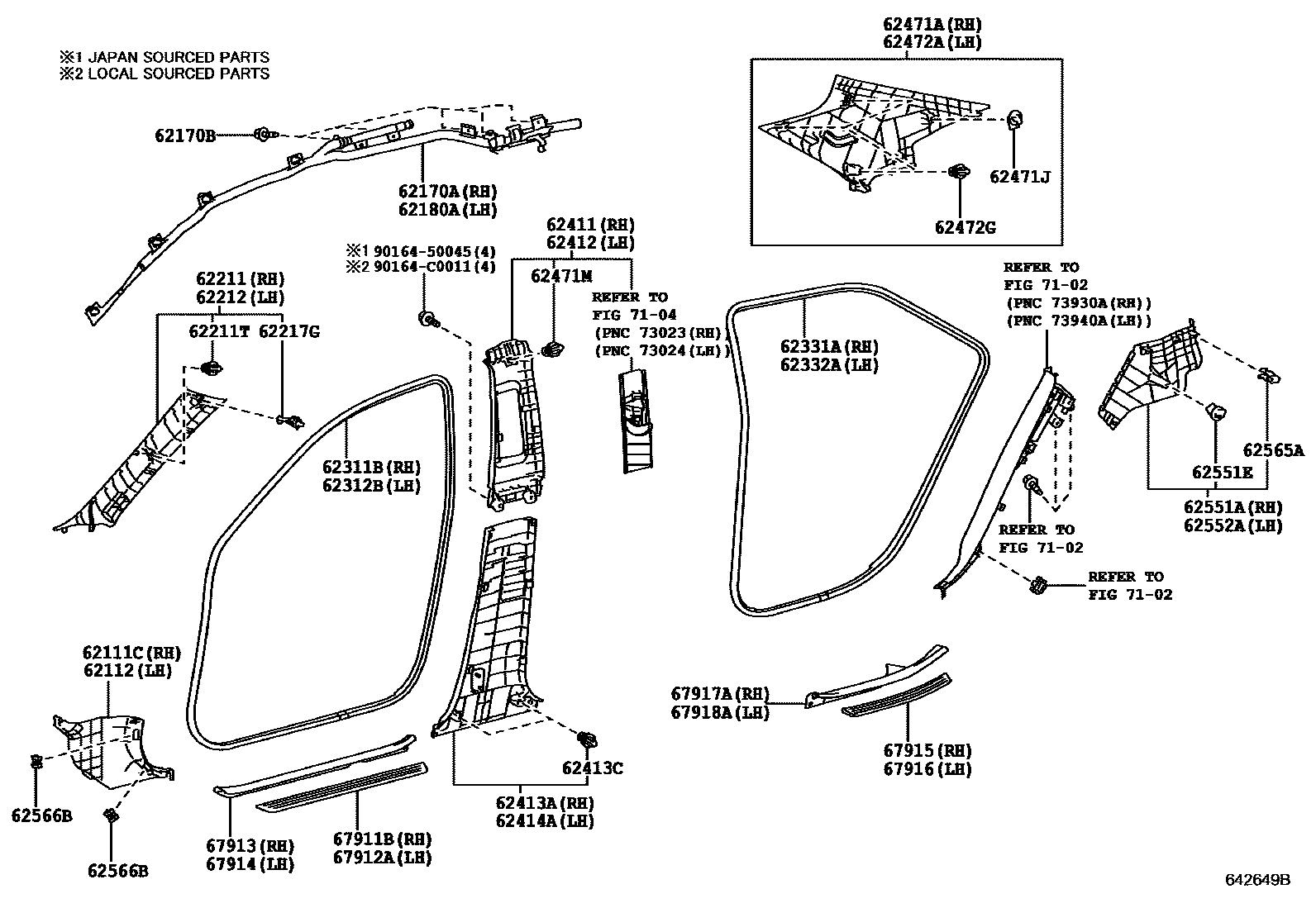

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-0P030-A0i201009-201309
SHELL,TRIM0#
main62111-0P030-C0i201009-201709
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-0P030-A0i201009-201309
SHELL,TRIM0#
main62112-0P030-C0i201009-201709
BLACK,TRIM2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-0P010i201009-201309
62170BBOLT, W/WASHER
main90119-06869i201009-201309
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-0P010i201009-201309
62211GARNISH, FRONT PILLAR, RH
main62211-0P050-A0i201009-201309
SHELL,TRIM0#
sub62211-0P051
main62211-0P050-A1i201309-201511
FLAXEN,TRIM20
sub62211-0P051
main62211-0P050-B1i201009-201309
LIGHT GRAY,TRIM2#
sub62211-0P051
main62211-0P050-B1i201309-201511
LIGHT GRAY,TRIM24
sub62211-0P051
main62211-0P051-A1i201512-201709
FLAXEN,TRIM20
main62211-0P051-B1i201512-201709
LIGHT GRAY,TRIM24
62211TCLIP(FOR FRONT PILLAR GARNISH)
main90467-10161i201009-201309
62212GARNISH, FRONT PILLAR, LH
main62212-0P050-A0i201009-201309
SHELL,TRIM0#
sub62212-0P051
main62212-0P050-A1i201309-201511
FLAXEN,TRIM20
sub62212-0P051
main62212-0P050-B1i201009-201309
LIGHT GRAY,TRIM2#
sub62212-0P051
main62212-0P050-B1i201309-201511
LIGHT GRAY,TRIM24
sub62212-0P051
main62212-0P051-A1i201512-201709
FLAXEN,TRIM20
main62212-0P051-B1i201512-201709
LIGHT GRAY,TRIM24
62217GCLIP, FRONT PILLAR GARNISH
main62217-42030i201009-201309
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-0P030-A0i201009-201309
SHELL,TRIM0#
main62311-0P030-C0i201009-201709
BLACK,TRIM2#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-0P030-A0i201009-201309
SHELL,TRIM0#
main62312-0P030-C0i201009-201709
BLACK,TRIM2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-0P030-A0i201009-201309
SHELL,TRIM0#
main62331-0P030-C0i201009-201709
BLACK,TRIM2#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-0P030-A0i201009-201309
SHELL,TRIM0#
main62332-0P030-C0i201009-201709
BLACK,TRIM2#
62411GARNISH, CENTER PILLAR, RH
main62411-0P030-A0i201009-201309
SHELL,TRIM0#
main62411-0P030-A1i201309-201709
FLAXEN,TRIM20
main62411-0P030-B0i201009-201309
LIGHT GRAY,TRIM2#
main62411-0P030-B1i201309-201709
LIGHT GRAY,TRIM24
62412GARNISH, CENTER PILLAR, LH
main62412-0P030-A0i201009-201309
SHELL,TRIM0#
main62412-0P030-A1i201309-201709
FLAXEN,TRIM20
main62412-0P030-B0i201009-201309
LIGHT GRAY,TRIM2#
main62412-0P030-B1i201309-201709
LIGHT GRAY,TRIM24
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-0P030-A0i201009-201309
SHELL,TRIM0#
main62413-0P030-C0i201009-201709
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10161i201009-201309
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-0P030-A0i201009-201309
SHELL,TRIM0#
main62414-0P030-C0i201009-201709
BLACK,TRIM2#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-0P030-A0i201009-201309
SHELL,TRIM0#
main62471-0P030-A1i201309-201709
FLAXEN,TRIM20
main62471-0P030-B1i201009-201309
LIGHT GRAY,TRIM2#
main62471-0P030-B1i201309-201709
LIGHT GRAY,TRIM24
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-09212i201009-201309
62471MCLIP
main90467-10167i201009-201309
62472AGARNISH, ROOF SIDE, INNER LH
main62472-0P030-A0i201009-201309
SHELL,TRIM0#
main62472-0P030-A1i201309-201709
FLAXEN,TRIM20
main62472-0P030-B1i201009-201309
LIGHT GRAY,TRIM2#
main62472-0P030-B1i201309-201709
LIGHT GRAY,TRIM24
62472GCLIP (FOR ROOF SIDE GARNISH)
main90467-10161i201009-201309
62551ACOVER, REAR SEAT SIDE, RH
main62551-0P070-A0i201009-201309
SHELL,TRIM0#
main62551-0P070-C0i201009-201709
BLACK,TRIM2#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
main90467-09212i201009-201309
62552ACOVER, REAR SEAT SIDE, LH
main62552-0P030-A0i201009-201309
SHELL,TRIM0#
main62552-0P030-C0i201009-201709
BLACK,TRIM2#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
main90467-10203i201009-201309
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-22020i201009-201309
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67910-0P010i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)
main67910-0P010i201009-201309
SPORT & WITH(*MR)
main67910-0P010i201009-201309
SPORT & WITH(*MR&*NS)
main67910-0P010i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)
main67910-0P010i201309-201609
main67911-0P010i201009-201309
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67910-0P010i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)
main67910-0P010i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)
main67910-0P010i201009-201309
SPORT & WITH(*MR)
main67910-0P010i201009-201309
SPORT & WITH(*MR&*NS)
main67910-0P010i201309-201609
main67911-0P010i201009-201309
67913PLATE, FRONT DOOR SCUFF, RH
main67913-0P030-A0i201009-201309
SHELL,TRIM0#
main67913-0P030-C0i201009-201709
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-0P030-A0i201009-201309
SHELL,TRIM0#
main67914-0P030-C0i201009-201709
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-0P030i201009-201309
main67930-0P020i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)
main67930-0P020i201009-201309
SPORT & WITH(*MR)
main67930-0P020i201009-201309
SPORT & WITH(*MR&*NS)
main67930-0P020i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)
main67930-0P020i201309-201609
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-0P030i201009-201309
main67940-0P020i201009-201309
SPORT & WITH(*MR&*NS)
main67940-0P020i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)
main67940-0P020i201009-201309
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)
main67940-0P020i201009-201309
SPORT & WITH(*MR)
main67940-0P020i201309-201609
67917APLATE, REAR DOOR SCUFF, RH
main67917-0P030-A0i201009-201309
SHELL,TRIM0#
main67917-0P030-C0i201009-201709
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67918-0P030-A0i201009-201309
SHELL,TRIM0#
main67918-0P030-C0i201009-201709
BLACK,TRIM2#
7102
7104
9016450045
main90164-50045
90164C0011
main90164-C0011

40 parts on this diagram · 1 diagram in section
