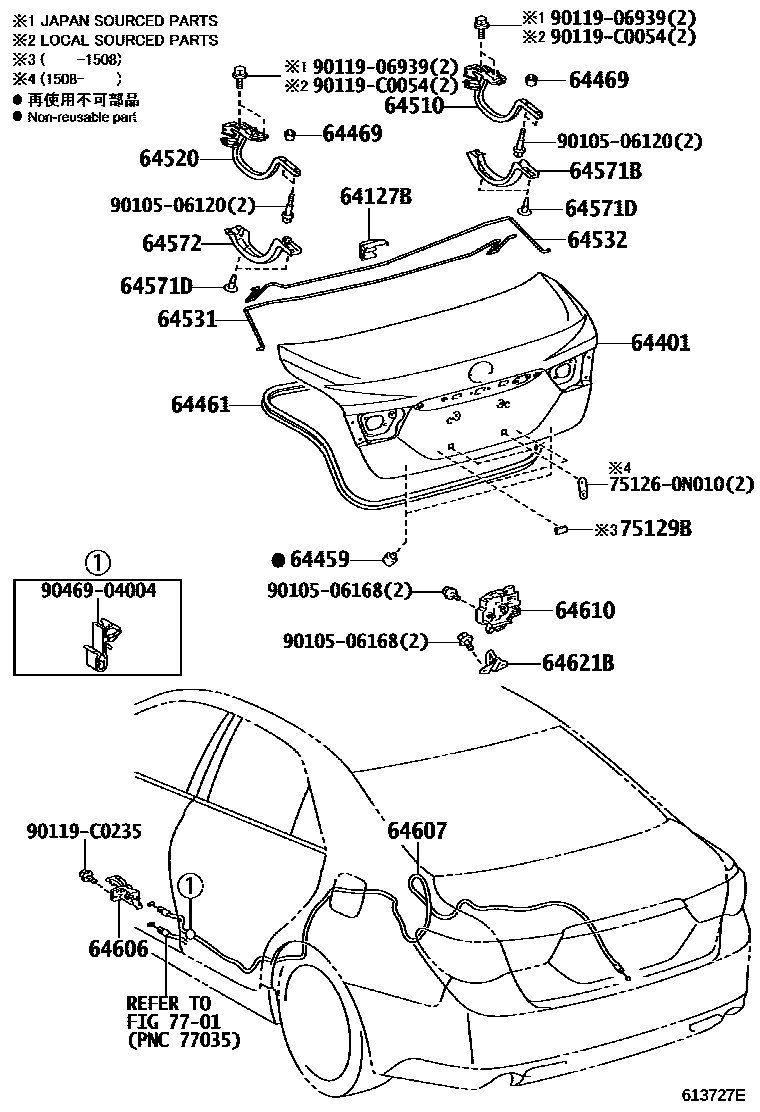

LUGGAGE COMPARTMENT DOOR & LOCK
64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
SPORT & WITH(*MR)
SPORT & W(*MR & *NS); SPORT & W(*MR); WITH(*MR & *NS); WITH(*MR)
WITH(*MR&*NS)
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64469CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
MARK = +
MARK = -
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
MARK = +
MARK = -
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
BLACK,TRIM0#,2#
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
75129BCUSHION, REAR LICENCE PLATE
7701FUEL TANK & TUBE
751260N010STAY, REAR LICENSE PLATE BRACKET, LOWER
main75126-0N010
9010506120
main90105-06120
9010506168
main90105-06168
9011906939
main90119-06939
90119C0054
main90119-C0054
90119C0235
main90119-C0235
9046904004
main90469-04004
25 parts on this diagram · 1 diagram in section
