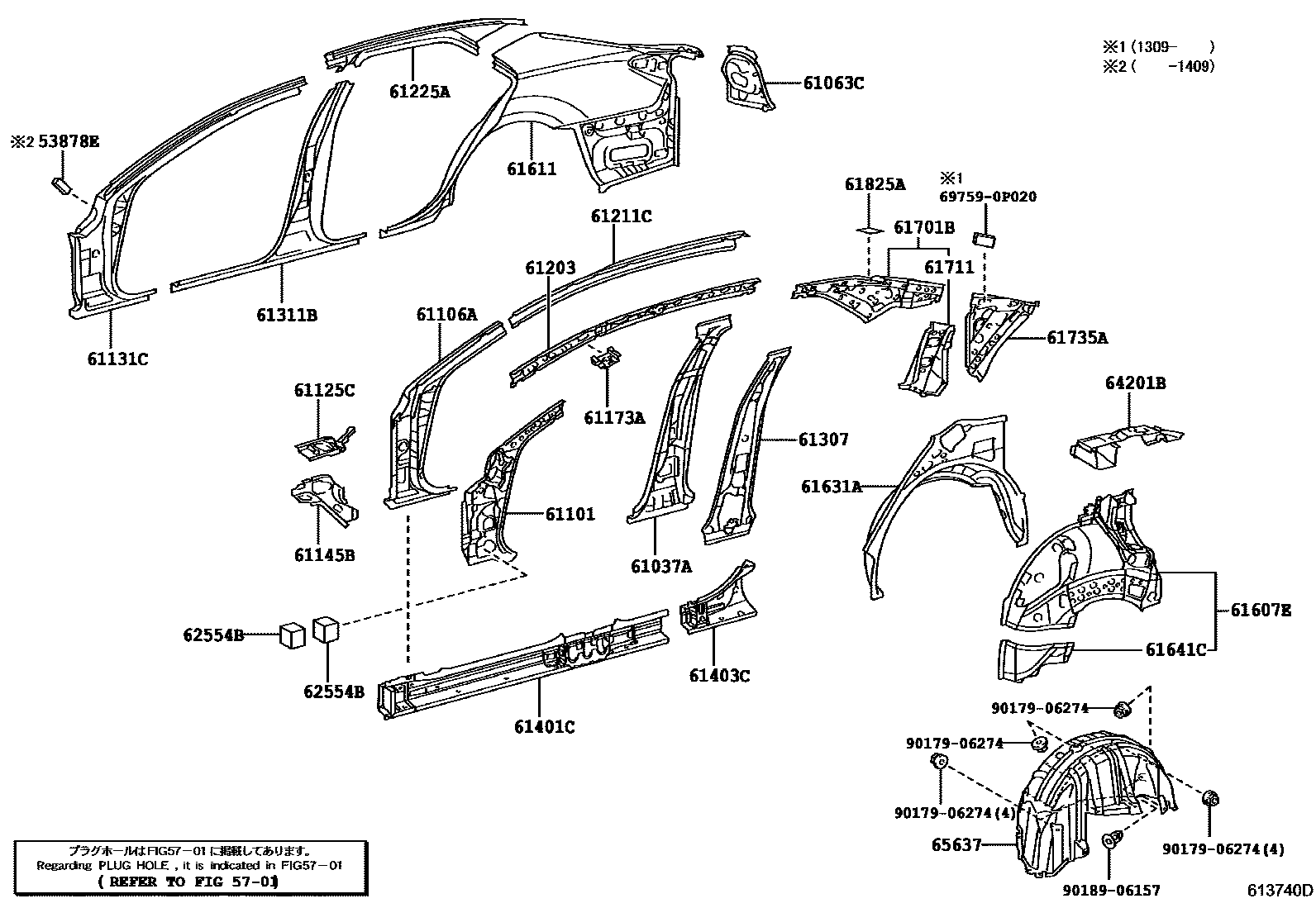

SIDE MEMBER
53878ESPACER, FRONT FENDER
5701HOLE PLUG
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61101PANEL SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61125CREINFORCEMENT, COWL SIDE PANEL, RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211CRAIL, ROOF SIDE, RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH
61711PANEL, ROOF SIDE, OUTER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61825APLATE, NOISE CONTROL, NO.2
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
65637LINER, REAR WHEEL HOUSE, RH
697590P020SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-0P020
9017906274
main90179-06274
9018906157
main90189-06157
31 parts on this diagram · 2 diagrams in section
