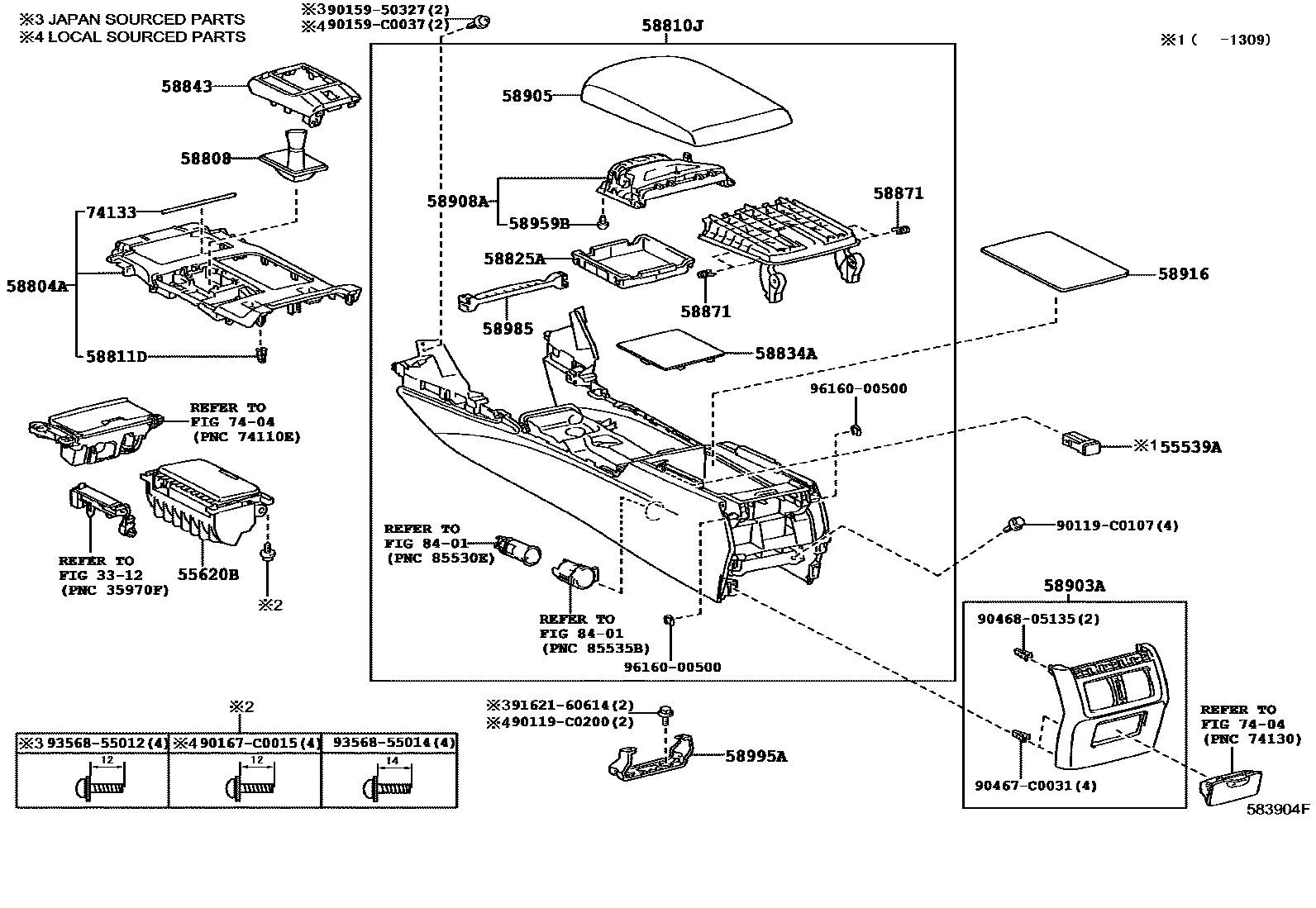

CONSOLE BOX & BRACKET
3312
55539ACOVER, SPARE SWITCH HOLE
55620BHOLDER, INSTRUMENT PANEL CUP
GRAY,TRIM2#
BITTERBLACK,TRIM24
BROWN,TRIM0#
IVORY,TRIM20
58804APANEL SUB-ASSY, CONSOLE, UPPER
BITTERBLACK,TRIM24
IVORY,TRIM20
BITTERBLACK,TRIM24
IVORY,TRIM20
58808COVER SUB-ASSY, SHIFTING HOLE
WITH(*MR),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
SPORT & WITH(*MR),BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
IVORYBLACK,TRIM20
BLACK,TRIM24
IVORYBLACK,TRIM20
BLACK,TRIM24
58811DCLIP(FOR CONSOLE BOX)
58825APOCKET, CONSOLE BOX
58834ACOVER, CONSOLE, LOWER
58843BEZEL, SHIFTING HOLE
58871CUSHION, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
SHELL,TRIM0#
BLACK,TRIM2#
BLACK,TRIM24
BLACK,TRIM20
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
TRIM20
TRIM24
TRIM20
TRIM24
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58985RETAINER, CONSOLE BOX
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
7404
74133SEAL, FRONT ASH RECEPTACLE
8401
90119C0107
main90119-C0107
90119C0200
main90119-C0200
9015950327
main90159-50327
90159C0037
main90159-C0037
90167C0015
main90167-C0015
90467C0031
main90467-C0031
9046805135
main90468-05135
9162160614
main91621-60614
9356855012
main93568-55012
9356855014
main93568-55014
9616000500
main96160-00500
32 parts on this diagram · 1 diagram in section
