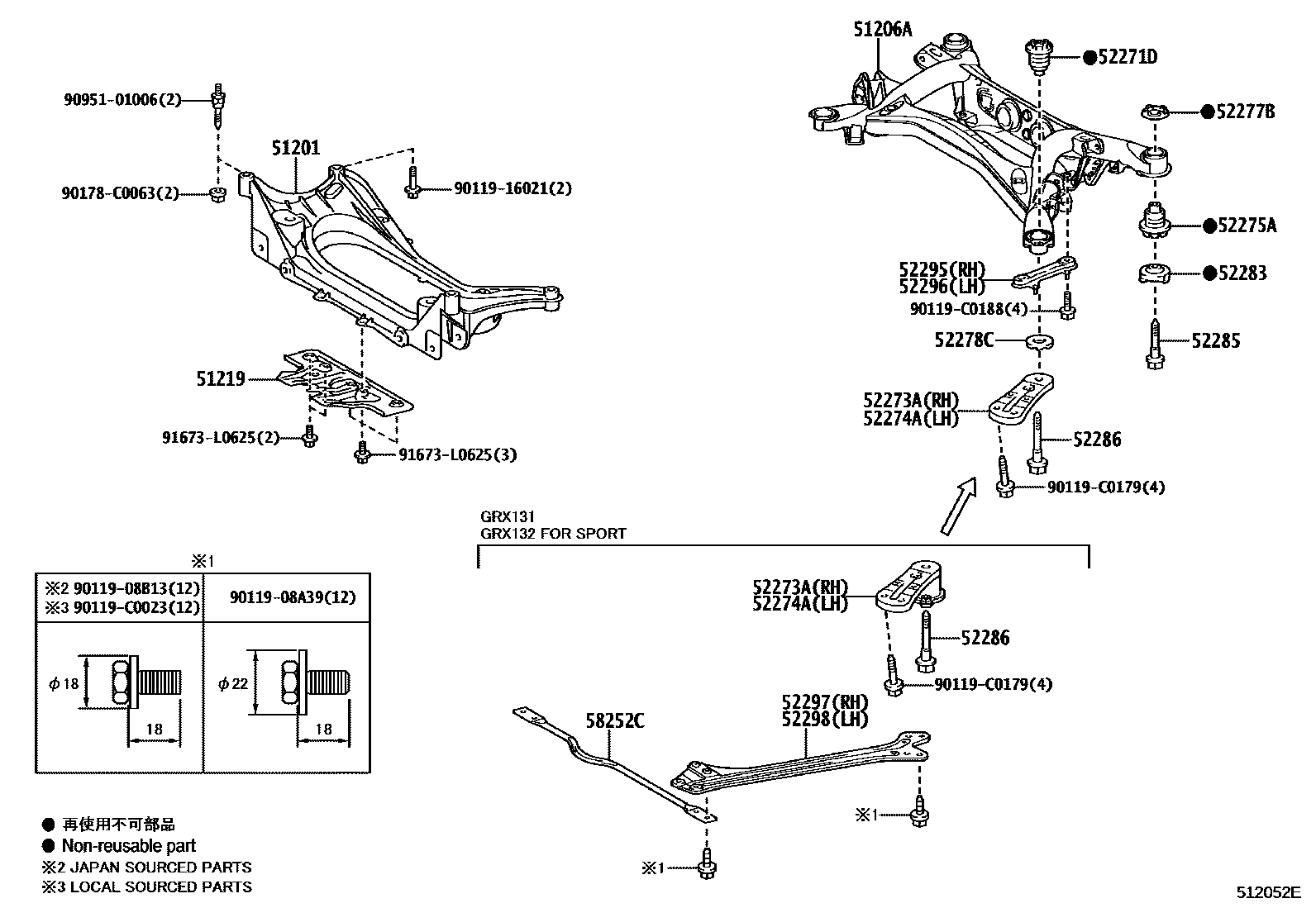

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-0N011i201009-201309

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-0N011i201009-201309

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-0N010i201009-201309

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-0N020×2i201009-201309

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-0P020supersedes 52273-30080i201302-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main52203-30070i201009-201301

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-0P020supersedes 52273-30080i201302-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main52204-30050i201009-201301

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-0N020×2i201009-201309

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-0N010×2i201309

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-0N010×2i201309

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060×2i201309

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2i201309-201502

main90119-14154×2i201502

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020×2i201309-201502

main90119-C0472×2i201502

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-0P010i201009-201309

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-0P010i201009-201309

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-0P010i201309-201609

main52297-30010i201009-201211

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-0P010i201212-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main52298-30010i201009-201211

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-0P010i201212-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main58252-30020i201009-201211

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

9011908A39

main90119-08A39

9011908B13

main90119-08B13

9011916021

main90119-16021

90119C0023

main90119-C0023

90119C0179

main90119-C0179

90119C0188

main90119-C0188

90178C0063

main90178-C0063

9095101006

main90951-01006

91673L0625

main91673-L0625

26 parts on this diagram · 2 diagrams in section
