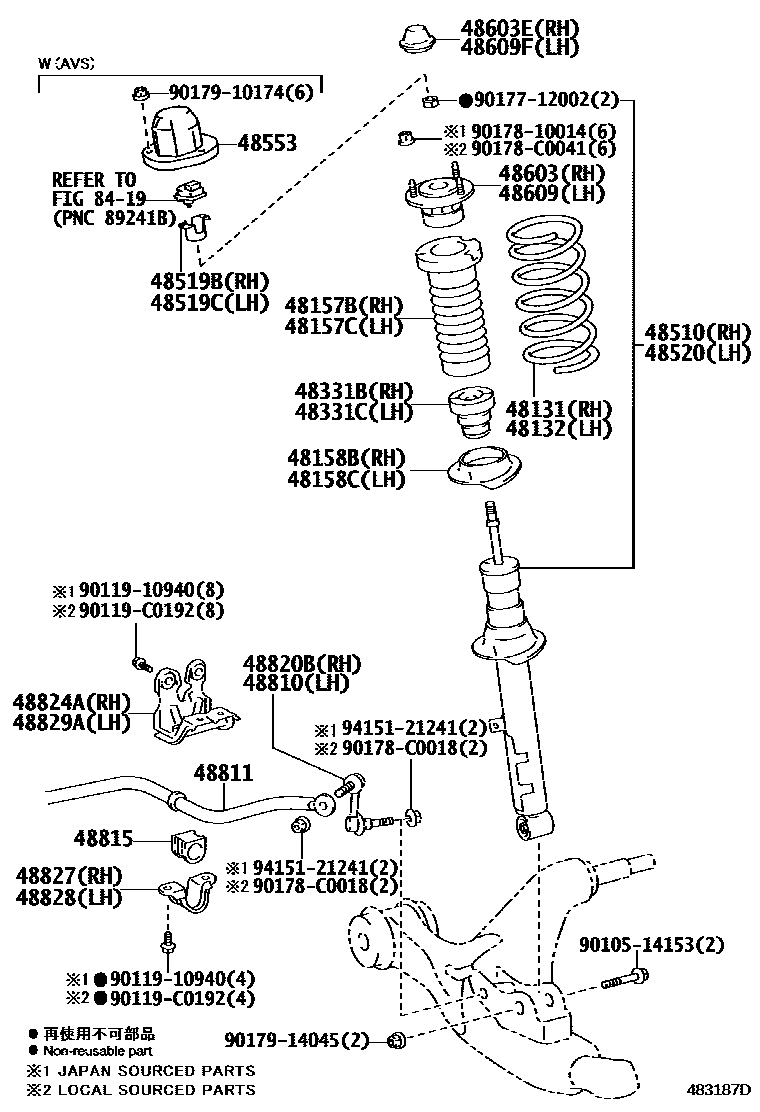

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0P030; MARK 48510-0P030,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); MARK 48510-0P030,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); MARK 48510-0P030,SPORT & WITH(*MR&*NS); MARK 48510-0P030,SPORT & WITH(*MR)
MARK 48510-0P060; MARK 48510-0P060,SPORT & W(*MR & *NS); MARK 48510-0P060,SPORT & W(*MR)
MARK 48510-0P061; MARK 48510-0P061,SPORT & W(*MR & *NS); MARK 48510-0P061,SPORT & W(*MR)
MARK 48510-0P062
MARK 48510-0P040,12/03PACKAGE
MARK 48510-0P070,WITH(*MR & *NS); MARK 48510-0P070,WITH(*MR)
MARK 48510-0P071,WITH(*MR & *NS); MARK 48510-0P071,WITH(*MR)
MARK 48510-0P072,WITH(*MR & *NS); MARK 48510-0P072,WITH(*MR)
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0P060; MARK 48520-0P060,SPORT & W(*MR & *NS); MARK 48520-0P060,SPORT & W(*MR)
MARK 48520-0P030; MARK 48520-0P030,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); MARK 48520-0P030,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); MARK 48520-0P030,SPORT & WITH(*MR&*NS); MARK 48520-0P030,SPORT & WITH(*MR)
MARK 48520-0P061; MARK 48520-0P061,SPORT & W(*MR & *NS); MARK 48520-0P061,SPORT & W(*MR)
MARK 48520-0P062
MARK 48520-0P070,WITH(*MR & *NS); MARK 48520-0P070,WITH(*MR)
MARK 48520-0P040,12/03PACKAGE
MARK 48520-0P071,WITH(*MR & *NS); MARK 48520-0P071,WITH(*MR)
MARK 48520-0P072,WITH(*MR & *NS); MARK 48520-0P072,WITH(*MR)
48553CAP, SHOCK ABSORBER, UPPER
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)
48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
48810LINK ASSY, FRONT STABILIZER, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
8419ELECTRONIC MODULATED SUSPENSION
9010514153
main90105-14153
9011910940
main90119-10940
90119C0192
main90119-C0192
9017712002
main90177-12002
9017810014
main90178-10014
90178C0018
main90178-C0018
90178C0041
main90178-C0041
9017910174
main90179-10174
9017914045
main90179-14045
9415121241
main94151-21241
36 parts on this diagram · 1 diagram in section
