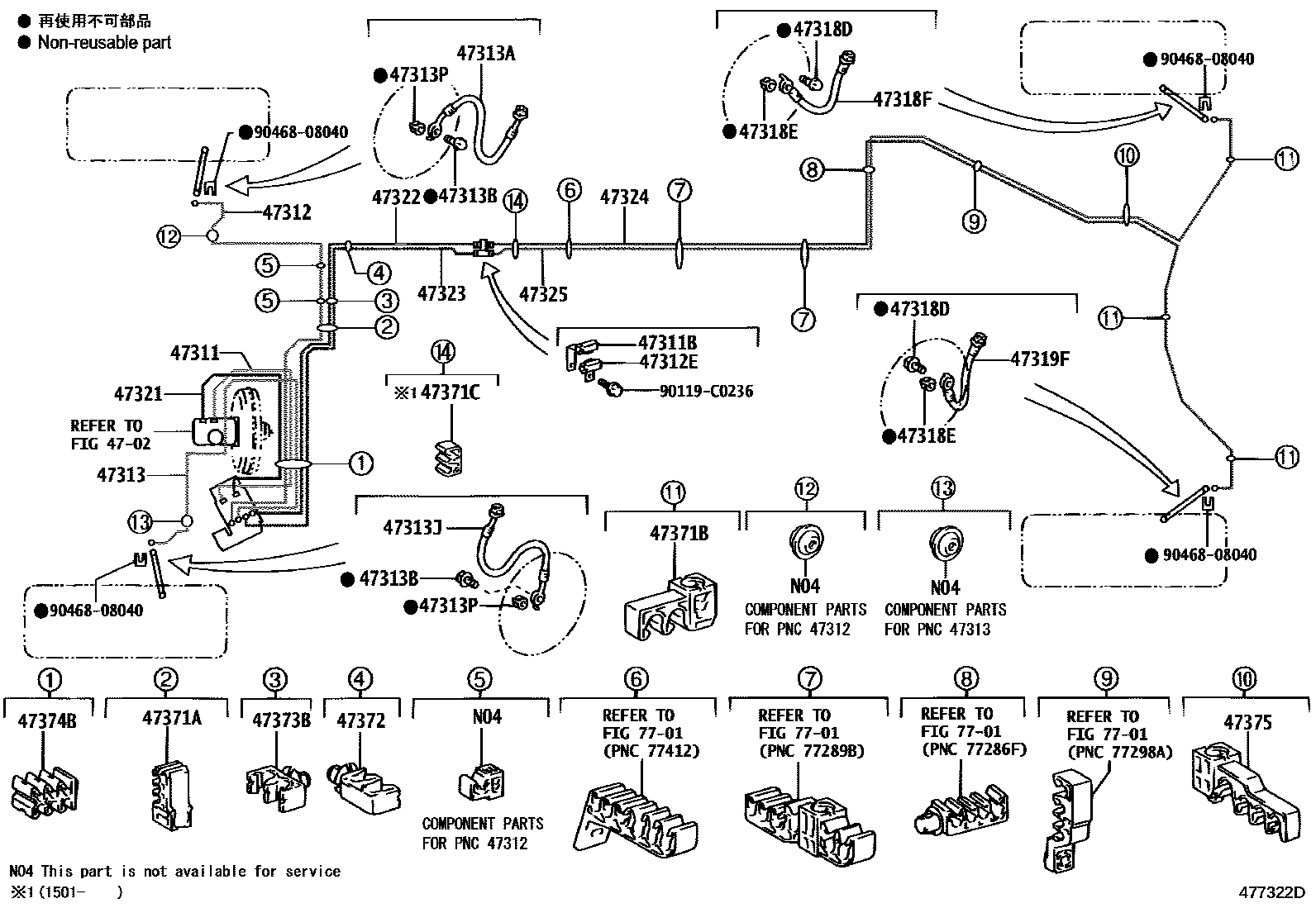

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-0N020iGRX13#201009-201309

main47311-0N030iGRX13#201501

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10250iGRX13#201309-201501

main90412-10292iGRX13#201501-201509

main90412-C0016iGRX13#201510

47312TUBE, FRONT BRAKE, NO.2

main47312-0N020iGRX13#201009-201309

main47312-0N021iGRX13#201501

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10278iGRX13#201009-201309

main90412-10297iGRX13#201501-201509

main90412-C0017iGRX13#201510

47313TUBE, FRONT BRAKE, NO.3

main47313-0N020iGRX13#201009-201309

main47313-0N030iGRX13#201501

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2018iGRX13#201009-201309

main90947-C2072iGRX13#201501

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-C0001×2iGRX13#201009-201309

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2018iGRX13#201009-201309

main90947-C2072iGRX13#201501

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iGRX13#201009-201309

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-C0001×2iGRX13#201009-201309

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGRX13#201009-201309

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2017iGRX13#201009-201309

main90947-C2073iGRX13#201501

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2017iGRX13#201009-201309

main90947-C2073iGRX13#201501

47321TUBE, REAR BRAKE, NO.1

main47321-0N020iGRX13#201009-201309

main47321-0N030iGRX13#201501

47322TUBE, REAR BRAKE, NO.2

main47322-0N020iGRX13#201009-201309

main47322-0N021iGRX13#201501

47323TUBE, REAR BRAKE, NO.3

main47323-0N020iGRX13#201009-201309

main47323-0N021iGRX13#201501

47324TUBE, REAR BRAKE, NO.4

main47324-0N011iGRX13#201009-201309

main47324-0N013iGRX13#201505

47325TUBE, REAR BRAKE, NO.5

main47325-0N011iGRX13#201009-201309

main47325-0N013iGRX13#201505

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D08iGRX13#201009-201309

47371BCLAMP, BRAKE TUBE, NO.6

main90949-T1021×3iGRX13#201009-201309

47371CCLAMP, BRAKE TUBE, NO.7

main90480-01621iGRX13#201505

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1018iGRX13#201009-201309

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1019iGRX13#201009-201309

47374BCLAMP, BRAKE TUBE, NO.4

main90949-T1022iGRX13#201009-201309

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1020iGRX13#201009-201309
