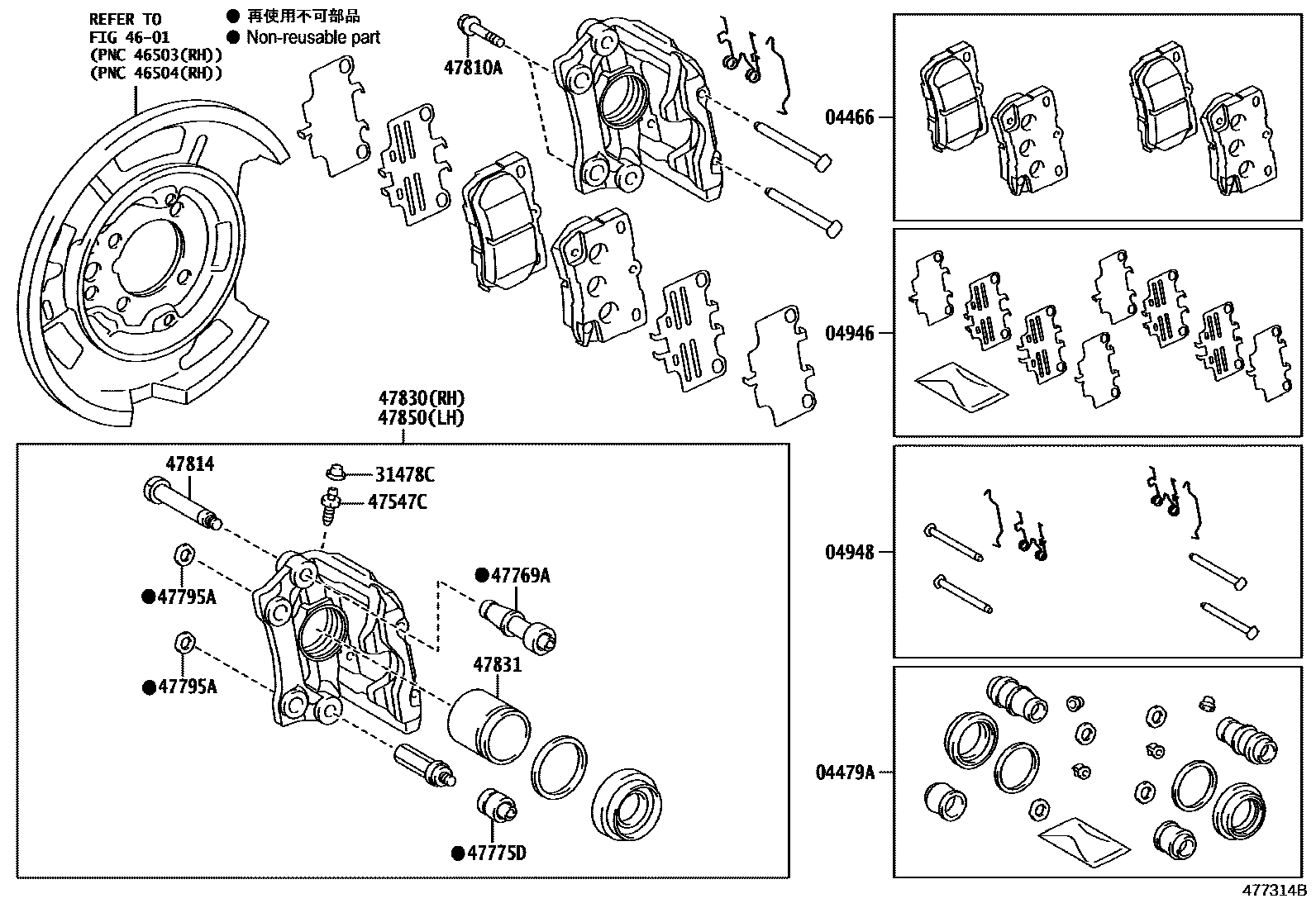

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-30230iGRX13#201009-201309

MARK AK NS254

main04466-30340iGRX13#201501

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0N030iGRX13#201009-201309

main04479-0N040iGRX13#201501

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0P010iGRX13#201009-201309

main04946-0P020iGRX13#201501

04948FITTING KIT, DISC BRAKE, REAR

main04948-0P020iGRX13#201009-201309

main04948-0P030iGRX13#201501

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010×2iGRX13#201009-201309

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iGRX13#201501

main47547-27030×2iGRX13#201009-201309

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-06130×2iGRX13#201501

main47879-0P010×2iGRX13#201009-201309

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-30341×2iGRX13#201009-201309

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iGRX13#201009-201309

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGRX13#201009-201308

main90119-12416×4iGRX13#201308-201309

main90119-C0373×4iGRX13#201412-201709

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06130×2iGRX13#201501

main47814-30300×2iGRX13#201009-201309

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0N041iGRX13#201009-201308

main47830-0N042iGRX13#201308-201309

main47830-0N060iGRX13#201501

47831PISTON, REAR DISC BRAKE

main47831-0N060×2iGRX13#201501

main47831-30300×2iGRX13#201309-201501

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0N030iGRX13#201501

main47850-0N041iGRX13#201009-201308

main47850-0N042iGRX13#201308-201309
