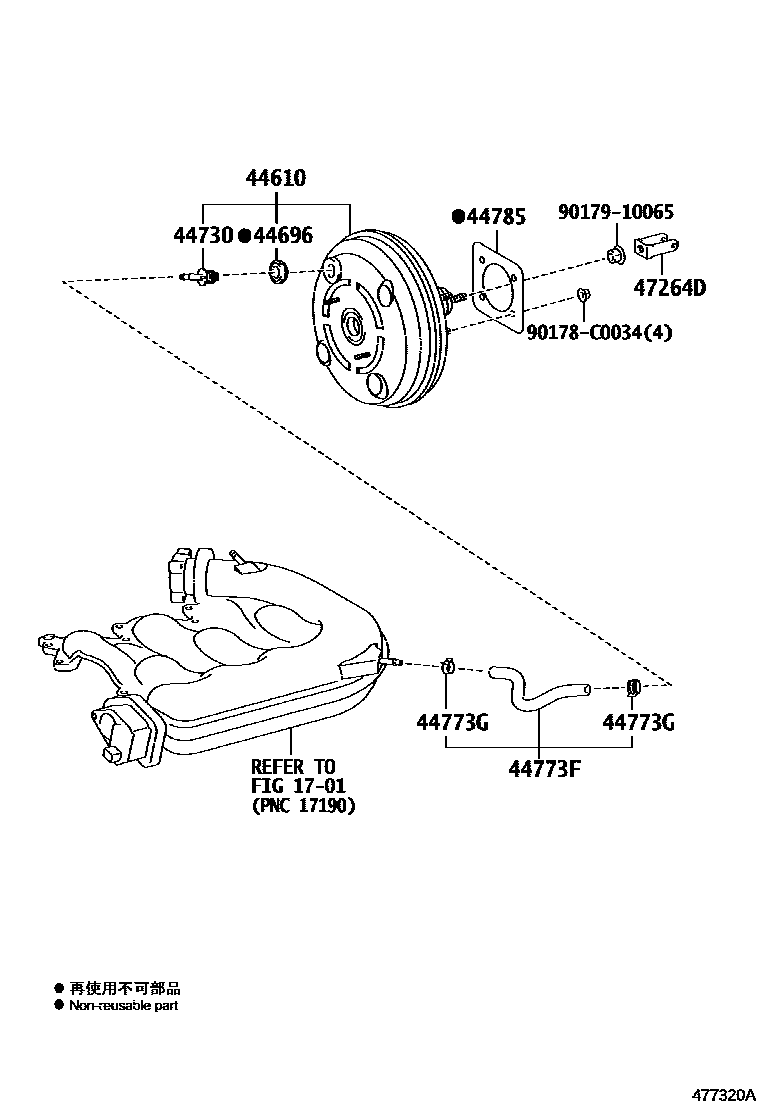

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-0N050iGRX13#201009-201208

main44610-0N051iGRX13#201208-201309

44696GROMMET, CHECK VALVE

main90080-48071iGRX13#201009-201309

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iGRX13#201009-201309

44773FHOSE, UNION TO CHECK VALVE

main44750-0P010iGRX13#201009-201309

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iGRX13#201009-201309

44785GASKET, BRAKE BOOSTER

main44785-47010iGRX13#201009-201309

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0N010iGRX13#201009-201309

90178C0034

main90178-C0034

9017910065

main90179-10065

10 parts on this diagram · 1 diagram in section
