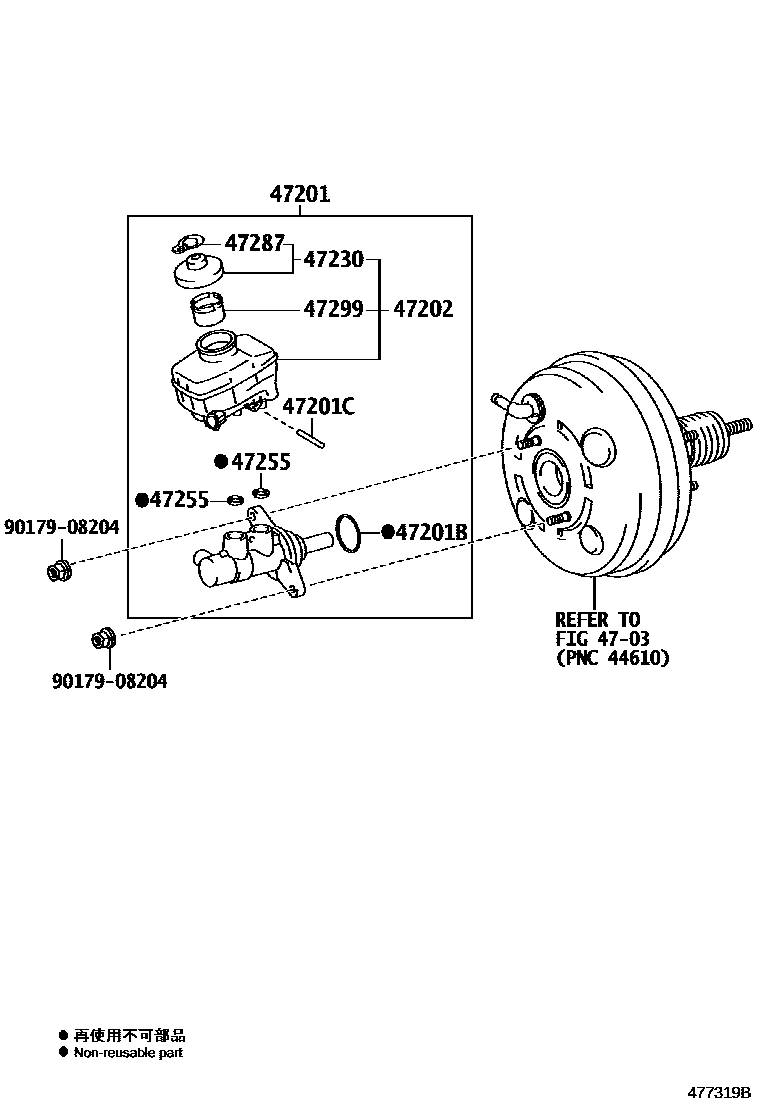

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0N020iGRX13#201009-201202

main47201-0N021iGRX13#201203-201206

main47201-0N022iGRX13#201207-201309

main47201-0N030iGRX13#201412

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGRX13#201009-201309

main90016-AH902iGRX13#201412

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGRX13#201009-201309

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-0N020iGRX13#201009-201309

main47220-0N030iGRX13#201412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02260iGRX13#201009-201309

main47230-0R030iGRX13#201412

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT002×2iGRX13#201412

main90029-48001×2iGRX13#201309-201412

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iGRX13#201412

main47287-20010iGRX13#201309-201412

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGRX13#201009-201309

9017908204

main90179-08204
