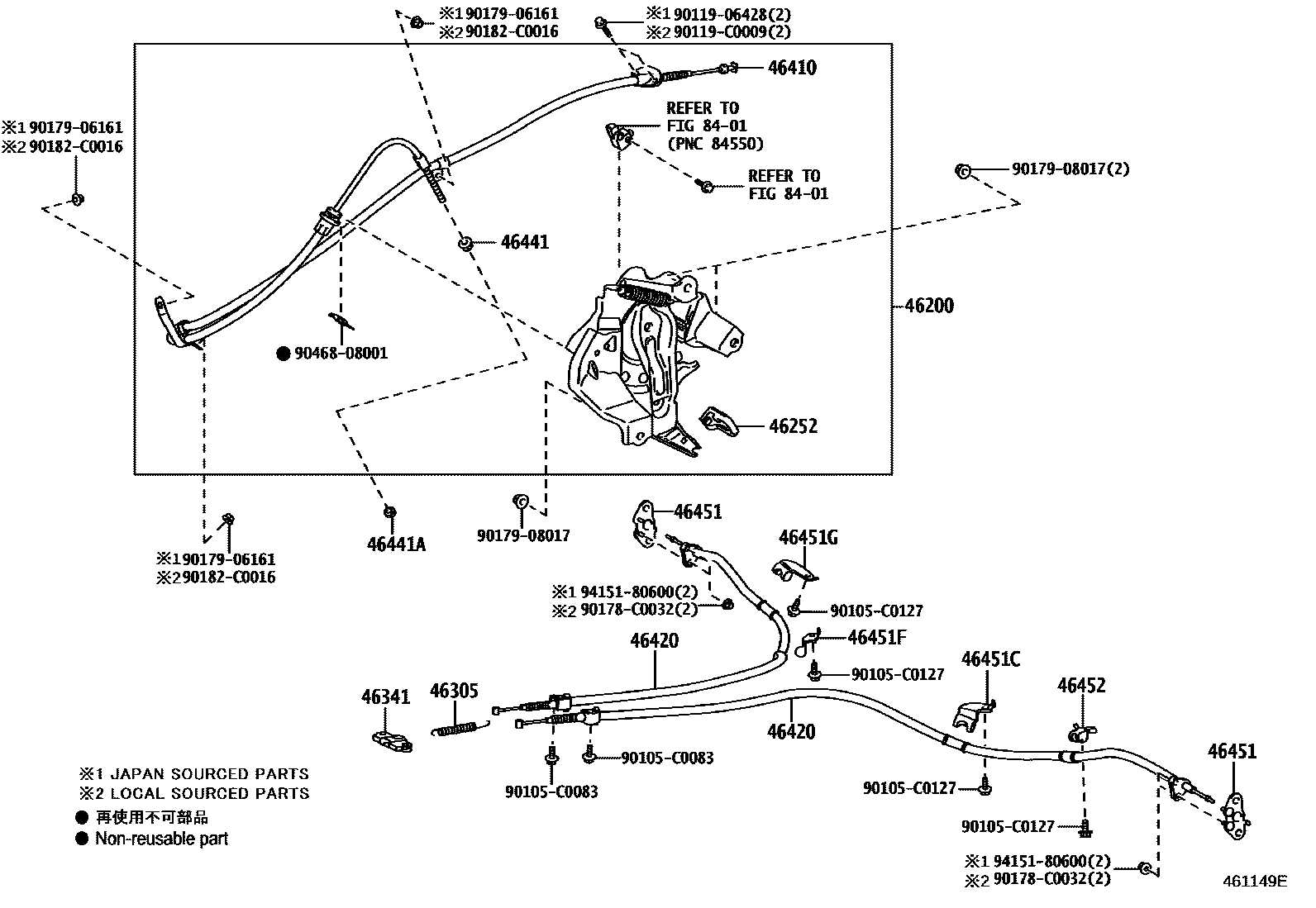

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0P020iGRX13#201309

46252PAD, PARKING PEDAL

main46252-22010iGRX13#201009-201309

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-50020iGRX13#201009-201309

46341EQUALIZER, PARKING BRAKE

main46341-0P010iGRX13#201309

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22300iGRX13#201009-201309

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22391×2iGRX13#201009-201309

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGRX13#201009-201309

46441ANUT, WIRE ADJUSTING, NO.2

main90178-C0032iGRX13#201309

(L)

main94151-80600iGRX13#201309

(J)

46451BRACKET, CABLE SUPPORT

main46451-50050×2iGRX13#201009-201309

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iGRX13#201009-201309

46451FBRACKET, CABLE SUPPORT

main46451-22100iGRX13#201009-201309

46451GBRACKET, CABLE SUPPORT

main46451-30190iGRX13#201009-201309

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iGRX13#201009-201309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0083

main90105-C0083

90105C0127

main90105-C0127

9011906428

main90119-06428

90119C0009

main90119-C0009

90178C0032

main90178-C0032

9017906161

main90179-06161

9017908017

main90179-08017

90182C0016

main90182-C0016

9046808001

main90468-08001

9415180600

main94151-80600

24 parts on this diagram · 3 diagrams in section
