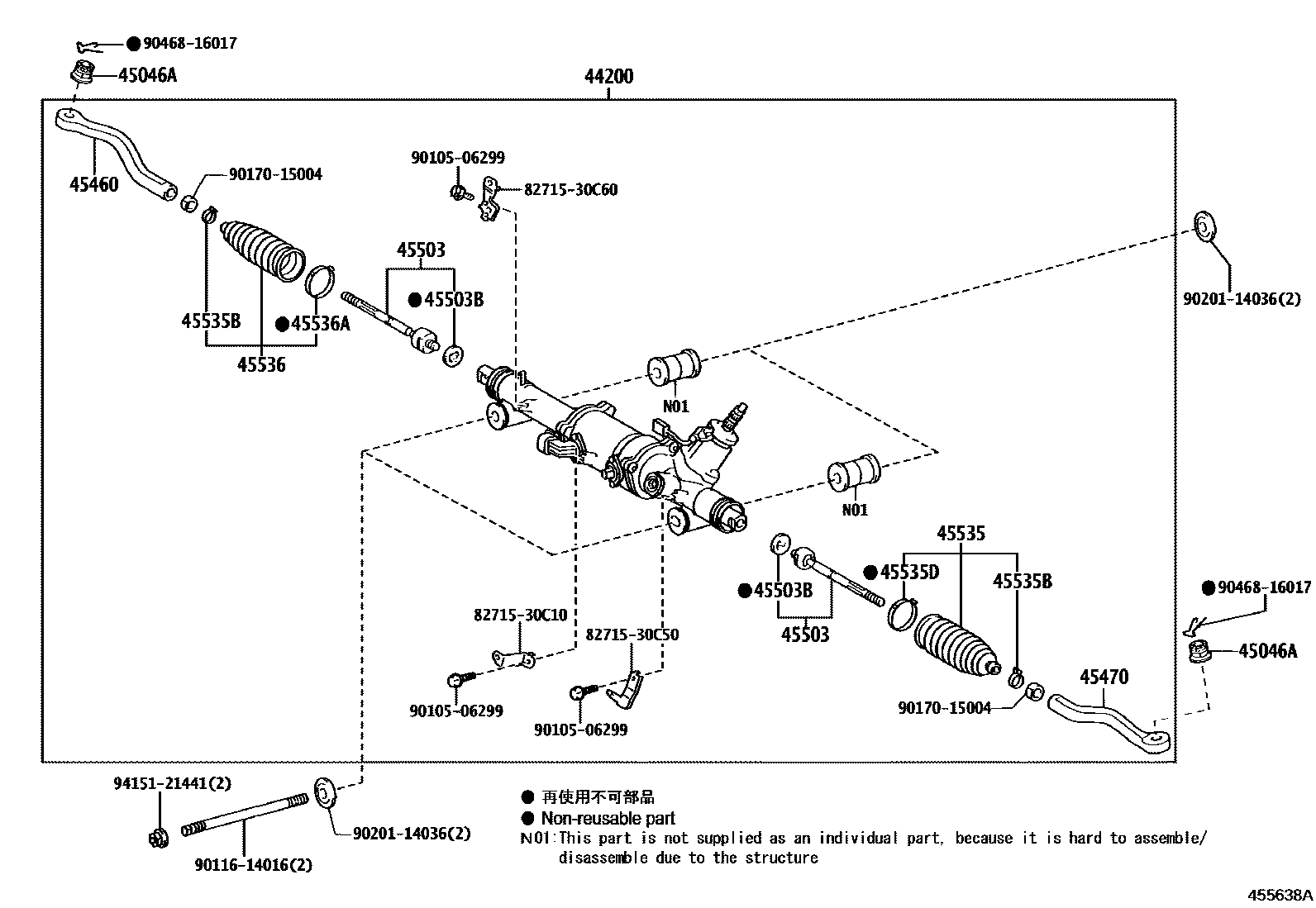

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-30710i201009-201110

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main44200-30711i201206-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

main44200-30B60supersedes 44200-30B50i201111-201206

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL); SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM); SPORT & WITH(*MR&*NS); SPORT & WITH(*MR)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2i201009-201309

45460ROD ASSY, TIE, RH

main45463-30130i201009-201309

45470ROD ASSY, TIE, LH

main45464-30060i201309

45503END SUB-ASSY, STEERING RACK

main45503-39295×2i201009-201309

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2i201309

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-39005i201009-201111

main45535-59045i201309-201312

main45535-59065i201401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2i201009-201309

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010i201309

main90460-55016i201009-201309

45536BOOT, STEERING RACK, NO.2

main45535-39005i201009-201111

main45535-59045i201309-201312

main45535-59065i201401

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016i201009-201309

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C50BRACKET,WIRING HARNESS CLAMP

main82715-30C50

8271530C60BRACKET,WIRING HARNESS CLAMP

main82715-30C60

9010506299

main90105-06299

9011614016

main90116-14016

9017015004

main90170-15004

9020114036

main90201-14036

9046816017

main90468-16017

9415121441

main94151-21441

20 parts on this diagram · 1 diagram in section
