FRONT AXLE HUB

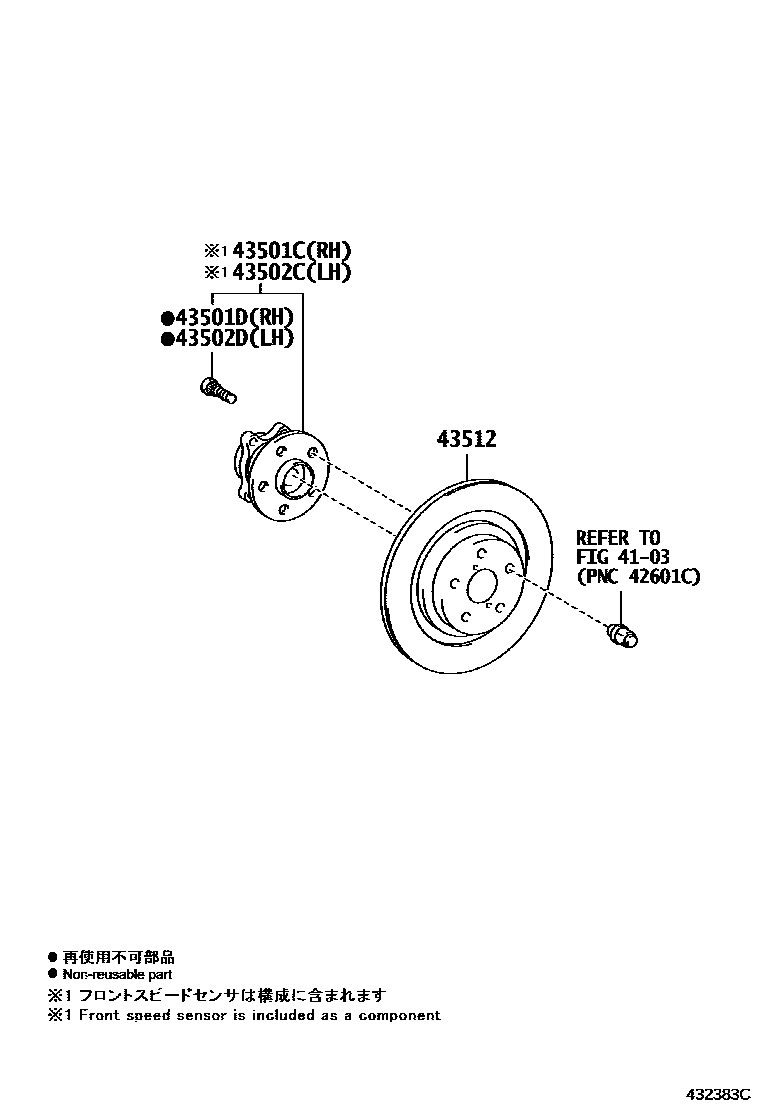

Parts diagram

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0N010i201309-201503

main43550-0N011i201504

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201504

main90942-02070×5i201009-201309

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-0N010i201309-201503

main43560-0N011i201504

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201504

main90942-02070×5i201009-201309

43512DISC, FRONT

main43512-0P010×2i201009-201309

6 parts on this diagram · 1 diagram in section
