42601WHEEL, DISC

main42611-0P050×4supersedes 42611-0P040i201009-201309

18X8J,#,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),TYPE C:REFER ILLUST.; 18X8J,#,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),TYPE C:REFER ILLUST.; 18X8J,#,SPORT & WITH(*MR&*NS),TYPE C:REFER ILLUST.; 18X8J,#,SPORT & WITH(*MR),TYPE C:REFER ILLUST.; 18X8J,#,TYPE C:REFER ILLUST.

main42611-0P060×4i201309-201609

18X8J,#,TYPE D:REFER ILLUST.

main42611-0P070×4i201309

18X8J,#,WITH(*MR & *NS),TYPE C:REFER ILLUST.; 18X8J,#,WITH(*MR),TYPE C:REFER ILLUST.

main42611-0P080×4i201309

18X8J,#,WITH(*MR & *NS),TYPE D:REFER ILLUST.; 18X8J,#,WITH(*MR),TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0P050supersedes 42611-0P040i201009-201309

18X8J,#,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),TYPE C:REFER ILLUST.; 18X8J,#,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),TYPE C:REFER ILLUST.; 18X8J,#,SPORT & WITH(*MR&*NS),TYPE C:REFER ILLUST.; 18X8J,#,SPORT & WITH(*MR),TYPE C:REFER ILLUST.; 18X8J,#,TYPE C:REFER ILLUST.

main42611-0P060i201009-201309

18X8J,#,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL),TYPE D:REFER ILLUST.; 18X8J,#,SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM),TYPE D:REFER ILLUST.; 18X8J,#,SPORT & WITH(*MR&*NS),TYPE D:REFER ILLUST.; 18X8J,#,SPORT & WITH(*MR),TYPE D:REFER ILLUST.; 18X8J,#,TYPE D:REFER ILLUST.

main42611-0P070i201309

18X8J,#,WITH(*MR & *NS),TYPE C:REFER ILLUST.; 18X8J,#,WITH(*MR),TYPE C:REFER ILLUST.

main42611-0P080i201309

18X8J,#,WITH(*MR & *NS),TYPE D:REFER ILLUST.; 18X8J,#,WITH(*MR),TYPE D:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20i201309

(J)

main90942-C1001×20i201309

(L)

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0E040×4i201309

*ALU,TYPE A:REFER ILLUST.

main42603-33180×4i201309

*CHR,WITH(*MR & *NS),TYPE A:REFER ILLUST.; *CHR,WITH(*MR),TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i201309

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201009-201309

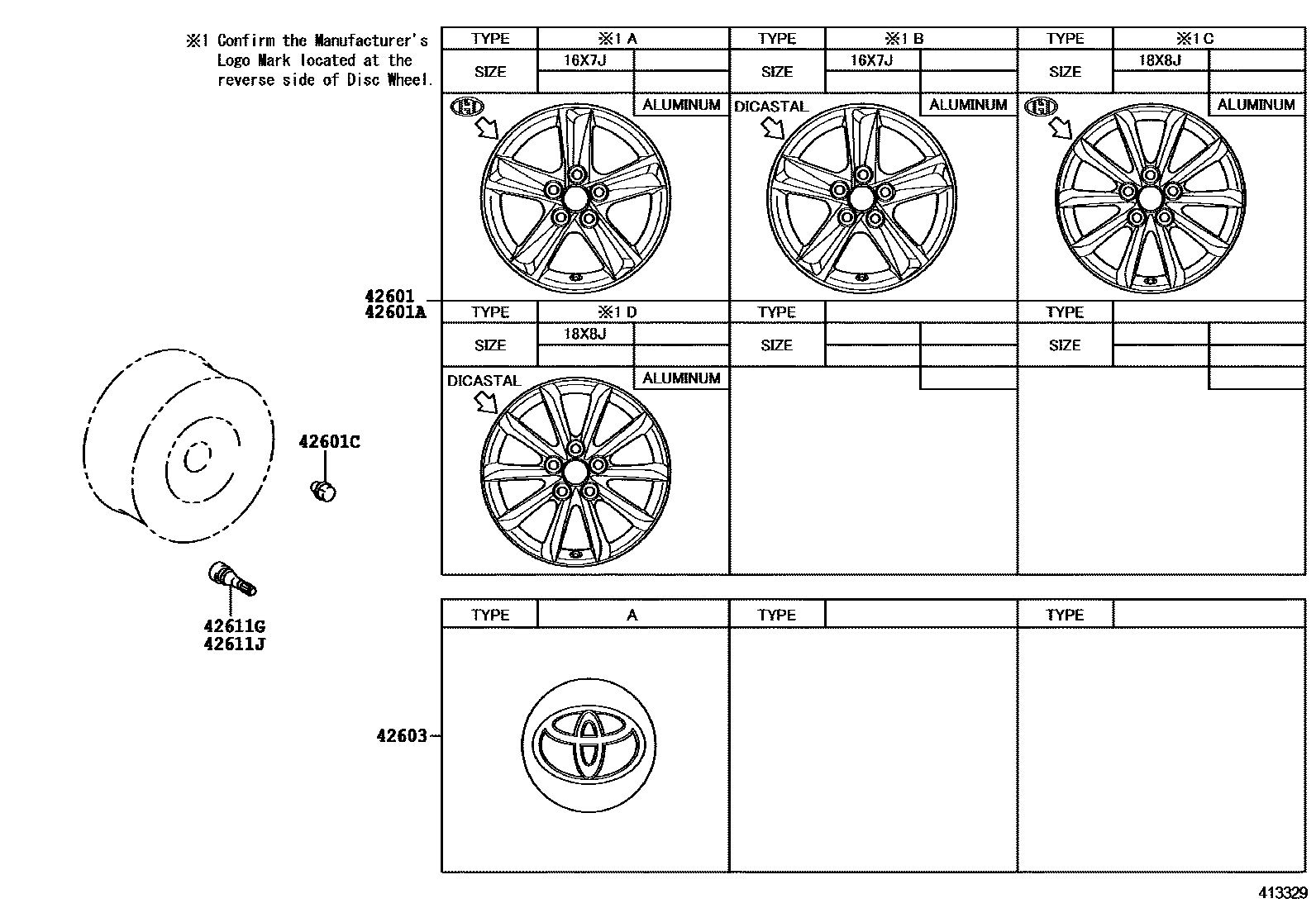

DISC WHEEL & WHEEL CAP
