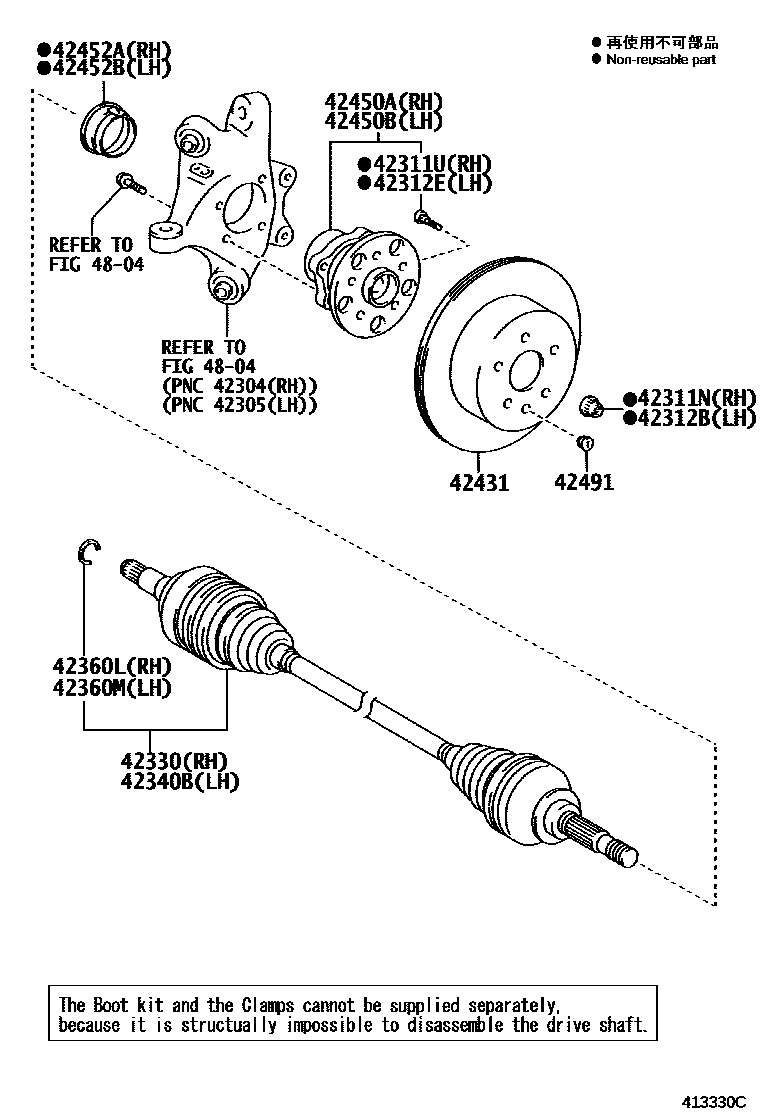

REAR AXLE SHAFT & HUB
42311NNUT(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
42312BNUT(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42330SHAFT ASSY, REAR DRIVE, RH
42340BSHAFT ASSY, REAR DRIVE, LH
42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42431DISC, REAR
42450AHUB & BEARING ASSY, REAR AXLE, RH
42450BHUB & BEARING ASSY, REAR AXLE, LH
42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH
42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
4804REAR SPRING & SHOCK ABSORBER
15 parts on this diagram · 1 diagram in section
