OIL COOLER & TUBE (ATM)

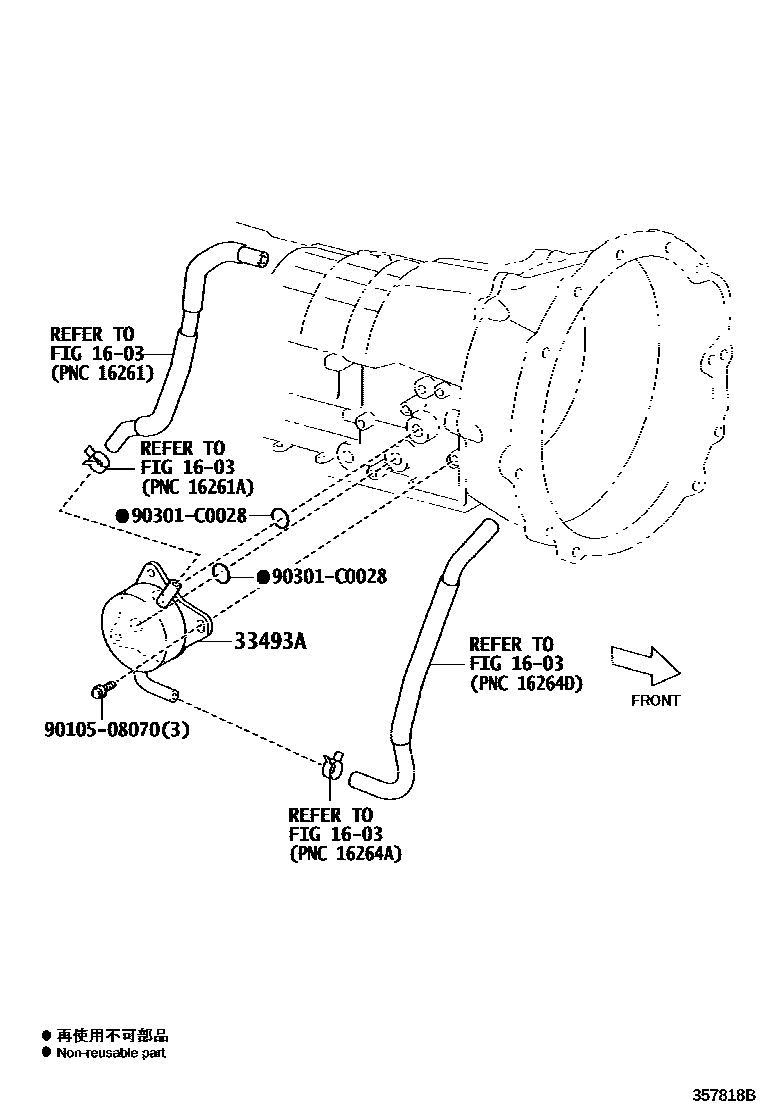

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-30020i201009-201309

9010508070

main90105-08070

90301C0028

main90301-C0028

4 parts on this diagram · 1 diagram in section
