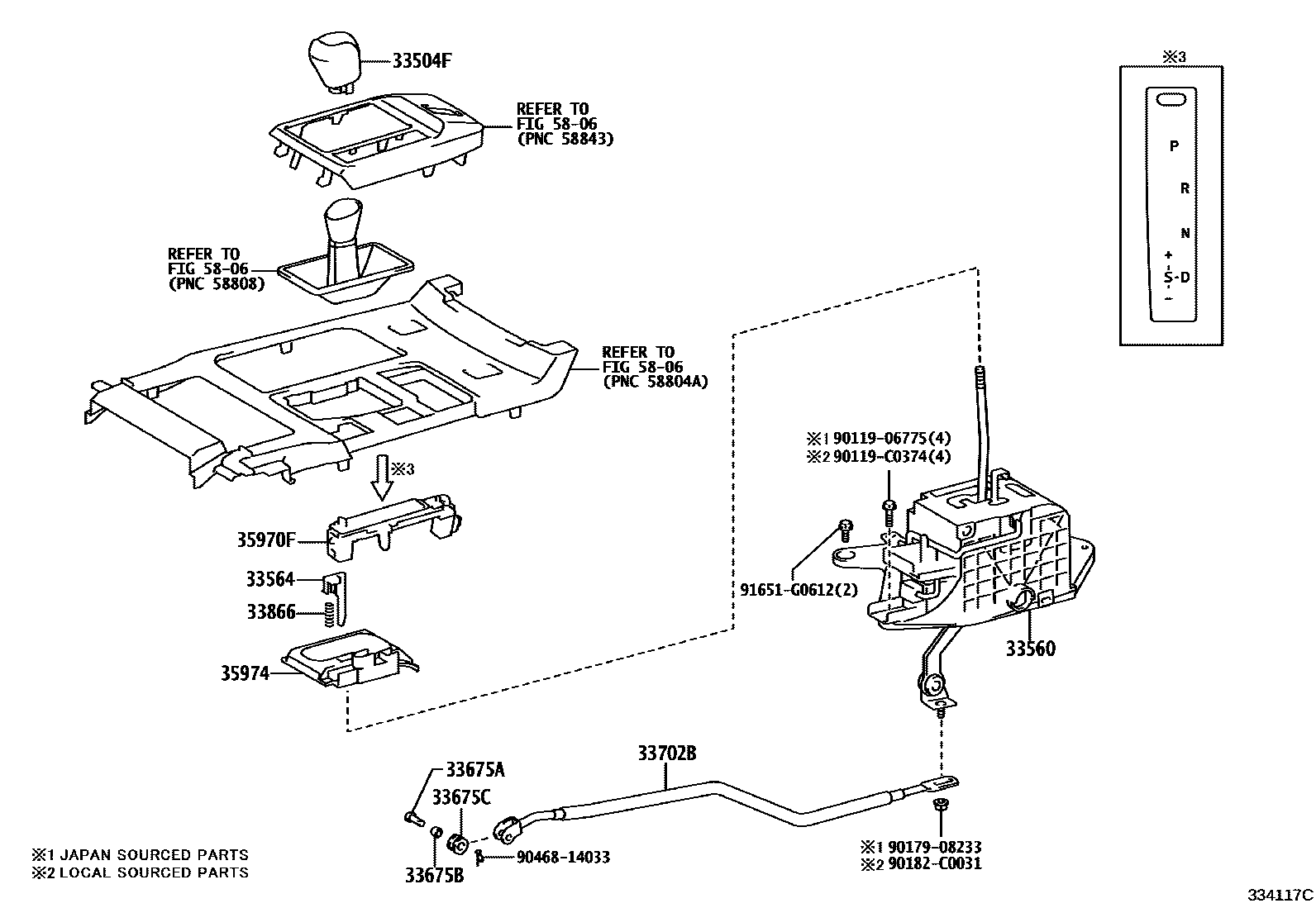

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0P010-C0iGRX132..30V201009-201309

WITH(*MR),BLACK,TRIM0#,2#

main33504-0P010-C0iGRX13#..25S,25V201009-201309

BLACK,TRIM0#,2#

main33504-0P010-C0iGRX13#..25S,25V201309-201709

BLACK,TRIM2#

main33504-0P010-C0iGRX132..30V201009-201309

SPORT & WITH(*MR),BLACK,TRIM0#,2#

main33504-22230-C0iGRX132..30V201009-201309

BLACK,TRIM0#,2#

main33504-22230-C0iGRX132..30V201309-201709

BLACK,TRIM2#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0P010iGRX132201009-201309

main33560-0P020iGRX132..25S201009-201309

SPORT & WITH(*MR&*NS)

main33560-0P020iGRX132..25S201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM)

main33560-0P020iGRX132..25S201009-201309

SPORT & W(*MR&*NS&*PSB&*PBA&*VDIM&*AFSL)

main33560-0P020iGRX132..25S201009-201309

SPORT & WITH(*MR)

main33560-0P020iGRX131201309-201609

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-0N020iGRX13#201009-201309

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iGRX13#201009-201309

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGRX13#201009-201709

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGRX13#201009-201709

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-0N010iGRX13#201506

main33702-22140iGRX13#201009-201506

33866SPRING, SHIFT LOCK RELEASE

main33866-50010iGRX13#201009-201309

35970FHOUSING ASSY, POSITION INDICATOR

main35970-22120iGRX13#201009-201309

main35970-22130iGRX13#201309

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0N020iGRX13#201009-201309

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9011906775

main90119-06775

90119C0374

main90119-C0374

9017908233

main90179-08233

90182C0031

main90182-C0031

9046814033

main90468-14033

91651G0612

main91651-G0612

17 parts on this diagram · 1 diagram in section
