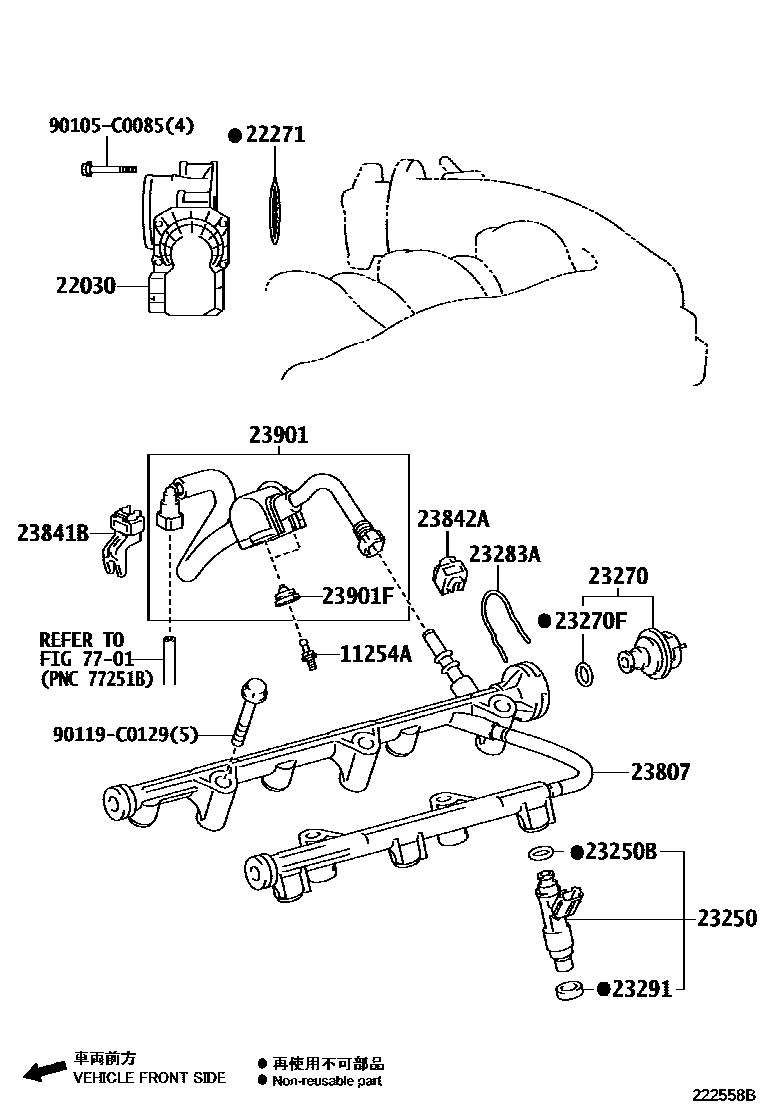

FUEL INJECTION SYSTEM

11254ABRACKET, V-BANK COVER

main11254-31020×2i3GRFE,5GRFE..GRX13#201309

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P040i3GRFE,5GRFE..GRX13#201009-201309

22271GASKET, THROTTLE BODY

main22271-31030i3GRFE,5GRFE..GRX13#201009-201309

23250INJECTOR ASSY, FUEL

main23209-0P060×6i3GRFE,5GRFE..GRX13#201009-201309

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i3GRFE,5GRFE..GRX13#201009-201309

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31080i3GRFE,5GRFE..GRX13#201009-201309

main23270-31140i3GRFE,5GRFE..GRX13#201412

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033i3GRFE,5GRFE..GRX13#201009-201309

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i3GRFE,5GRFE..GRX13#201309

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020×6i3GRFE,5GRFE..GRX13#201009-201309

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31030i3GRFE,5GRFE..GRX13#201009-201309

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0H030i3GRFE,5GRFE..GRX13#201508

(L)

main23841-21050i3GRFE,5GRFE..GRX13#201508

(J)

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i3GRFE,5GRFE..GRX13#201009-201309

23901TUBE SUB-ASSY, FUEL

main23901-31131i3GRFE,5GRFE..GRX13#201009-201309

main23901-31170i3GRFE,5GRFE..GRX13#201412

23901FGROMMET(FOR FUEL TUBE)

main90480-22024×2i3GRFE,5GRFE..GRX13#201009-201309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

90105C0085

main90105-C0085

90119C0129

main90119-C0129

17 parts on this diagram · 1 diagram in section
