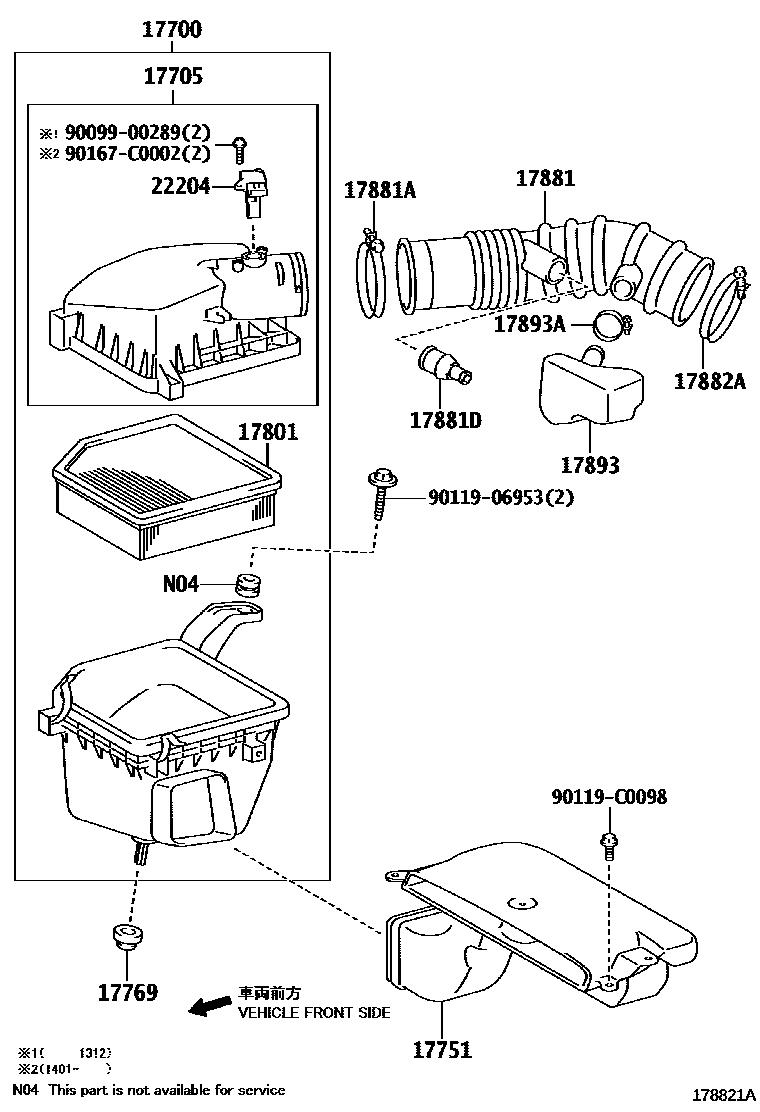

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-0P060i3GRFE,5GRFE..GRX13#201309

17705CAP SUB-ASSY, AIR CLEANER

main17705-0P110i3GRFE,5GRFE..GRX13#201009-201309

17751INLET, AIR CLEANER, NO.1

main17751-0P150i3GRFE,5GRFE..GRX13#201009-201309

17769SUPPORT, AIR CLEANER

main17769-0P010i3GRFE,5GRFE..GRX13#201302-201309

(L)

main17769-0P020i3GRFE,5GRFE..GRX13#201408

(L)

main17769-31020i3GRFE,5GRFE..GRX13#201309-201407

(J)

main17769-31030i3GRFE,5GRFE..GRX13#201408

(J)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0V050i3GRFE,5GRFE..GRX13#201404

main17801-31100i3GRFE,5GRFE..GRX13#201009-201107

main17801-31170i3GRFE,5GRFE..GRX13#201112-201309

17881HOSE, AIR CLEANER, NO.1

main17881-0P020i3GRFE,5GRFE..GRX13#201009-201309

main17881-0P021i3GRFE,5GRFE..GRX13#201507

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i3GRFE,5GRFE..GRX13#201009-201309

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main17878-0V030i3GRFE,5GRFE..GRX13#201205-201309

main90904-06008i3GRFE,5GRFE..GRX13#201009-201204

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010i3GRFE,5GRFE..GRX13#201502-201507

main96111-10850i3GRFE,5GRFE..GRX13#201309-201502

17893RESONATOR, INTAKE AIR

main17893-0P020i3GRFE,5GRFE..GRX13#201009-201309

17893ACLAMP, HOSE

main96111-10330i3GRFE,5GRFE..GRX13#201009-201309

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0P020i3GRFE,5GRFE..GRX13#201009-201103

main22204-28010i3GRFE,5GRFE..GRX13#201104-201309

MARK 22204-28010

9009900289

main90099-00289

9011906953

main90119-06953

90119C0098

main90119-C0098

90167C0002

main90167-C0002

16 parts on this diagram · 1 diagram in section
