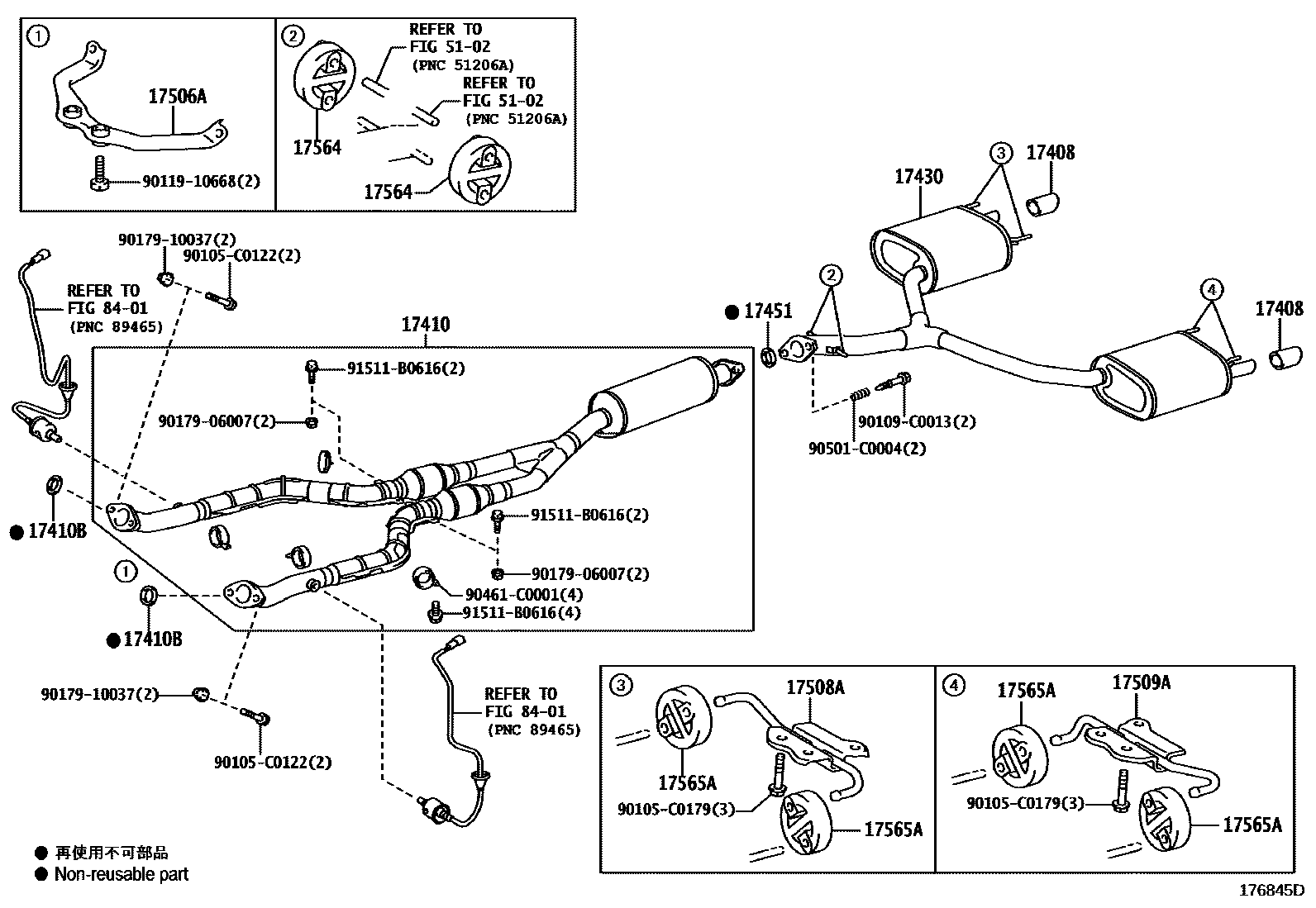

EXHAUST PIPE

0001 1 0002 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-0P040×2i3GRFE,5GRFE..GRX13#201009-201309

17410PIPE ASSY, EXHAUST, FRONT

main17410-0P300i3GRFE,5GRFE..GRX13#201009-201309

main17410-0P440i3GRFE,5GRFE..GRX13#201309

17410BGASKET, EXHAUST PIPE

main90917-06078×2i3GRFE,5GRFE..GRX13#201009-201212

main90917-C6001×2i3GRFE,5GRFE..GRX13#201301-201309

17430PIPE ASSY, EXHAUST, TAIL

main17430-0P280i3GRFE,5GRFE..GRX13#201009-201309

17451GASKET, EXHAUST PIPE

main17451-0P011i3GRFE,5GRFE..GRX13#201009-201101

main17451-0P012i3GRFE,5GRFE..GRX13#201102-201309

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-31030i3GRFE,5GRFE..GRX13#201009-201309

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-31080i3GRFE,5GRFE..GRX13#201009-201309

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-31040i3GRFE,5GRFE..GRX13#201009-201309

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T010×2i3GRFE,5GRFE..GRX13#201009-201309

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D070×4i3GRFE,5GRFE..GRX13#201009-201309

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105C0122

main90105-C0122

90105C0179

main90105-C0179

90109C0013

main90109-C0013

9011910668

main90119-10668

9017906007

main90179-06007

9017910037

main90179-10037

90461C0001

main90461-C0001

90501C0004

main90501-C0004

91511B0616

main91511-B0616

21 parts on this diagram · 2 diagrams in section
