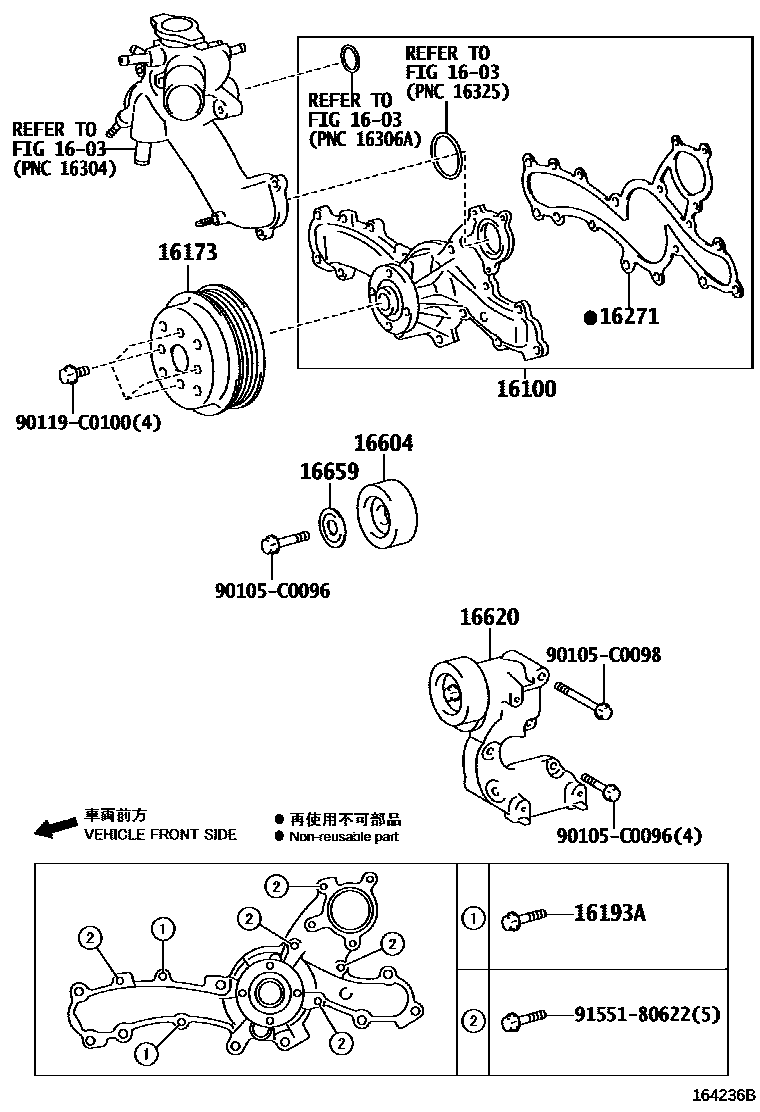

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09361i3GRFE,5GRFE..GRX13#201009-201309

16173PULLEY, WATER PUMP

main16173-0P020i3GRFE,5GRFE..GRX13#201009-201309

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i3GRFE,5GRFE..GRX13#201009-201309

16271GASKET, WATER PUMP

main16271-0P020i3GRFE,5GRFE..GRX13#201009-201309

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-0P030i3GRFE,5GRFE..GRX13#201009-201309

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P020i3GRFE,5GRFE..GRX13#201009-201206

main16620-0P021i3GRFE,5GRFE..GRX13#201206-201309

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-31011i3GRFE,5GRFE..GRX13#201009-201309

90105C0096

main90105-C0096

90105C0098

main90105-C0098

90119C0100

main90119-C0100

9155180622

main91551-80622

12 parts on this diagram · 1 diagram in section
