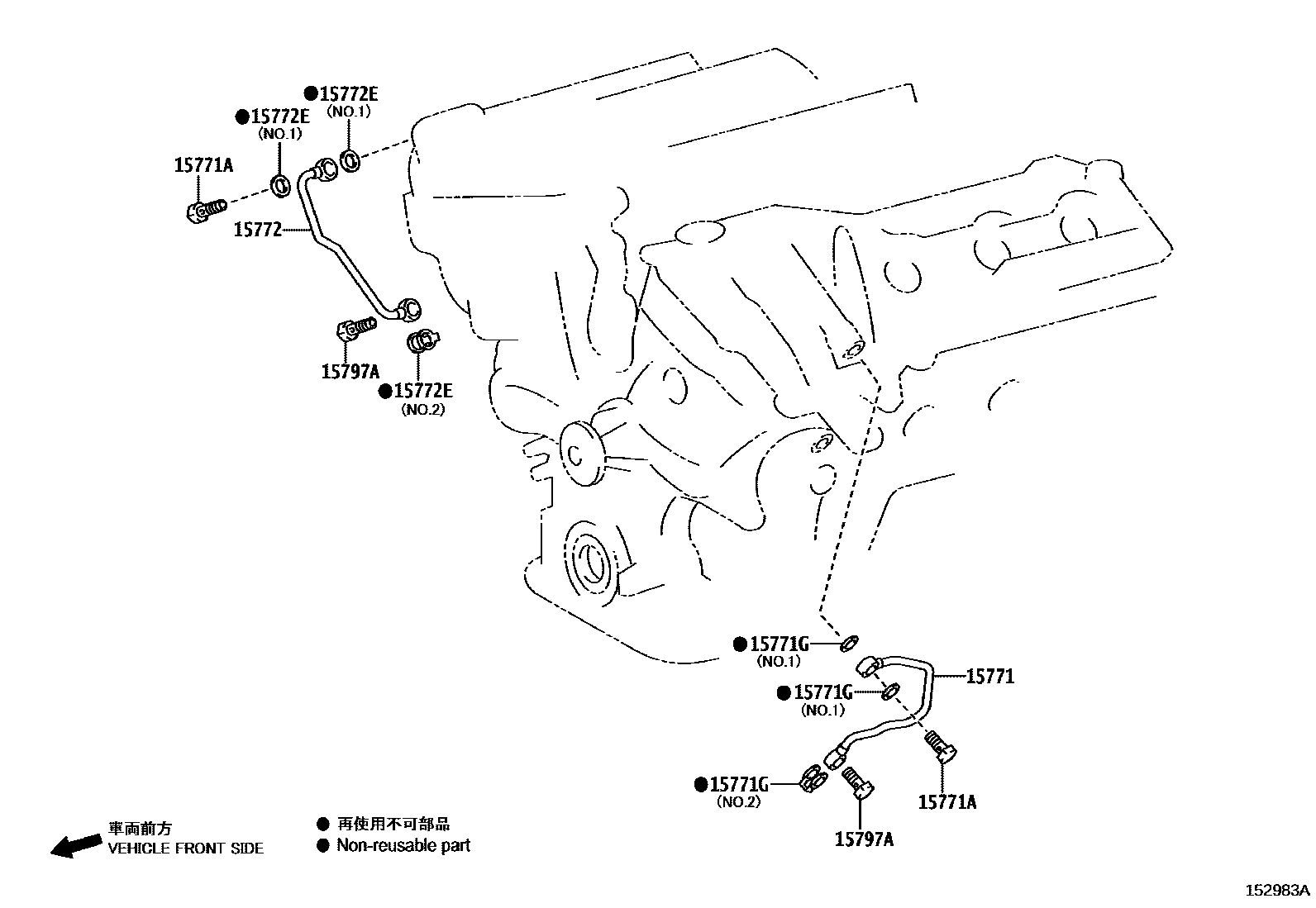

ENGINE OIL COOLER

15771PIPE, OIL, NO.1

main15771-0P010i3GRFE,5GRFE..GRX13#201009-201309

15771AUNION(FOR OIL PIPE)

main90401-16043×2i3GRFE,5GRFE..GRX13#201009-201309

15771GGASKET

main90430-16012×2i3GRFE,5GRFE..GRX13#201009-201309

NO.1

main90430-16016i3GRFE,5GRFE..GRX13#201309

NO.2

15772PIPE, OIL, NO.2

main15772-0P010i3GRFE,5GRFE..GRX13#201009-201309

15772EGASKET(FOR OIL PIPE)

main90430-16012×2i3GRFE,5GRFE..GRX13#201009-201309

NO.1

main90430-16016i3GRFE,5GRFE..GRX13#201009-201309

NO.2

15797ABOLT, OIL CHECK VALVE

main15797-31010×2i3GRFE,5GRFE..GRX13#201009-201309

6 parts on this diagram · 1 diagram in section
