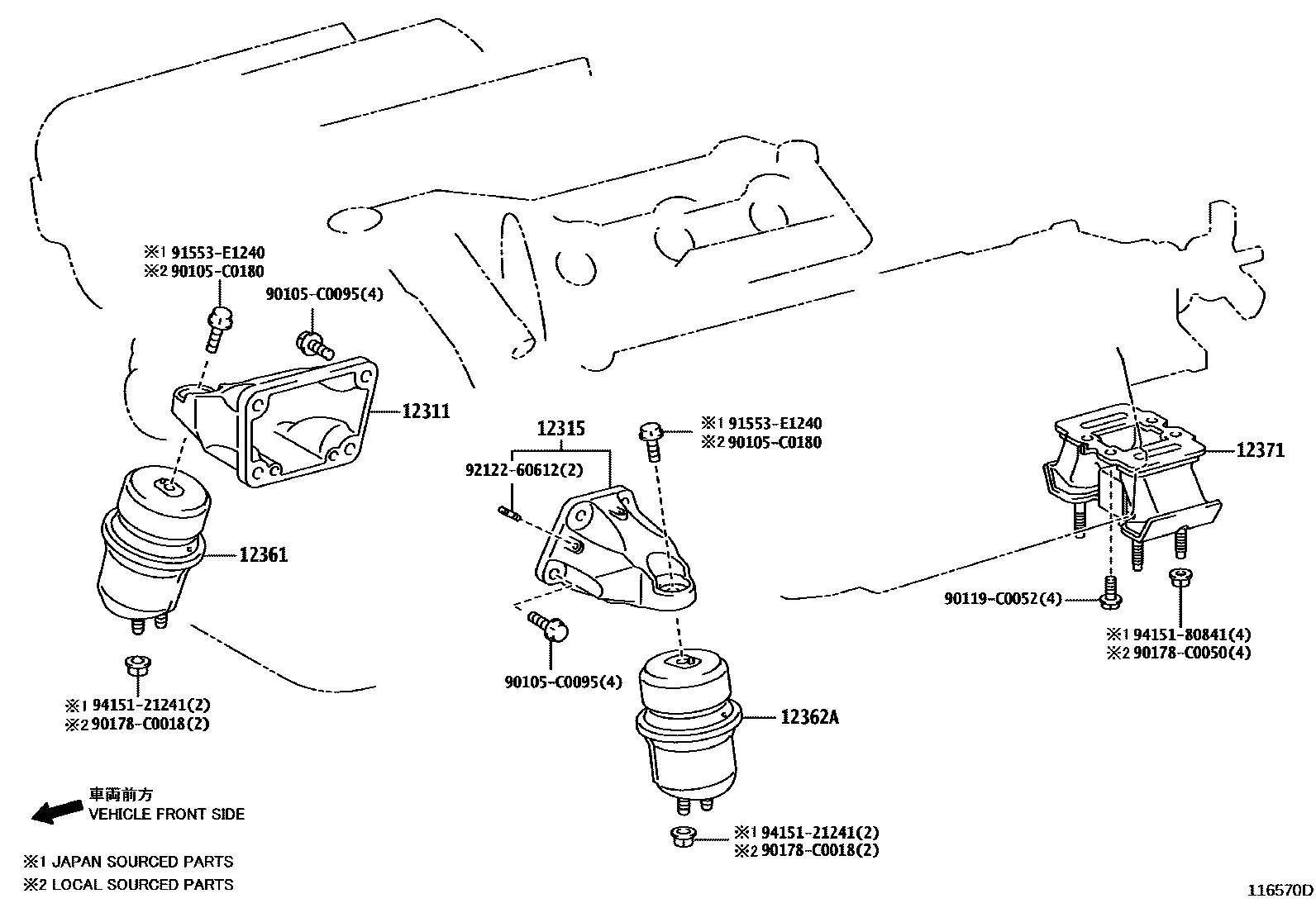

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0P040i3GRFE,5GRFE..GRX13#201009-201309

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-0P010i3GRFE,5GRFE..GRX13#201009-201309

12361INSULATOR, ENGINE MOUNTING, FRONT

main12360-0P060i3GRFE,5GRFE..GRX13#201009-201309

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12380-0P050i3GRFE,5GRFE..GRX13#201009-201309

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-0P090i3GRFE,5GRFE..GRX13#201009-201309

90105C0095

main90105-C0095

90105C0180

main90105-C0180

90119C0052

main90119-C0052

90178C0018

main90178-C0018

90178C0050

main90178-C0050

91553E1240

main91553-E1240

9212260612

main92122-60612

9415121241

main94151-21241

9415180841

main94151-80841

14 parts on this diagram · 1 diagram in section
