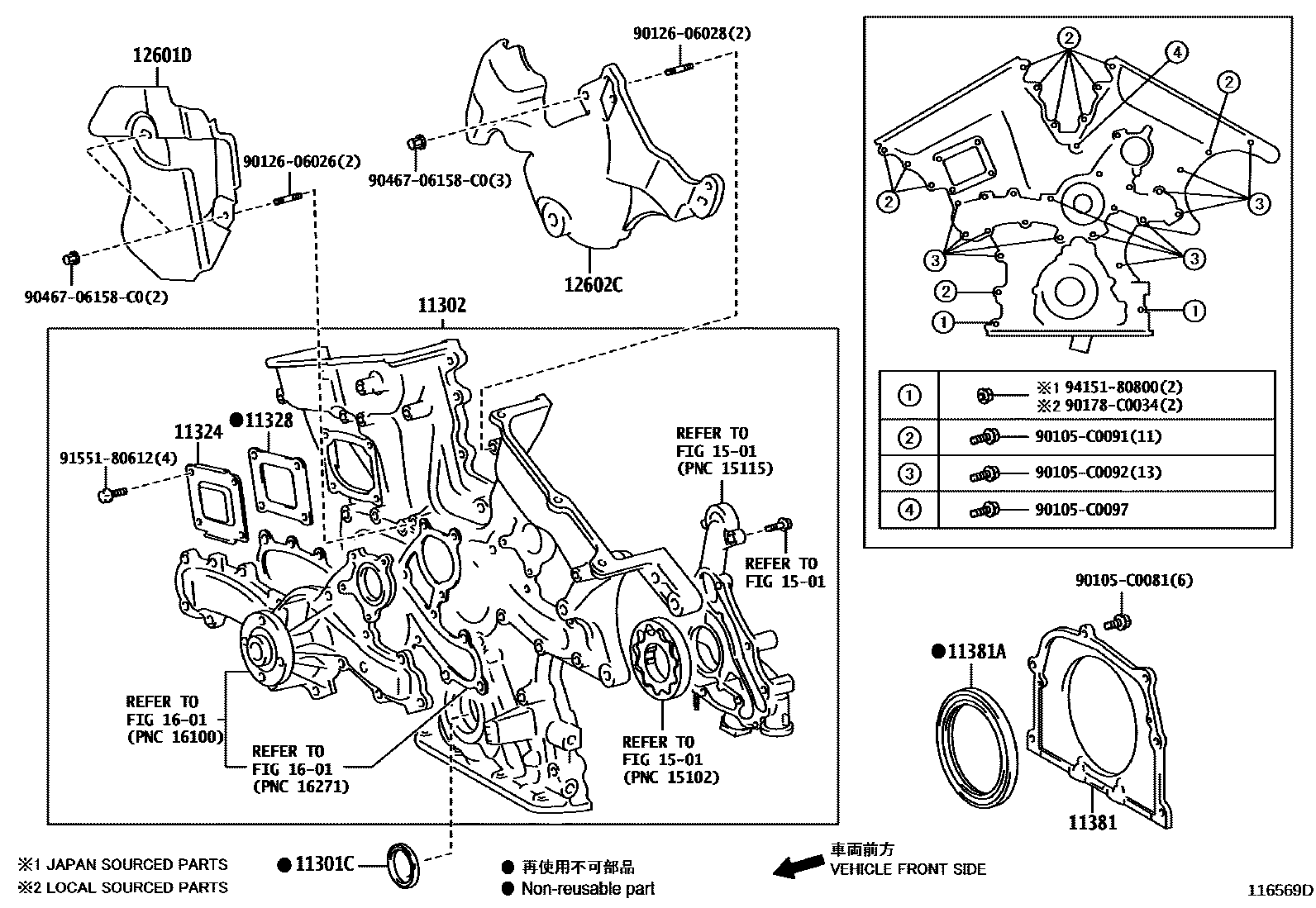

TIMING GEAR COVER & REAR END PLATE

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-C0003i3GRFE,5GRFE..GRX13#201009-201309

main90311-C0034i3GRFE,5GRFE..GRX13#201311

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0P020i3GRFE,5GRFE..GRX13#201009-201107

main11310-0P021i3GRFE,5GRFE..GRX13#201107-201309

11324PLATE, TIMING CHAIN COVER

main11324-31020i3GRFE,5GRFE..GRX13#201009-201309

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0P030i3GRFE,5GRFE..GRX13#201009-201309

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0P010i3GRFE,5GRFE..GRX13#201009-201309

main11381-0P011i3GRFE,5GRFE..GRX13#201401

11381ASEAL, ENGINE REAR OIL

main90311-C0004i3GRFE,5GRFE..GRX13#201009-201309

12601DCOVER, ENGINE, NO.1

main12601-31020i3GRFE,5GRFE..GRX13#201009-201309

12602CCOVER, ENGINE, NO.2

main12602-0P010i3GRFE,5GRFE..GRX13#201009-201206

main12602-0P011i3GRFE,5GRFE..GRX13#201206-201309

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1601WATER PUMP

→ Go to FIG 16-01

90105C0081

main90105-C0081

90105C0091

main90105-C0091

90105C0092

main90105-C0092

90105C0097

main90105-C0097

9012606026

main90126-06026

9012606028

main90126-06028

90178C0034

main90178-C0034

9046706158C0

main90467-06158C0

9155180612

main91551-80612

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
