HORN

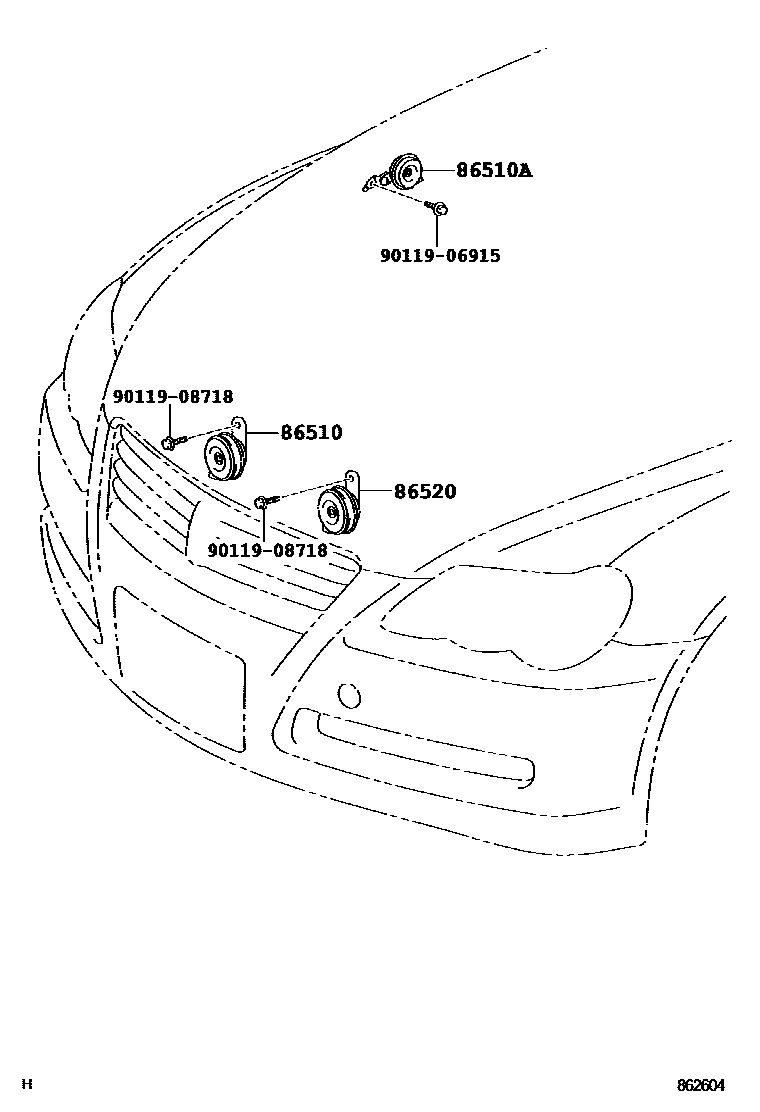

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-0P010i200510-200611

main86510-0P011i200611-200710

86510AHORN ASSY, SECURITY

main86560-22010i200510-200710

86520HORN ASSY, LOW PITCHED

main86520-0P010i200510-200611

main86520-0P011i200611-200710

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
