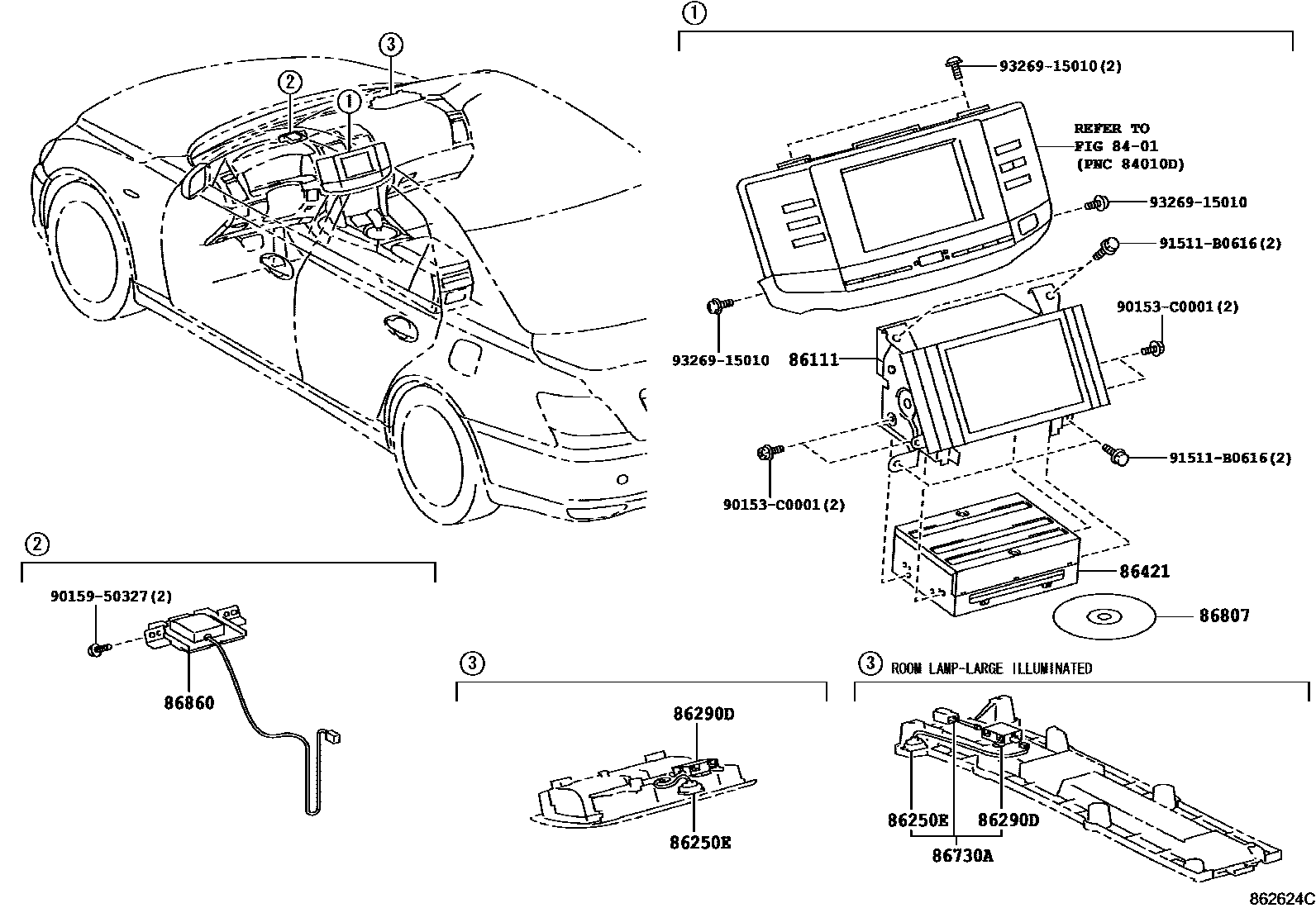

NAVIGATION & FRONT MONITOR DISPLAY

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86111MULTI-DISPLAY

main86111-22060iGRX121; GRX122..25V200710-201004

PANASONIC; PANASONIC,EMV & NAVIGATION SYSTEM-WITH(DVD)

main86111-22061iGRX121; GRX122..25V201005

PANASONIC; PANASONIC,EMV & NAVIGATION SYSTEM-WITH(DVD)

86250EMICROPHONE ASSY, AMPLIFIER

main86250-47020iGRX121; GRX122..25V200710-201009

EMV & NAVIGATION SYSTEM-WITH(DVD)

86290DAMPLIFIER ASSY, MICROPHONE

main86290-47010iGRX121; GRX122..25V200710-201009

EMV & NAVIGATION SYSTEM-WITH(DVD)

86421BOARD, NAVIGATION MODULE

main86421-30030iGRX121; GRX122..25V200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

86730AMICROPHONE ASSY, TELEPHONE

main86730-22030iGRX12#..25V,30V200510-200710

ROOM LAMP-LARGE ILLUMINATED&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

86807DISC KIT, CD-ROM

main86807-0W023iGRX121; GRX122..25V200710-200804

EMV & NAVIGATION SYSTEM-WITH(DVD)

main86807-0W024iGRX121; GRX122..25V200805-200904

EMV & NAVIGATION SYSTEM-WITH(DVD)

main86807-0W025iGRX121; GRX122..25V200905-200909

EMV & NAVIGATION SYSTEM-WITH(DVD)

main86807-0W026iGRX121; GRX122..25V200910-201003

EMV & NAVIGATION SYSTEM-WITH(DVD)

main86807-0W027iGRX121; GRX122..25V201004

EMV & NAVIGATION SYSTEM-WITH(DVD)

main86807-0N013iGRX12#..25V,30V200510-200602

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

main86807-0W021iGRX12#..25V,30V200603-200607

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

main86807-0W022iGRX12#..25V,30V200608-200707

EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION SYSTEM)

86860ANTENNA ASSY, NAVIGATION

main86860-22060iGRX121; GRX122..25V200710

EMV & NAVIGATION SYSTEM-WITH(DVD)

90153C0001

main90153-C0001

9015950327

main90159-50327

91511B0616

main91511-B0616

9326915010

main93269-15010

12 parts on this diagram · 1 diagram in section
