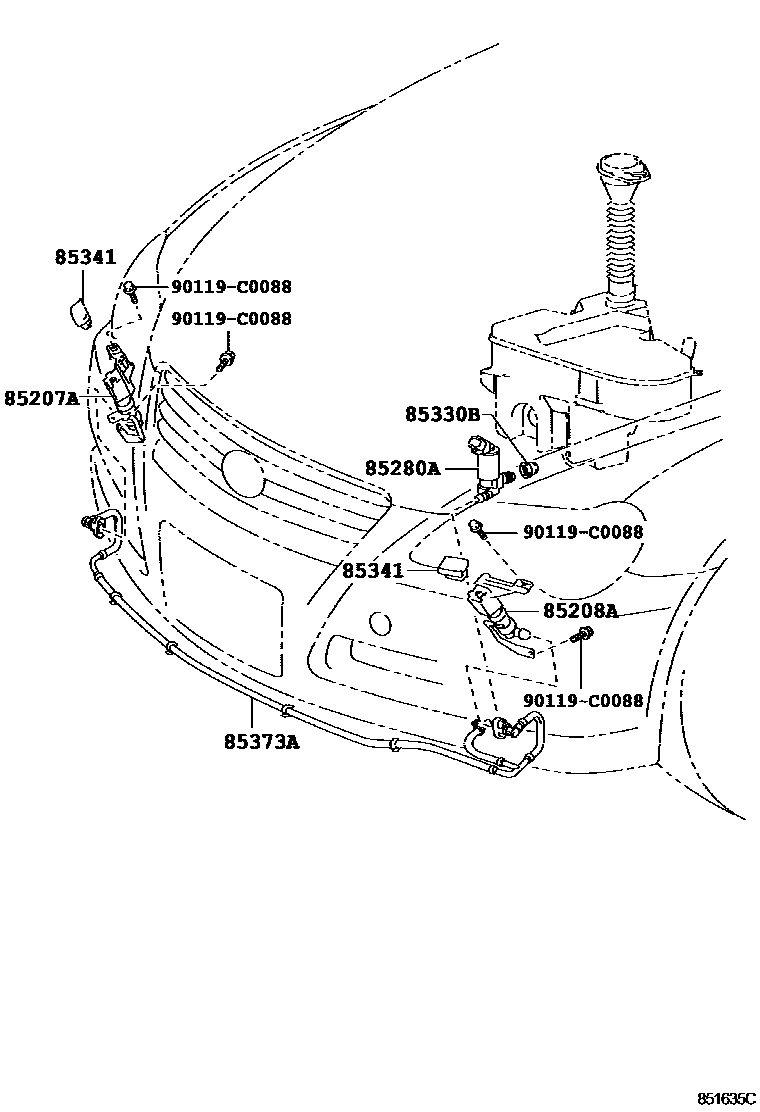

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
SPORT PACKAGE
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
2.5S SPECIAL VERSION
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
2.5S SPECIAL VERSION
85330BBUSH, HEADLAMP CLEANER WASHER JAR
2.5S SPECIAL VERSION
85341NOZZLE, HEADLAMP CLEANER WASHER
2.5S SPECIAL VERSION,WHITE PEARL CS.,062,RH; WHITE PEARL CS.,062,RH
SILVER ME.,1F7,RH; SPORT PACKAGE,SILVER ME.,1F7,RH
2.5S SPECIAL VERSION,BLACK,202,RH; BLACK,202,RH
DK. RED M.M.,3Q3,RH; SPORT PACKAGE,DK. RED M.M.,3Q3,RH
2.5S SPECIAL VERSION,BEIGE ME.,4R4,RH; BEIGE ME.,4R4,RH
SPORT PACKAGE,TURQUOISE M.M.,776,RH; TURQUOISE M.M.,776,RH
2.5S SPECIAL VERSION,DARK BLUE MC.,8P8,RH; DARK BLUE MC.,8P8,RH
SPORT PACKAGE,WHITE PEARL CS.,062,LH; WHITE PEARL CS.,062,LH
SILVER ME.,1F7,LH; SPORT PACKAGE,SILVER ME.,1F7,LH
2.5S SPECIAL VERSION,BLACK,202,LH; BLACK,202,LH
2.5S SPECIAL VERSION,DK. RED M.M.,3Q3,LH; DK. RED M.M.,3Q3,LH
2.5S SPECIAL VERSION,BEIGE ME.,4R4,LH; BEIGE ME.,4R4,LH
SPORT PACKAGE,TURQUOISE M.M.,776,LH; TURQUOISE M.M.,776,LH
2.5S SPECIAL VERSION,DARK BLUE MC.,8P8,LH; DARK BLUE MC.,8P8,LH
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
2.5S SPECIAL VERSION
90119C0088
main90119-C0088
7 parts on this diagram · 1 diagram in section
