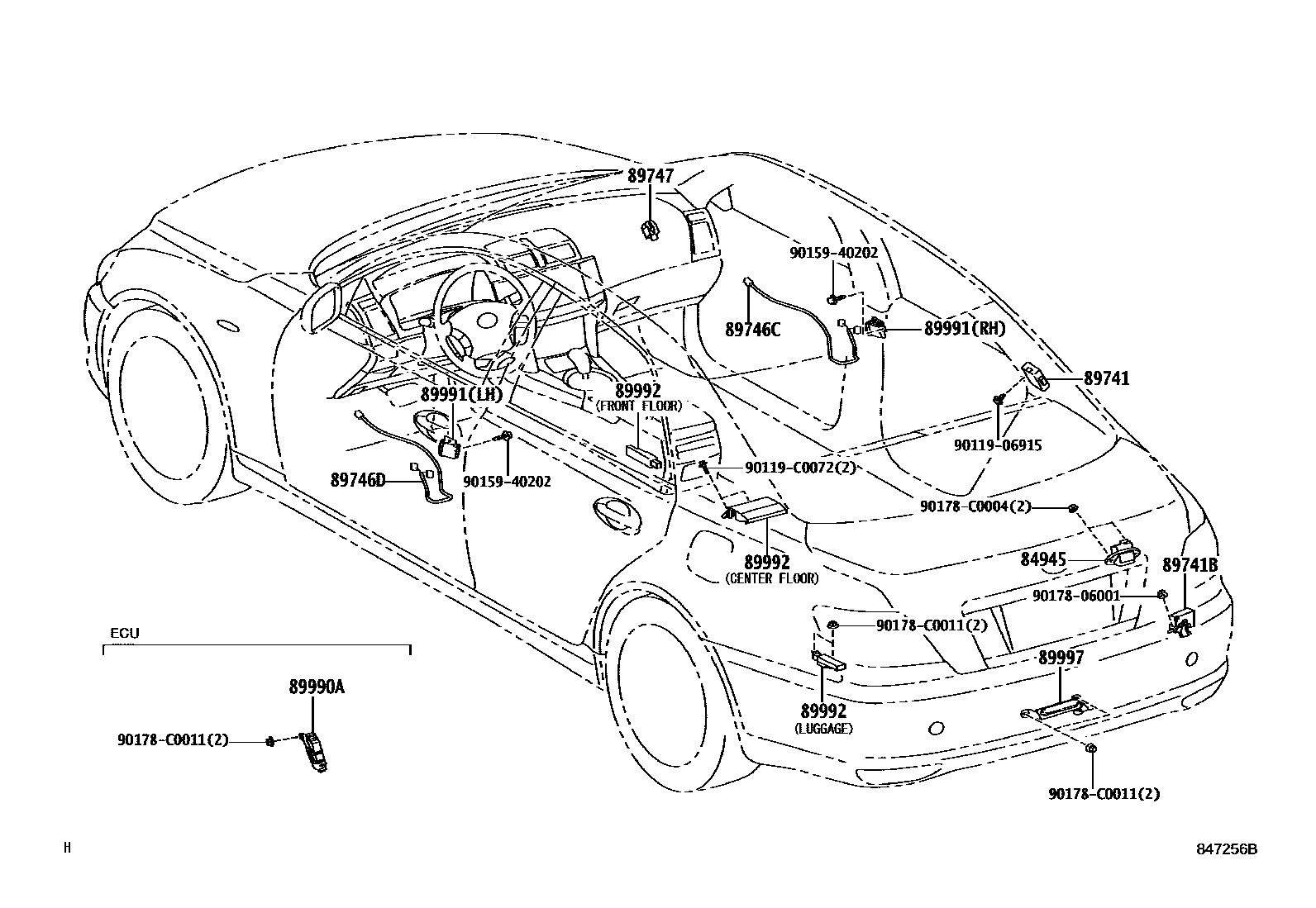

WIRELESS DOOR LOCK

0001 1 0003 1

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-0P010iGRX12#..25V,30V200710

89741RECEIVER, DOOR CONTROL

main89740-22030iGRX121200510-200710

main89741-22130iGRX122200510-200710

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-22040iGRX12#..25V,30V200710

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-0P010iGRX121200510-200710

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-0P020iGRX121200510-200710

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iGRX12#200510-200710

89990ACOMPUTER ASSY, SMART KEY

main89990-22020iGRX121200510-200710

main89990-22021iGRX12#..25V,30V200710-201003

main89990-22022iGRX12#..25V,30V201004

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iGRX12#..25V,30V200710-201009

RH

main89991-30050iGRX12#..25V,30V200710-201009

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-0P010iGRX12#..25V,30V200710

FRONT FLOOR

main89992-0P020iGRX121200510-200710

CENTER FLOOR

main89992-0P030iGRX12#..25V,30V200710

LUGGAGE

89997ANTENNA, ELECTRICAL KEY

main89997-41010iGRX12#..25V,30V200710

9011906915

main90119-06915

90119C0072

main90119-C0072

9015940202

main90159-40202

9017806001

main90178-06001

90178C0004

main90178-C0004

90178C0011

main90178-C0011
