ABS & VSC

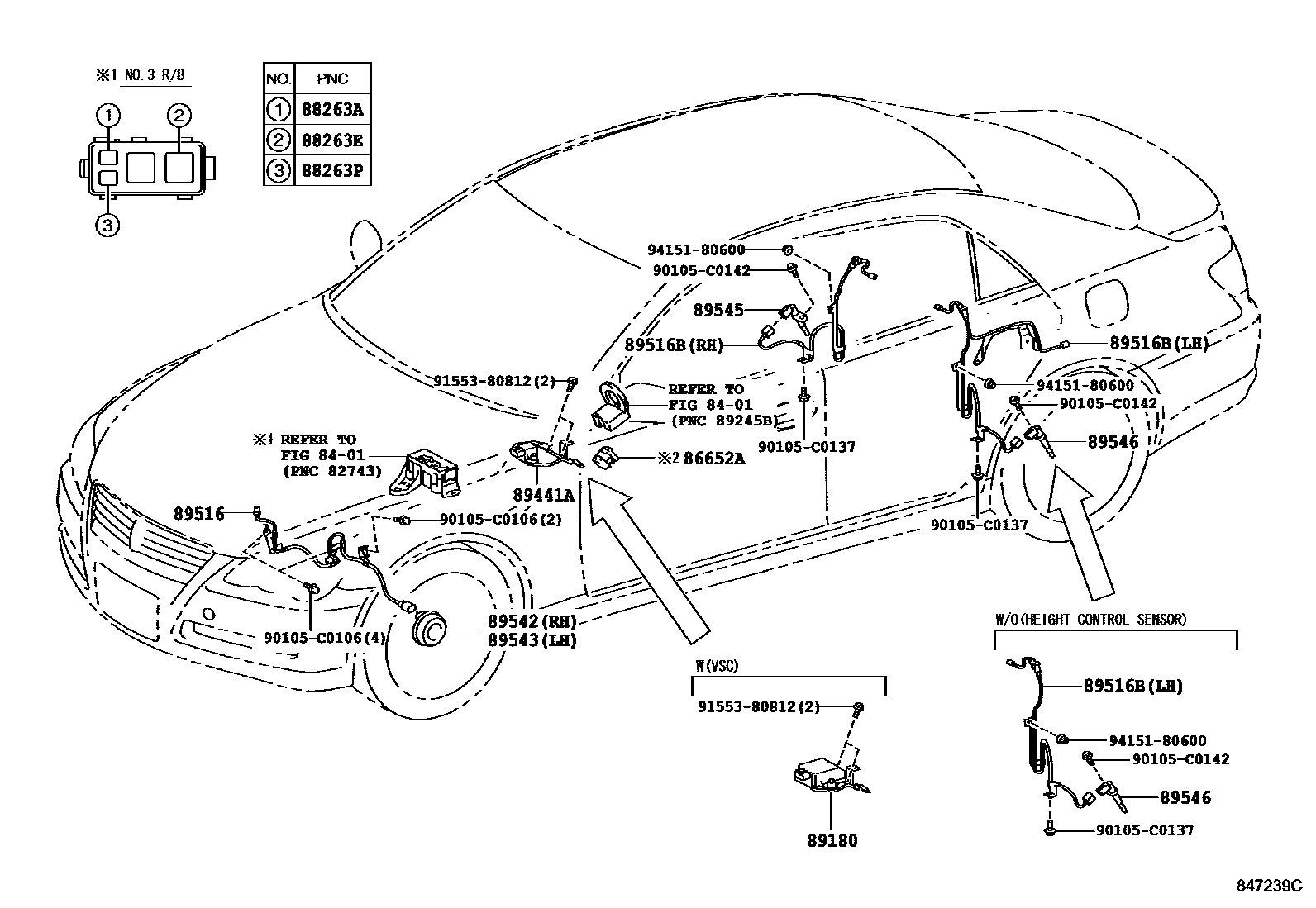

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-48010i200510-200710

main86652-50010i200710

SPORT PACKAGE

88263ARELAY, SKID CONTROL

main88263-32070i200510-200710

88263ERELAY, SKID CONTROL NO.2

main88263-21010i200710-201009

SPORT PACKAGE

88263PRELAY, STOP LAMP CONTROL

main90987-04004i200710-200904

SPORT PACKAGE

main90987-T4001i200905-201009

2.5S SPECIAL MOON ROOF & AVX VERSION; 2.5S SPECIAL MOON ROOF VERSION; MEMORIAL PACKAGE; SPORT PACKAGE

89180SENSOR ASSY, YAWRATE

main89180-22020i200710

SPORT PACKAGE

89441ASENSOR, DECELERATION

main89440-22040i200510-200710

89516WIRE, SKID CONTROL SENSOR

main89516-0N010i200510-200710

RH

main89516-0N020i200510-200710

LH

89516BWIRE, SKID CONTROL SENSOR

main89516-0P020supersedes 89516-0P010i200710

RH

main89516-0P030i200510-200710

2.5S SPECIAL VERSION,LH; LH

89542SENSOR, SPEED, FRONT RH

main89542-30260i200510-200710

89543SENSOR, SPEED, FRONT LH

main89543-30260i200510-200710

89545SENSOR, SPEED, REAR RH

main89545-30070i200510-200710

89546SENSOR, SPEED, REAR LH

main89546-30070i200510-200710

90105C0106

main90105-C0106

90105C0137

main90105-C0137

90105C0142

main90105-C0142

9155380812

main91553-80812

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
