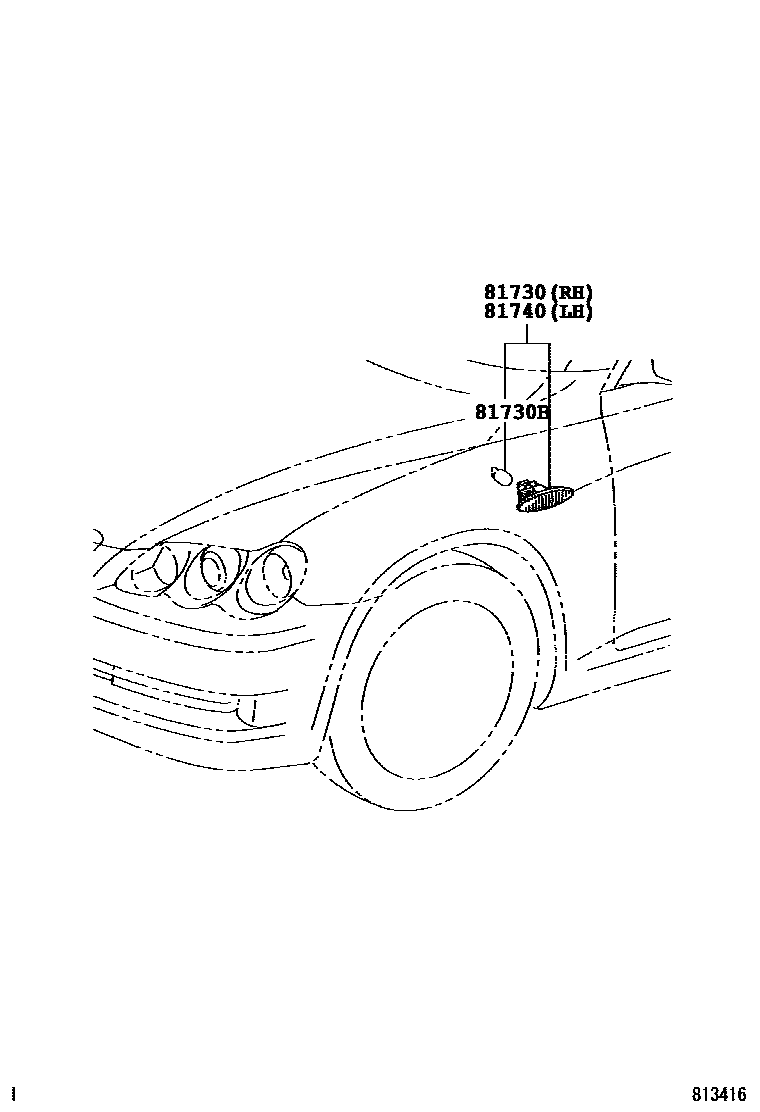

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0P010iGRX12#200510-200610

main81730-0P011iGRX12#200611-200710

main81730-22180iGRX12#200710-201009

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-15012×2iGRX12#200510-200610

12V 5W

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-0P010iGRX12#200510-200610

main81730-0P011iGRX12#200611-200710

main81740-22180iGRX12#200710-201009

3 parts on this diagram · 2 diagrams in section
