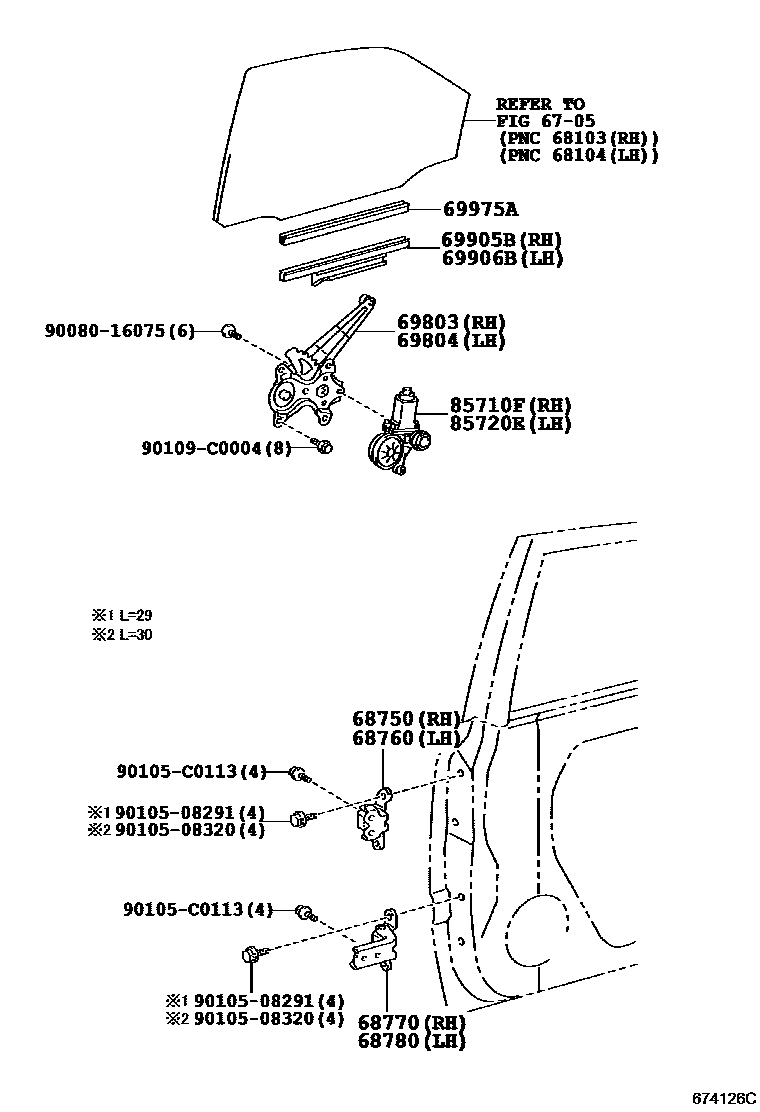

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0P010iGRX12#200510-200610

main68750-0P011iGRX12#200611-200710

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0P010iGRX12#200510-200610

main68760-0P011iGRX12#200611-200710

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D020iGRX12#200510-200610

main68770-0D021iGRX12#200611-200710

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D020iGRX12#200510-200610

main68780-0D021iGRX12#200611-200710

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-0N010iGRX12#200710

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-0N010iGRX12#200510-200710

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iGRX12#200510-200710

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iGRX12#200510-200710

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22030×2iGRX12#200606-200710

main69975-60040×2iGRX12#200510-200605

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0N010iGRX12#200510-200710

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0N010iGRX12#200510-200710

9008016075

main90080-16075

9010508291

main90105-08291

9010508320

main90105-08320

90105C0113

main90105-C0113

90109C0004

main90109-C0004

17 parts on this diagram · 1 diagram in section
