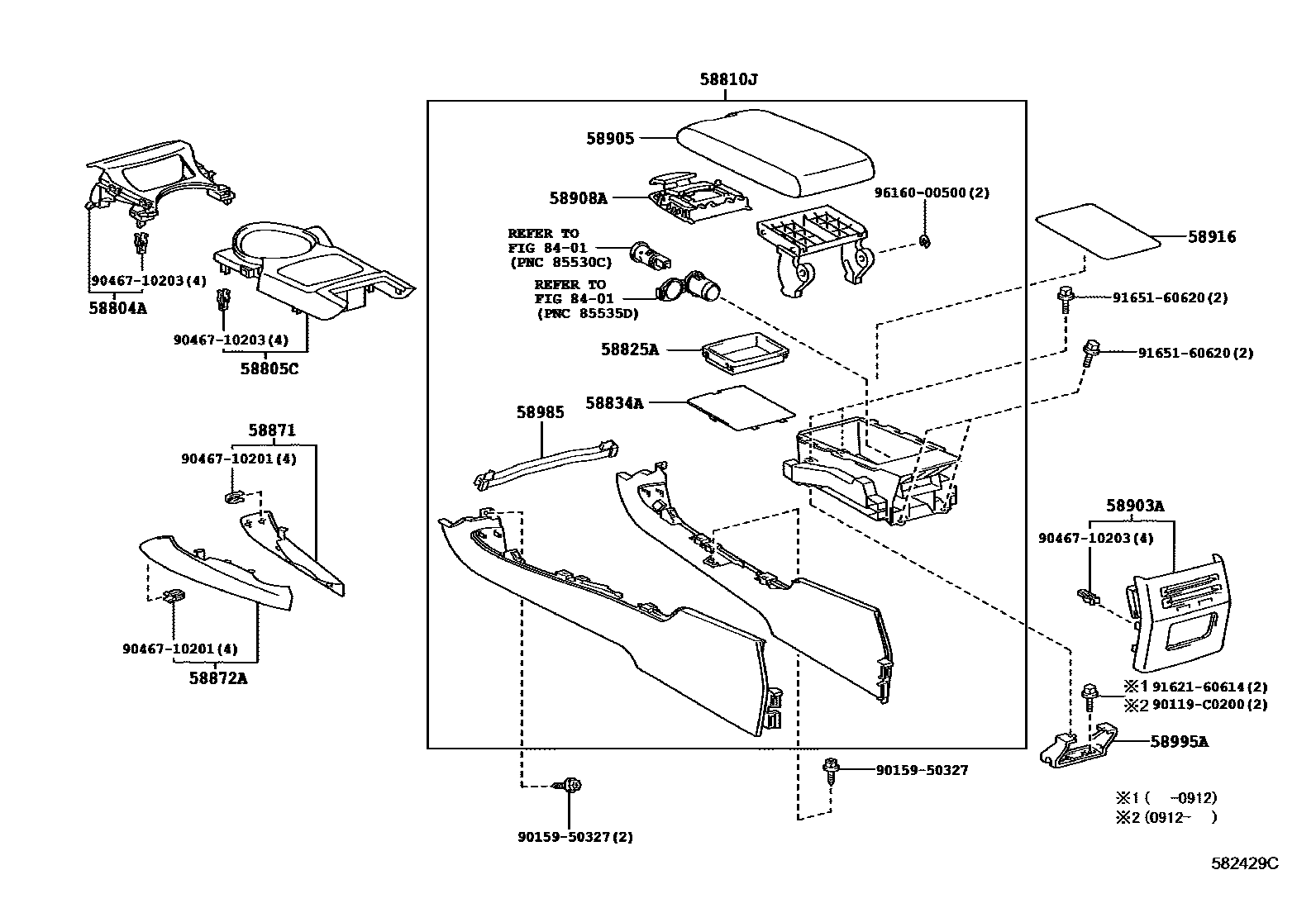

CONSOLE BOX & BRACKET
58804APANEL SUB-ASSY, CONSOLE, UPPER
DK.RED,TRIM0#,2#
DK.RED,TRIM2#
LT.BROWN,TRIM0#
SPECIAL MOON ROOF VERSION,GRAY,TRIM2#
GRAY,TRIM2#
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
LT.BROWN,TRIM0#
GRAY,TRIM2#
SPECIAL MOON ROOF VERSION,GRAY,TRIM2#
58810JBOX ASSY, CONSOLE
58825APOCKET, CONSOLE BOX
58834ACOVER, CONSOLE, LOWER
58871CUSHION, CONSOLE BOX
BLACK,TRIM0#,2#
SPORT PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58872ACUSHION, CONSOLE BOX, NO.2
BLACK,TRIM0#,2#
SPORT PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
58903APANEL SUB-ASSY, CONSOLE REAR END
IVORY,TRIM0#
BLACK,TRIM2#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
IVORY,TRIM0#
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58916MAT, BOX BOTTOM
58985RETAINER, CONSOLE BOX
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8401
90119C0200
main90119-C0200
9015950327
main90159-50327
9046710201
main90467-10201
9046710203
main90467-10203
9162160614
main91621-60614
9165160620
main91651-60620
9616000500
main96160-00500
21 parts on this diagram · 1 diagram in section
