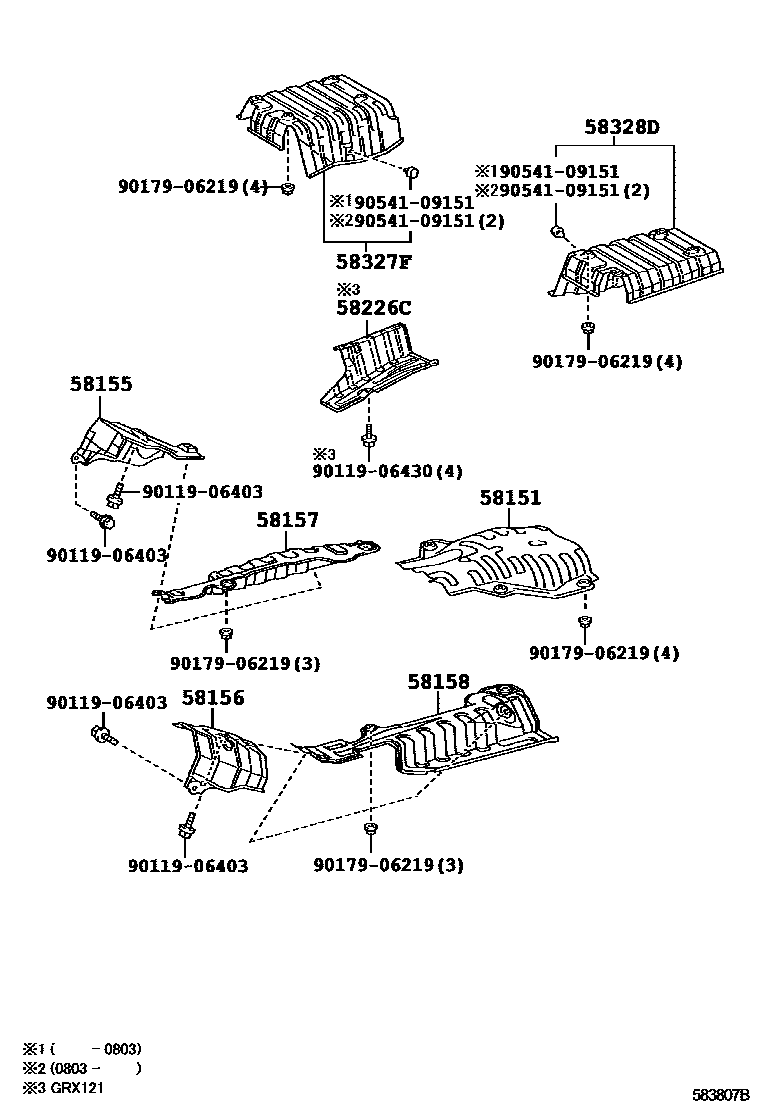

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30130iGRX12#200510-200710

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22100iGRX12#200510-200710

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRX12#200510-200710

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iGRX12#200510-200710

main58157-30072iGRX12#201006

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGRX12#200510-200710

main58158-30062iGRX12#201006

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-30030iGRX121200510-200710

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-30052iGRX12#200510-200710

main58327-30053iGRX12#200803

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30033iGRX12#200510-200710

main58328-30034iGRX12#200803

9011906403

main90119-06403

9011906430

main90119-06430

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 1 diagram in section
