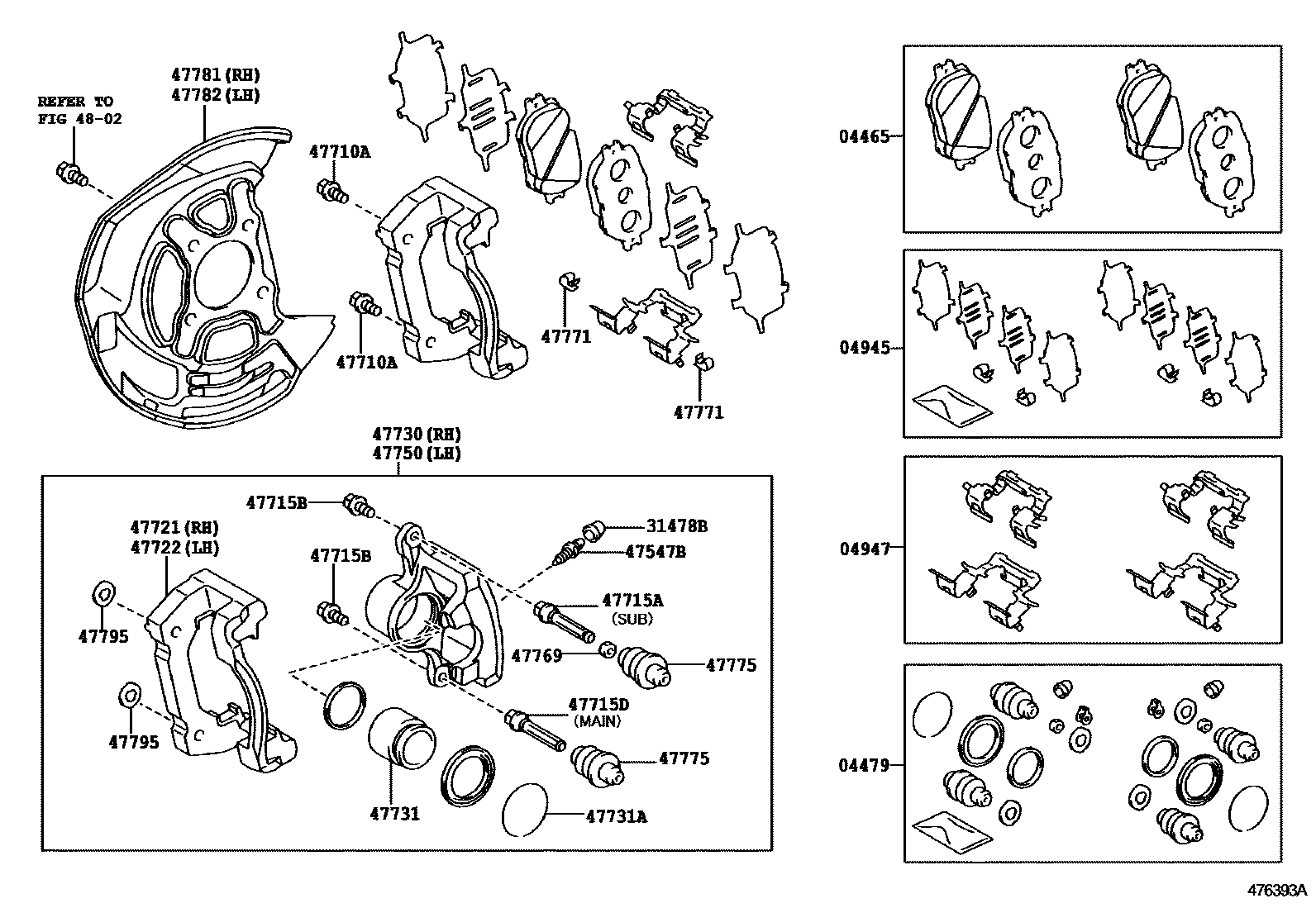

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-30330iGRX12#200510-200710

MARK NBK D6893H

sub04465-30480

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0N030iGRX12#200510-200605

main04478-0N031iGRX12#200605-200710

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0P010iGRX12#200510-200710

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30140iGRX12#200510-200710

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010×2iGRX12#200510-200710

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iGRX12#200510-200710

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-K1240×4iGRX12#200510-200710

*12-1.25PX40-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0P010×2iGRX12#200510-200710

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iGRX12#200510-200710

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0P010×2iGRX12#200510-200710

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0P010iGRX12#200510-200710

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-0P010iGRX12#200510-200710

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0P010iGRX12#200510-200710

47731PISTON, FRONT DISC BRAKE

main47731-33070×2iGRX12#200510-200710

sub47731-30570

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iGRX12#200510-200710

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0P010iGRX12#200510-200710

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0P010×2iGRX12#200510-200710

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090×4iGRX12#200510-200710

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iGRX12#200510-200605

main47775-50010×4iGRX12#200605-200710

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0N010iGRX12#200510-200710

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0N010iGRX12#200510-200710

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520×4iGRX12#200510-200710

4802

23 parts on this diagram · 1 diagram in section
